INSTALLATION GUIDE
PAGE
13
10-DEGREE BALLASTED RACKING SYSTEM
MID SUPPORT KIT INSTALLATION
The Mid Support Kit is a non-standard item and only used in heavy load conditions or with light-duty panels. The design team at Unirac will indicate use when
required.

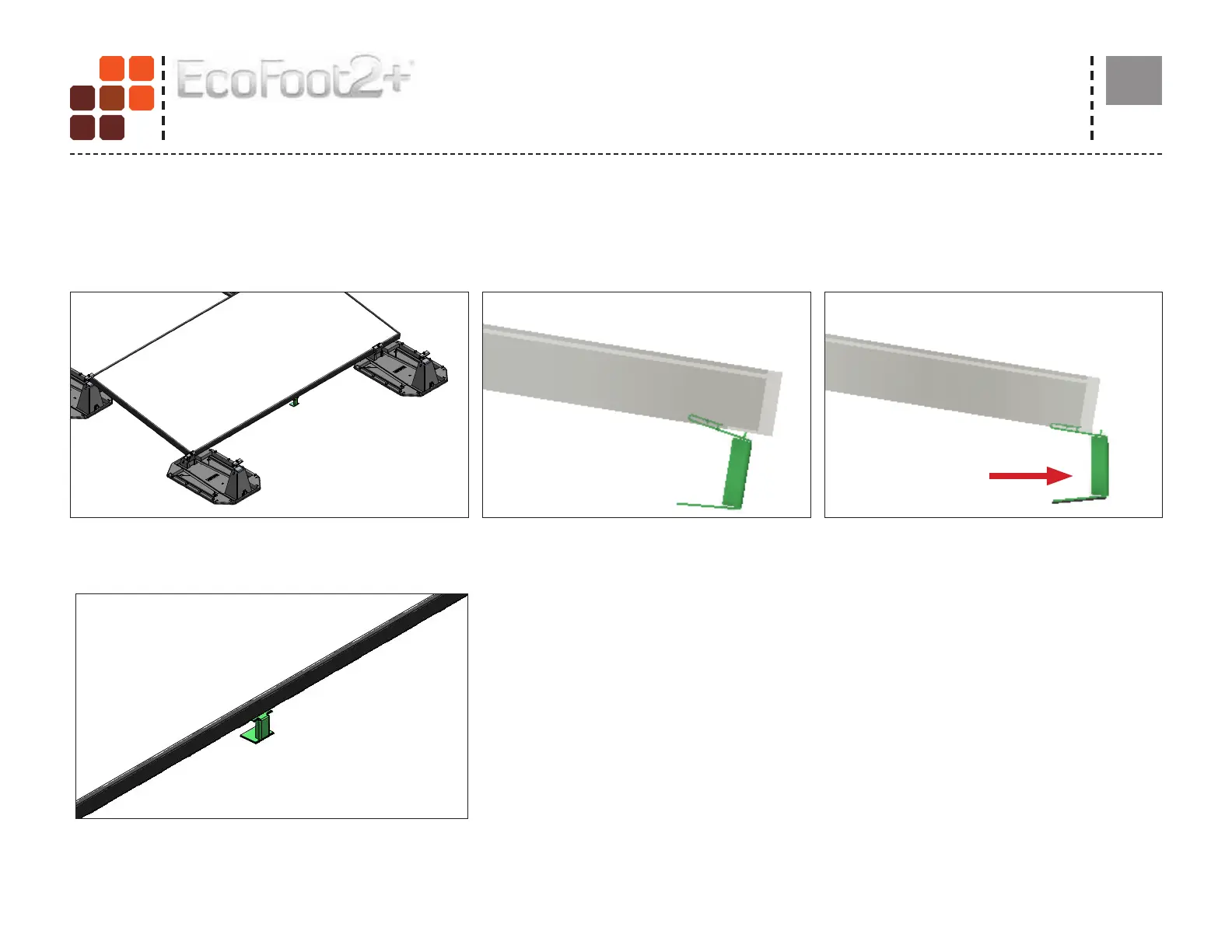

INSTALLING LOWER MID-SUPPORT
Locate module center point +/-1” using PV module cell lines.
Ensure the Mid Support positioned at on the roof.
Slide the Lower Mid-Support slots onto module
frame.
Pull outwards to sit at on the roof.
1
MID SUPPORT INSTALLATION
