INSTALLATION GUIDE
PAGE
14
10-DEGREE BALLASTED RACKING SYSTEM
INSTALLING UPPER MID-SUPPORT

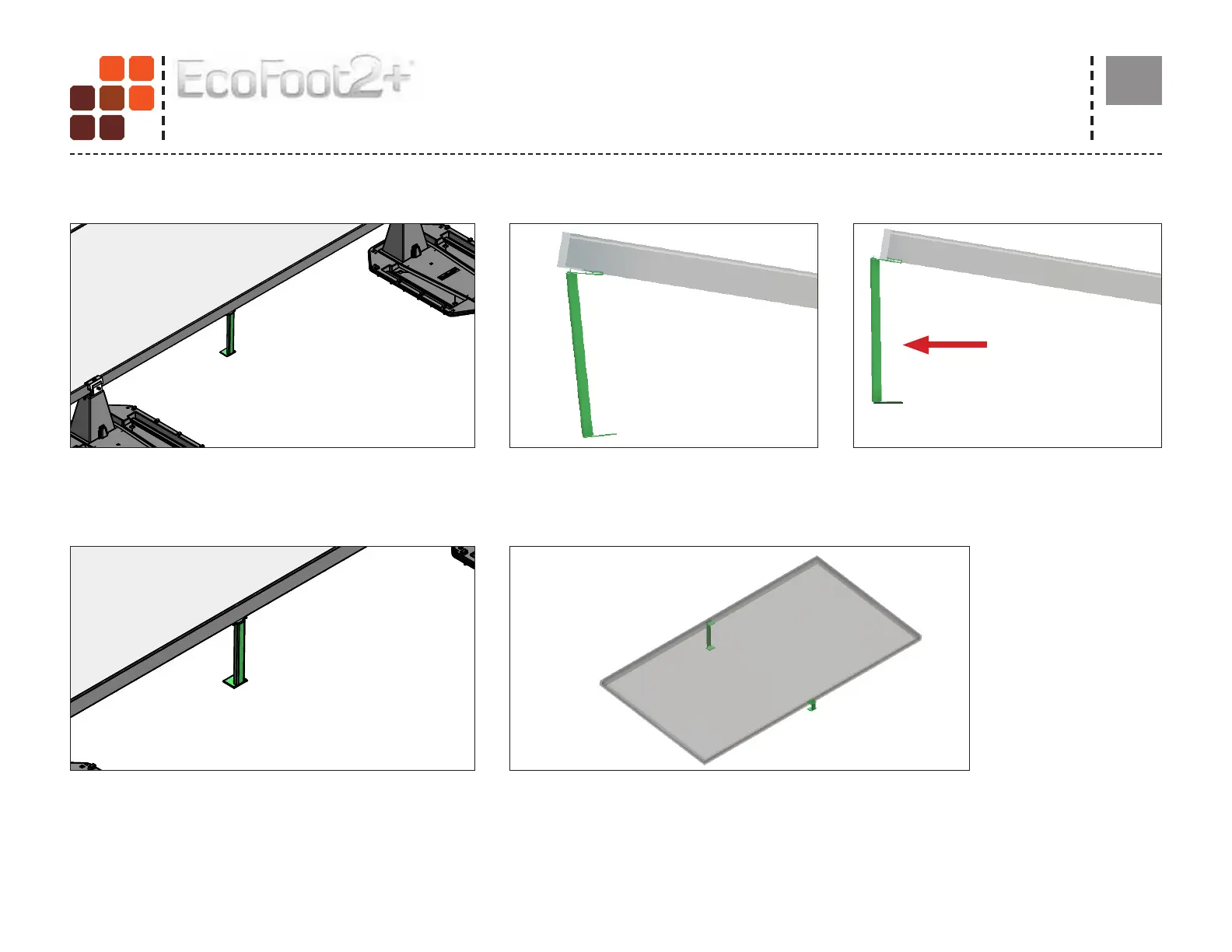

Typical view of Mid supports after installation
Locate module center point +/-1” using PV module cell lines.
Ensure the Mid Support positioned at on the roof.
Slide the Lower Mid-Support slots onto
module frame.
Pull outwards to sit at on the roof.
MID SUPPORT INSTALLATION
