INSTALLATION GUIDE
PAGE
17
10-DEGREE BALLASTED RACKING SYSTEM
ATTACHMENT WITH STRUT
Strut runs North/South under PV modules, near the center of the module, placed as indicated on array layout. Strut does not connect to EcoFoot2 Bases. Strut is
attached to Roof Attachment, low or south edge of PV modules and Wind Deector.

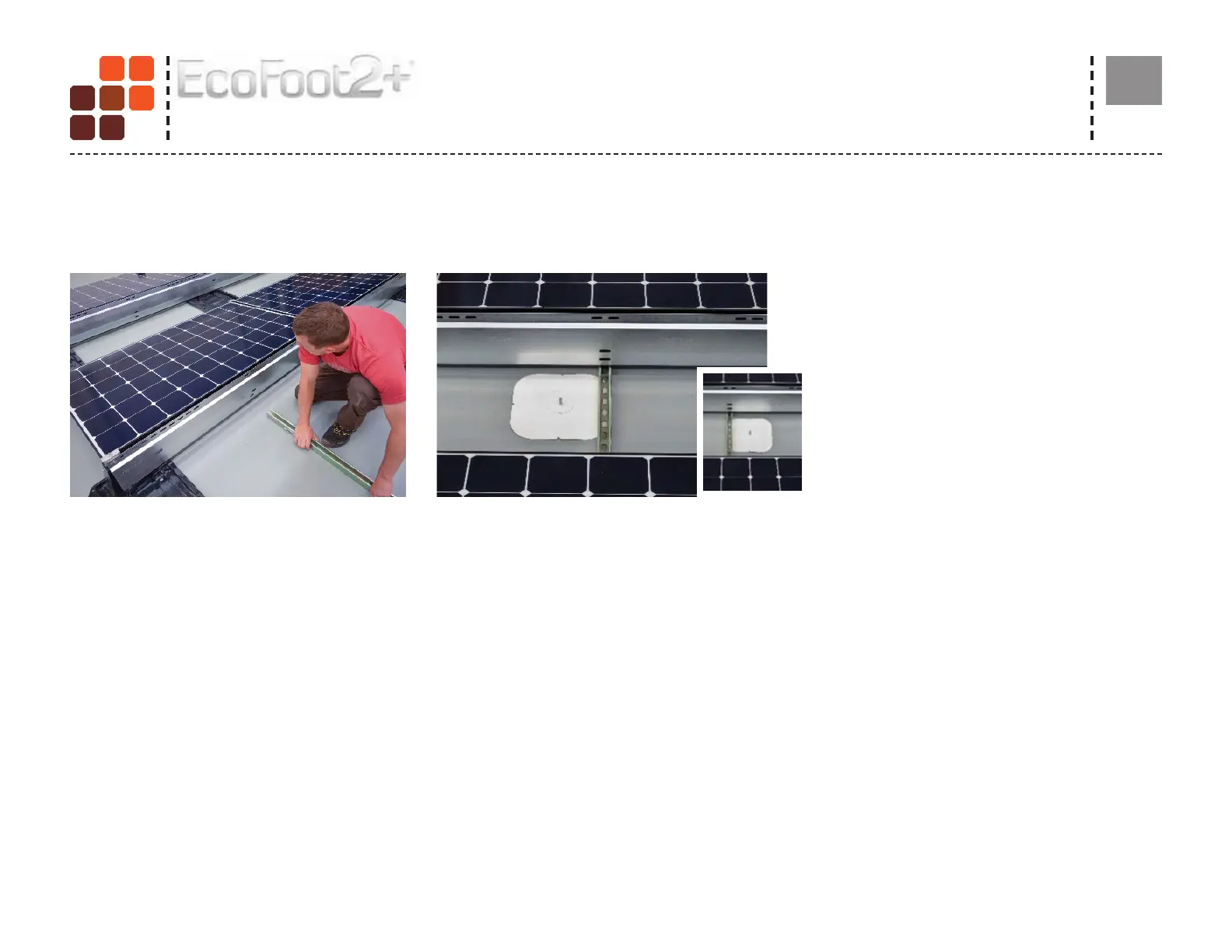

STEP 1:
Position Strut under and near center of PV module
in line with center slots on Wind Deector.
Position Strut throughout the array as shown on
array design layout.
STEP 2:
Determine which side of Strut you will install Roof
Attachment.
Mid supports will be installed slightly off center
and opposite of roof attachment to allow room for
roof attachment hardware.
ROOF ATTACHMENT WITH STRUT
