INSTALLATION GUIDE
PAGE
18
10-DEGREE BALLASTED RACKING SYSTEM

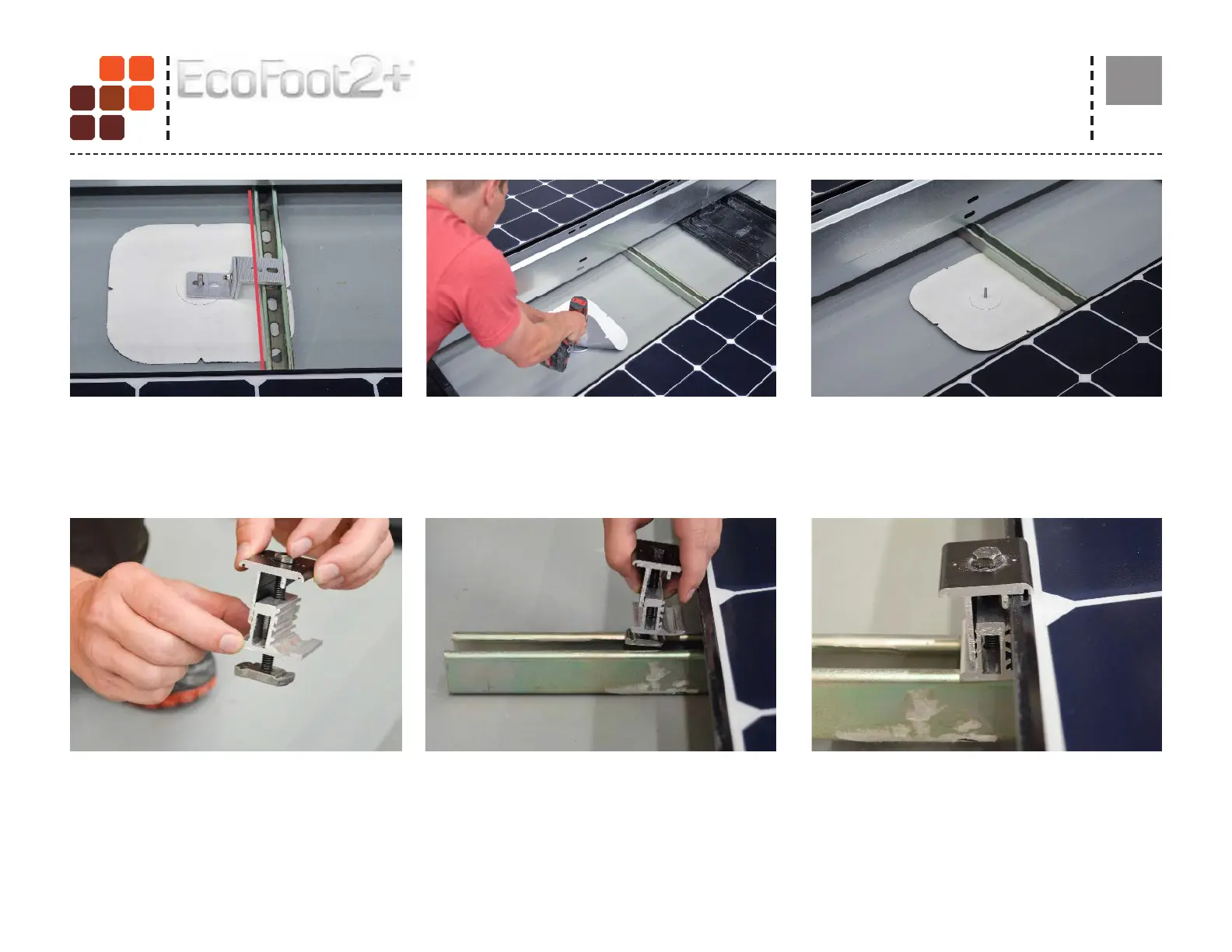

STEP 4:
Slide Strut away and install Roof Attachment per
manufacturer’s instructions.
STEP 6:
Assemble Clamp components as shown. Attach
South row Module Clamps onto Strut and
Modules.
STEP 8:
Slide Clamp to Module Frame.
Torque Bolt to 14 ft-lbs.
STEP 7:
Place Strut Nut into Strut channel.
STEP 5:
Slide Strut back into position over Roof Attachment.
ROOF ATTACHMENT WITH STRUT
STEP 3:
Place Roof Attachment within 1.5”- 4” from
attachment-side edge of Strut, illustrated by Red
line.
To Next Page
