P O R T A L T I +
Portal Installation Manual 10
Document #: PTL1001

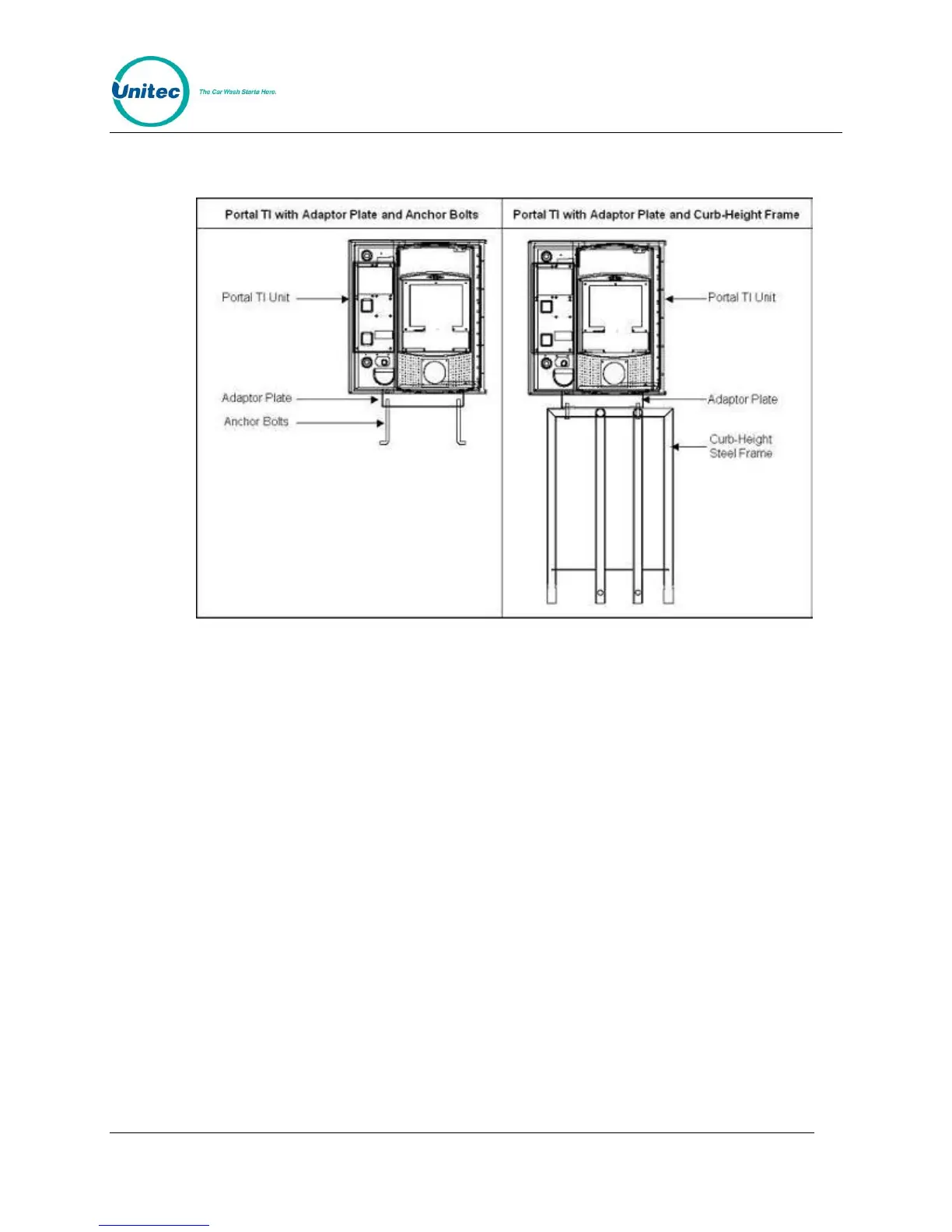

Figure 7. Bricked-In Mounting Options
2.4.2 Positioning the Portal
The adapter plate should be located so its front edge is recessed 4.50” from the front face of
the brick structure (as shown in Figure 8). The adapter plate has (2) sets of mounting holes.
One set is used to install the Portal so its front door will be flush with the brick. The other set
is used to recess the door within the brick. These (2) mounting options and hole patterns are
illustrated in Figure 9 and Figure 10..
Electrical conduits should be extended to the adapter plate and positioned so wiring can be
routed through the rectangular opening in the plate.
