Portal Installation Manual 2
Document #: PTL1001

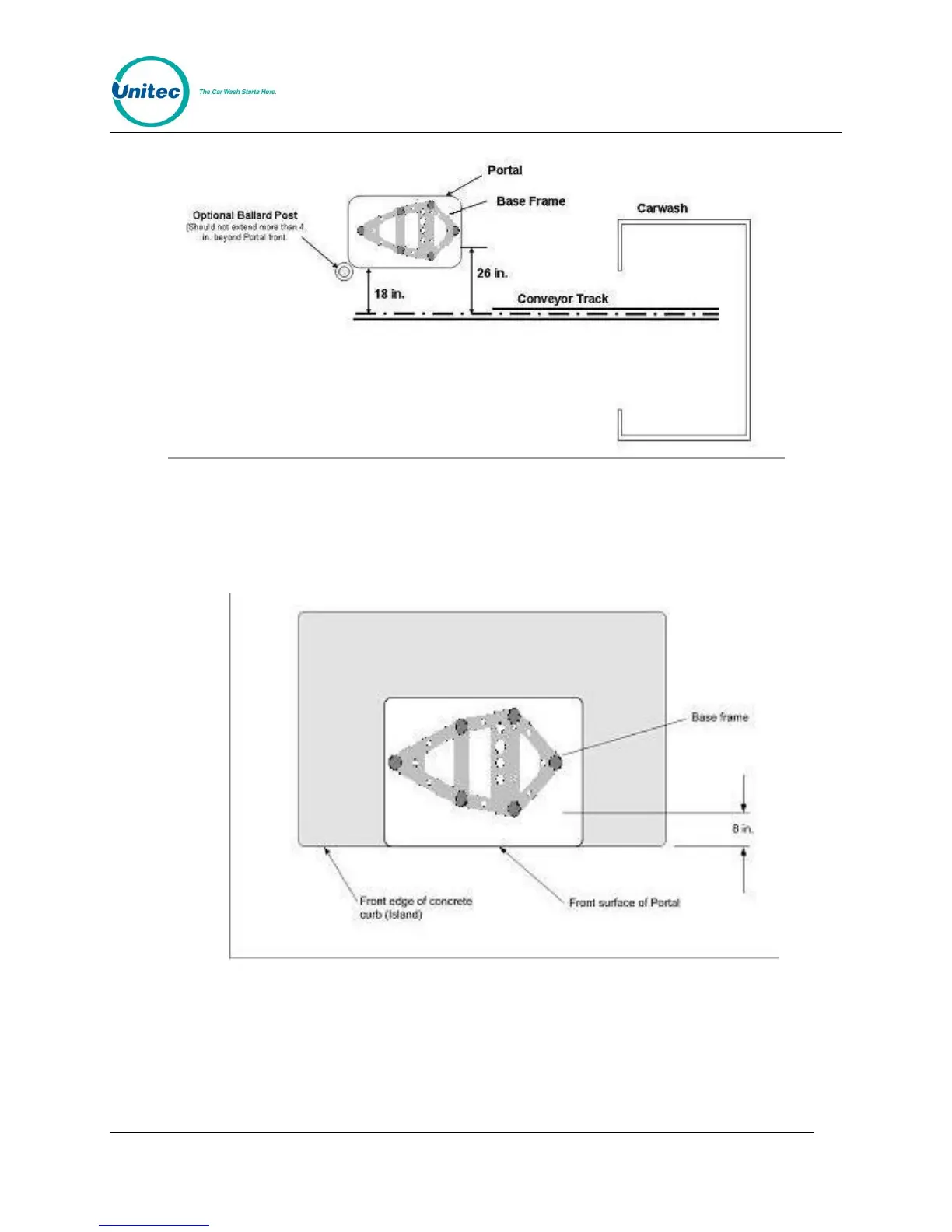

Figure 1. Portal Installation at the Wash Entrance
For curb mount applications, the front surface of the Portal should be even with the edge of
the curb. To achieve this dimension, the base frame should be installed so its leading edge is
8 in. from the edge of the curb as shown in Figure 2.
Figure 2. Frame Location for Curb Mount
1.3.2 Express Wash Applications
Express Exterior sites should be designed to provide 9 ft. wide traffic lanes at the Portals. The
traffic control (or barrier) gate should be located approximately 10 ft. from the center of the
To Next Page
