P O R T A L T I +
Portal Installation Manual 30
Document #: PTL1001
3.9 Camera Connection
The (optional) surveillance camera is attached to the front door of the Portal. The camera is
intended for use with a DVR or similar monitoring device installed at the site. The coaxial
cable routed to the camera is used to connect it to the monitoring device. The coax cable will
need to be terminated with a BNC connector similar to the one shown in Figure 26.

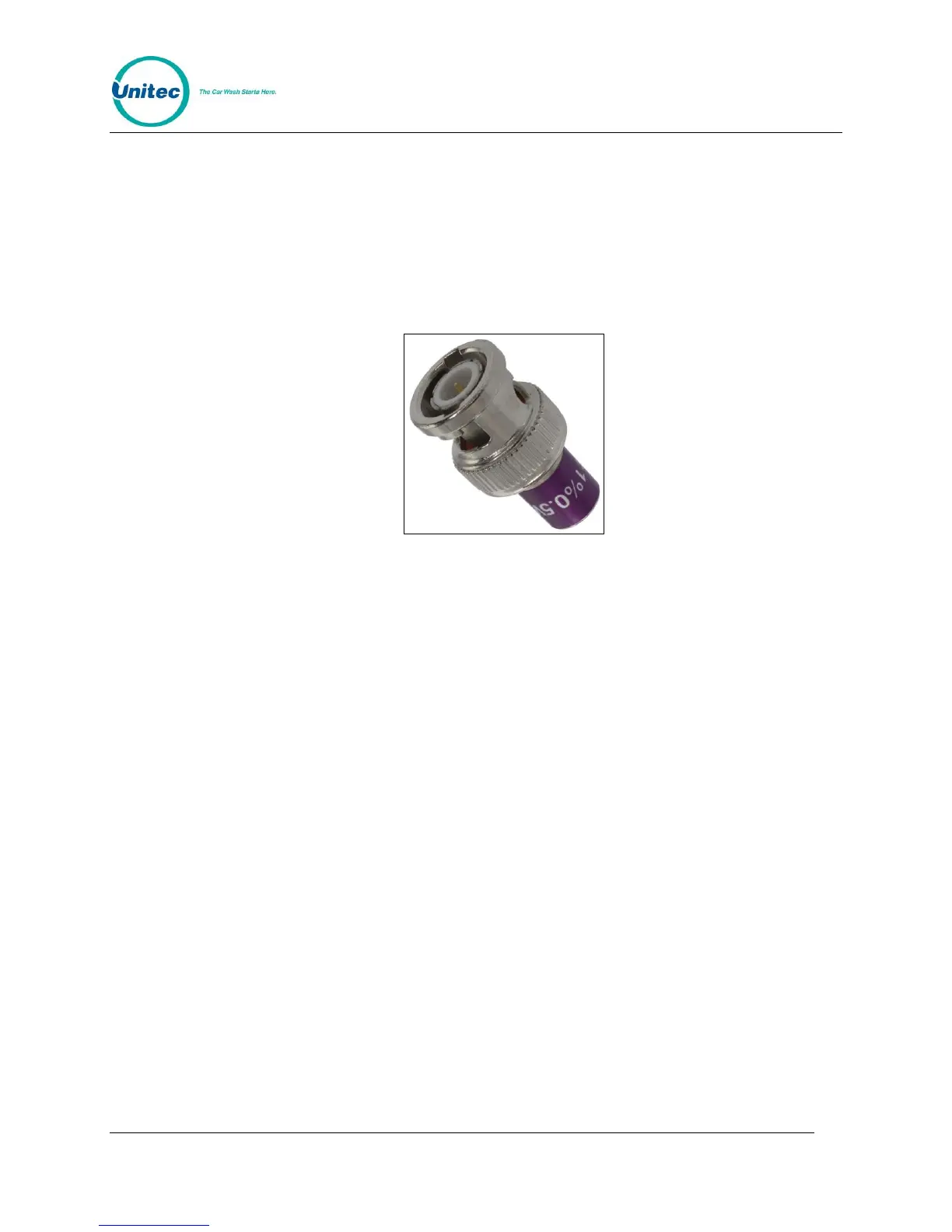

Figure 26. BNC Male Plug for Camera Connection
3.10 Gate Wiring
In multi-lane applications, a Unitec or 3
rd
party gate controller is required. Refer to the
instructions provided with the gate controller for connecting wires between it and the Portal. If
needed, a gate can be used with a single Portal and no gate controller. Refer to the Portal
TI+ CAME Single Gate Installation Manual for instructions on connecting the Portal to the
gate.
3.11 Connecting the Reach Free ID Option
Refer to the installation instructions supplied with this product option.
