Unitech HT630 Product Reference Guide

HT630 Product Reference Guide
Chapter 3 Operation

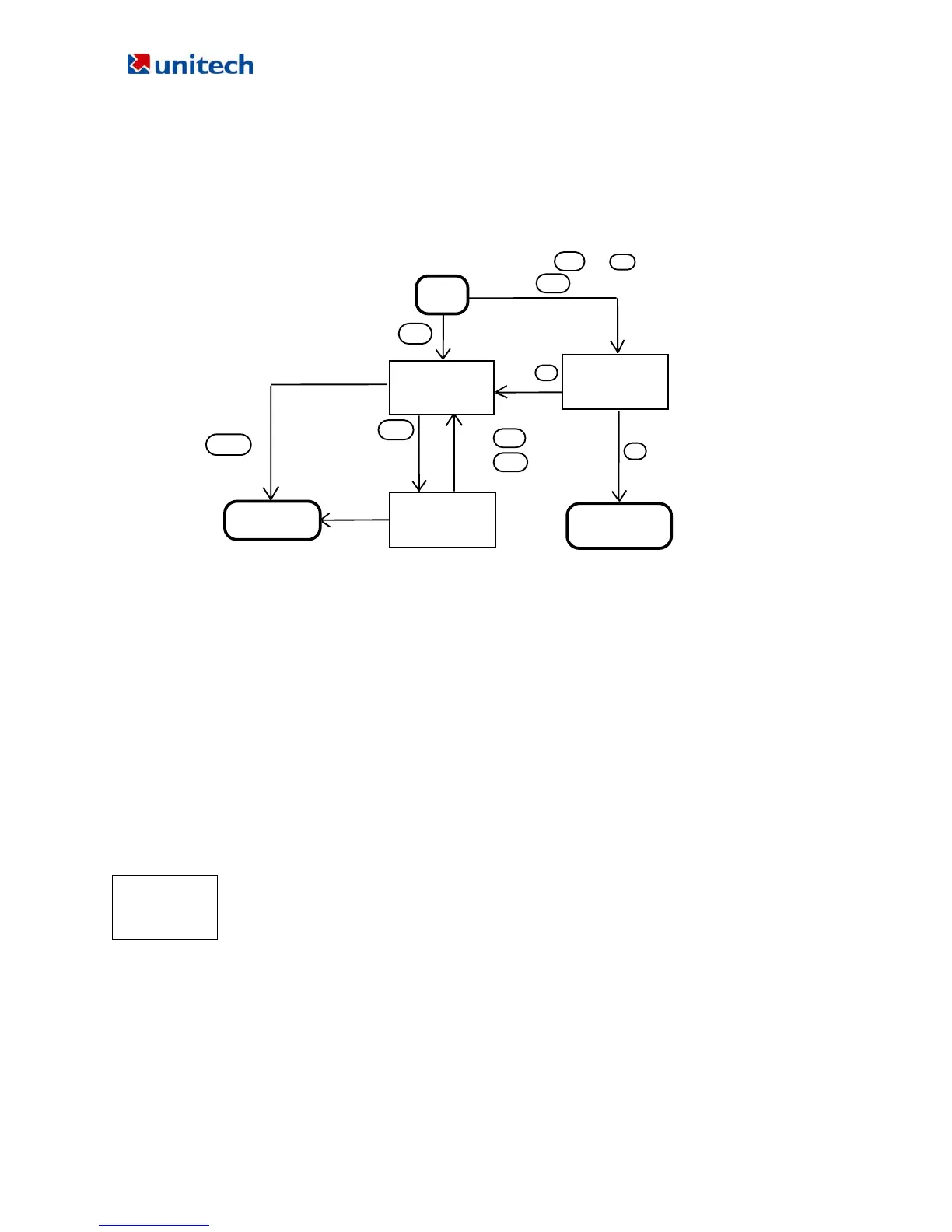

The HT630 is set up several operating modes. The system of terminal may operate in various modes for
different purposes. The figure below shows the operating flow of the terminal. The following diagram
summarized these operating modes to switch between different modes.
press
press
press and hold down
enter
program
then press
press
and keys
CMD
EXIT
ENTER
CMD
then press
PWR
PWR
name
(for two
press
2
press
1
seconds)
OFF
SUPERVISOR
mode
1.SUPERVISOR
2.WARM START
APPLICATION
mode
3.COLD START
<<START MENU>>
MEM 512KB
>
HT630 V1.00
3.COM 4.DIR
5.ERA 6.TYP
7.CPY 8.SET
1.RUN 2.TER
RUN
command
USER mode
Alphathen
System configurations are categorized in two groups, users can select “8.SET” command in User mode to
set general system configurations or enter Supervisor mode to set advanced system configurations. The
Supervisor mode is also protected with password checking to prevent unauthorized personnel from
changing the system configuration.
(For HT630 detail setup procedures please refer to HT630 Technical Binder). It is likely that your unit
came pre-configure by your software vender or system developer. In this case, please be caution when
changing these settings.
3.1 Ready Mode
The terminal performs a Power-On-Test and Warm-Start when it is switched on. After the Warm Start, the
system enters Ready mode and shows the Ready mode prompt.
The first line indicates the model code and version number (e.g. V1.00). The second
line shows the size of the total installed RAM (i.e. 4608 KB). The third line prompts a
">" which indicates that the terminal passed the Power-on-test and is ready to be used.
Ready mode
prompt
HT630 Vx.xx
MEM 4608 KB
>

Unitech HT630 Specifications

General

Display diagonal	- \
Display resolution	128 x 64 pixels
Display number of colors	Monochrome
ROM capacity	0.256 MB
Internal memory	0.0005 GB
Internal memory type	RAM
Compatible memory cards	Not supported
Maximum internal memory	4.5 MB
Processor family	-
Processor frequency	0.8 GHz
Interface	RS-232
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	120 mAh
Battery life (max)	12 h
Battery recharge time (off)	2.5 h
Certification	BSMI, CCC, CE, FCC, VCCI, RoHS
Product color	Blue
Barcode reader	Yes
Keyboard layout	Alphanumeric
Keypad number of keys	27

Weight and Dimensions

Depth	35.1 mm
Width	67.1 mm
Height	167.64 mm
Weight	243.81 g
