Unitech PA500 User Manual

Chapter 3 Getting Connected
25
6. Align the IR port of your device with the IR port on your computer.
7. Open ActiveSync on your device.
8. Tap Menu → Connect via IR.
To setup a Bluetooth ActiveSync connection:
Your device is equipped with Bluetooth wireless technology that you can use to synchronize information
with a computer equipped with a Bluetooth adapter or access point. Bluetooth wireless technology
allows you to communicate with the computer whenever it is within the range.
1. Configure the Bluetooth connection on your computer. Refer to the Windows Online Help for
instructions.
2. Ensure Bluetooth is turned on your computer and detectable and within a close range.
3. Make your device detectable to your PC by tapping Start → Settings → Connecti
ons tab →
Bluetooth.

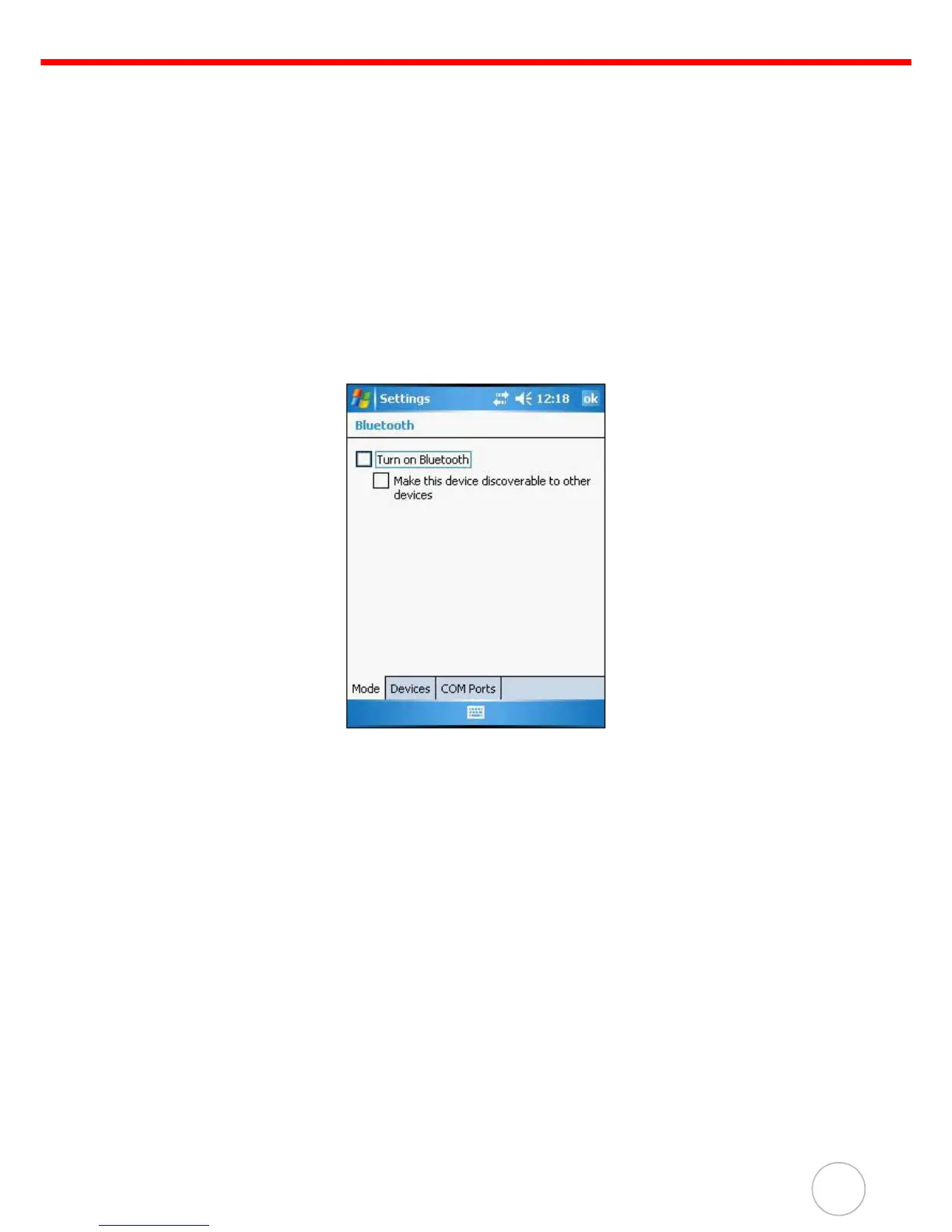

4. On the Mode tab, select the check boxes for the “Turn on Bluetooth” and “Make this device
discoverable to other devices” check box.
5. Tap ok.
6. On your device, t
ap Start → Programs → ActiveSync.
7. Tap Menu
→ Connect via Bluetooth.
If authentication is required, the Enter Passcode screen appears, type an alphanumeric
passkey (PIN code), then t
ap Next; enter the same passkey on the computer.
If you do not want to use a passkey, tap Next.

Unitech PA500 Specifications

System Memory

SDRAM	64 MB
Flash ROM	64 MB

Display

display resolution	240x320 QVGA
display type	Color Transflective TFT
touch screen	yes

Laser Bar Code Scanner

scan rate	104 scans/sec ± 12 scans/sec
scan angle default	47°±3°
scan angle reduced	35°±3°

Power

main battery voltage	3.7 V
main battery capacity	2200 mAh
rechargeable time	3.5 hours

Operating Environment

operating temperature	32°F to 122°F (0°C to 50°C)
storage temperature	-4°F to 140°F (-20°C to 60°C)
relative humidity	5% ~ 95% (non-condensing)

Weight and Dimensions

weight with battery and scan engine	Under 213 g
length	126 mm
height	23 mm
