Unitronics UniStream 5 inch User Manual

UniStream
®
Built-in
Unitronics
3
Kit Contents
 1 PLC+HMI controller
 4,8 mounting brackets (US5/US7, US10)
 1 panel mounting seal
 2 panel supports (US7/US10 only)
 1 power terminal block
 2 I/O terminal blocks (provided only with
models comprising built-in I/Os)
 1 Battery

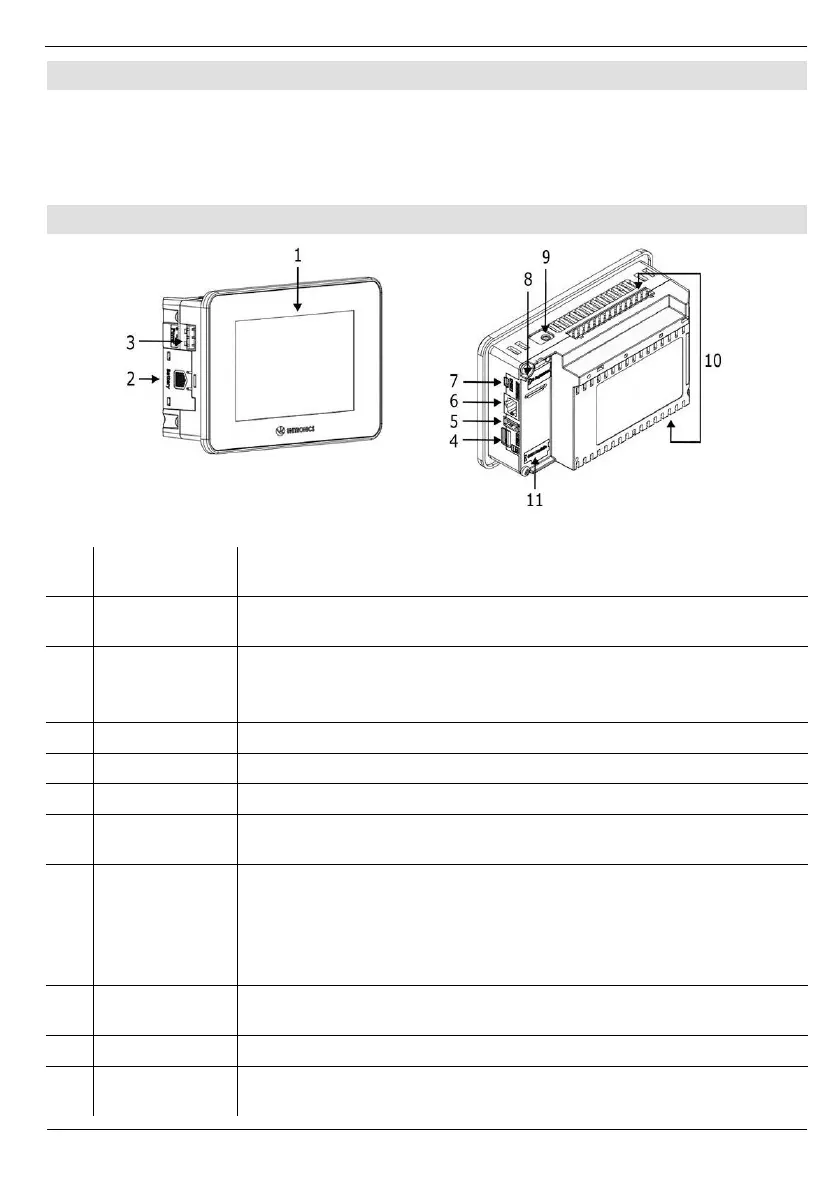

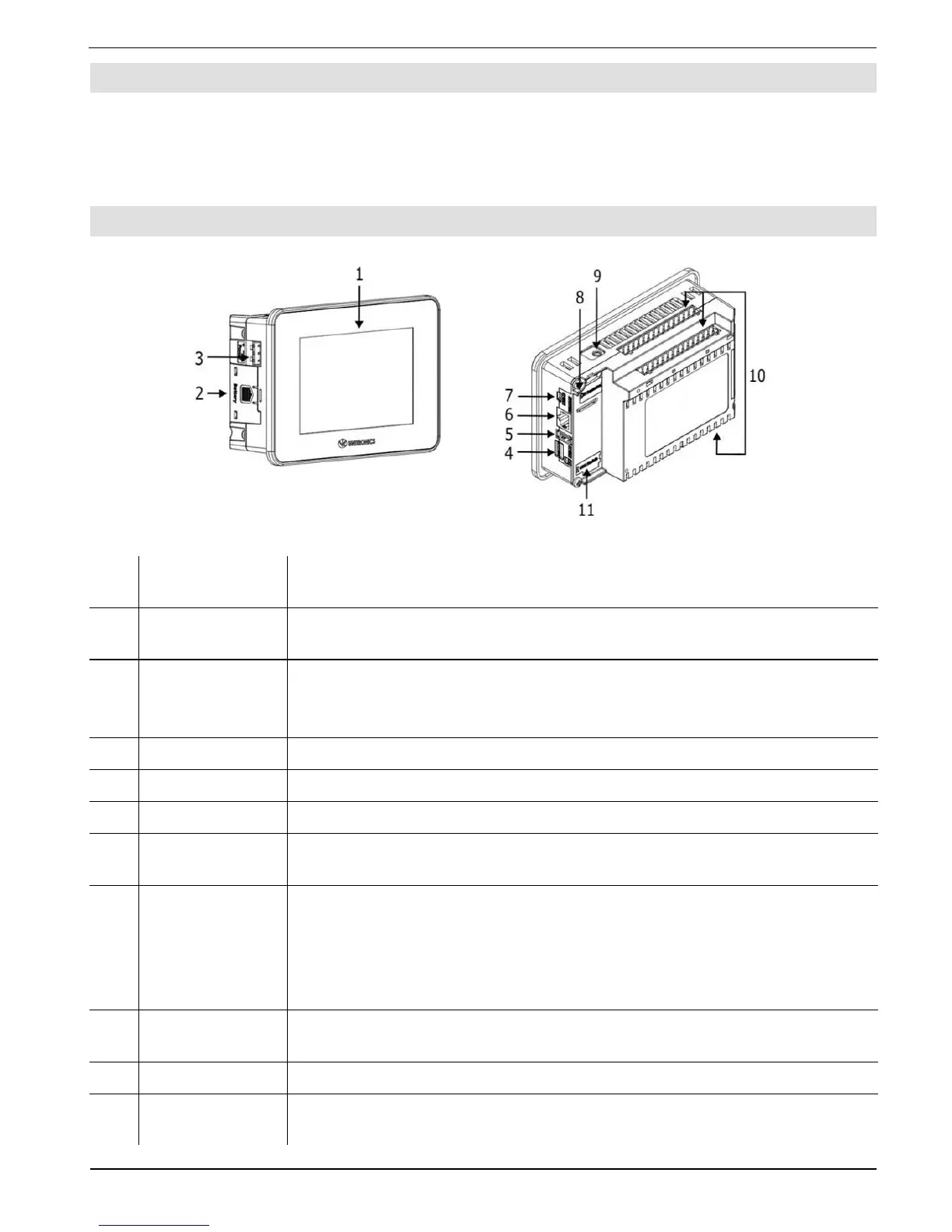

Product Diagram
Front and Rear View
1
Screen
Protection
A plastic sheet attached to the screen for protection. Remove it
during installation of the HMI Panel.
2
Battery Cover
The battery is supplied with the unit, but must be installed by the
user.
3
Power Supply
Input
Connection point for the controller power source.
Connect the Terminal Block supplied with the kit to the end of the
power cable.
4
microSD Slot
Supports standard microSD cards.
5
USB Host port
Provides the interface for external USB devices.
6
Ethernet port
Supports high-speed Ethernet communications.
7
USB Device
Use for application download and direct PC-UniStream
communication.
8
I/O Expansion
Jack
Connection point for an I/O Expansion Port.
Ports are supplied as part of I/O Expansion Model Kits. Kits are
available by separate order.
Note that UniStream
®
Built-in is compatible only with adapters
from the series UAG-CX.
9
Audio Jack
Pro models only. This 3.5mm Audio jack enables you to connect
external audio equipment.
10
Built-in I/O
Model-dependent. Present in models with built-in I/O configurations.
11
Uni-COM™ CX
Module Jack
Connection point for up to 3 stack-on modules. These are available
by separate order.

Unitronics UniStream 5 inch Specifications

General

Brand	Unitronics
Model	UniStream 5 inch
Category	Controller
Language	English
