Unitronics Vision V130-33-T2 - Input Wiring Diagrams (Continued); pnp (source) Input Wiring; Shaft-encoder Wiring; Analog Input Wiring

Vision™PLC+HMI
Unitronics
7

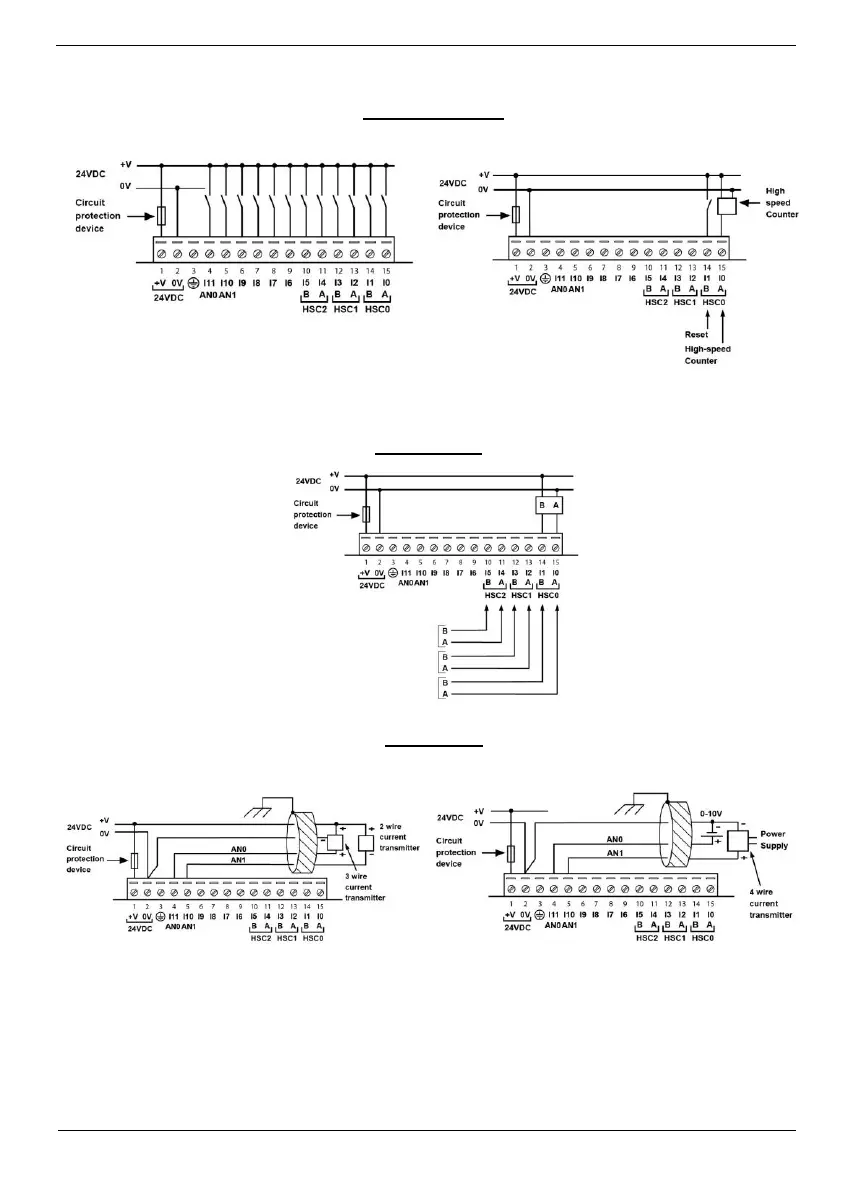

pnp (source) Input
Input wiring
HSC input wiring
Shaft-encoder
Analog Input
Analog input wiring, current (2/3-wire)
Analog input wiring, current (4-wire), Voltage
 Shields should be connected at the signal’s source.
 The 0V signal of the analog input must be connected to the controller’s 0V.
