Rear Panel

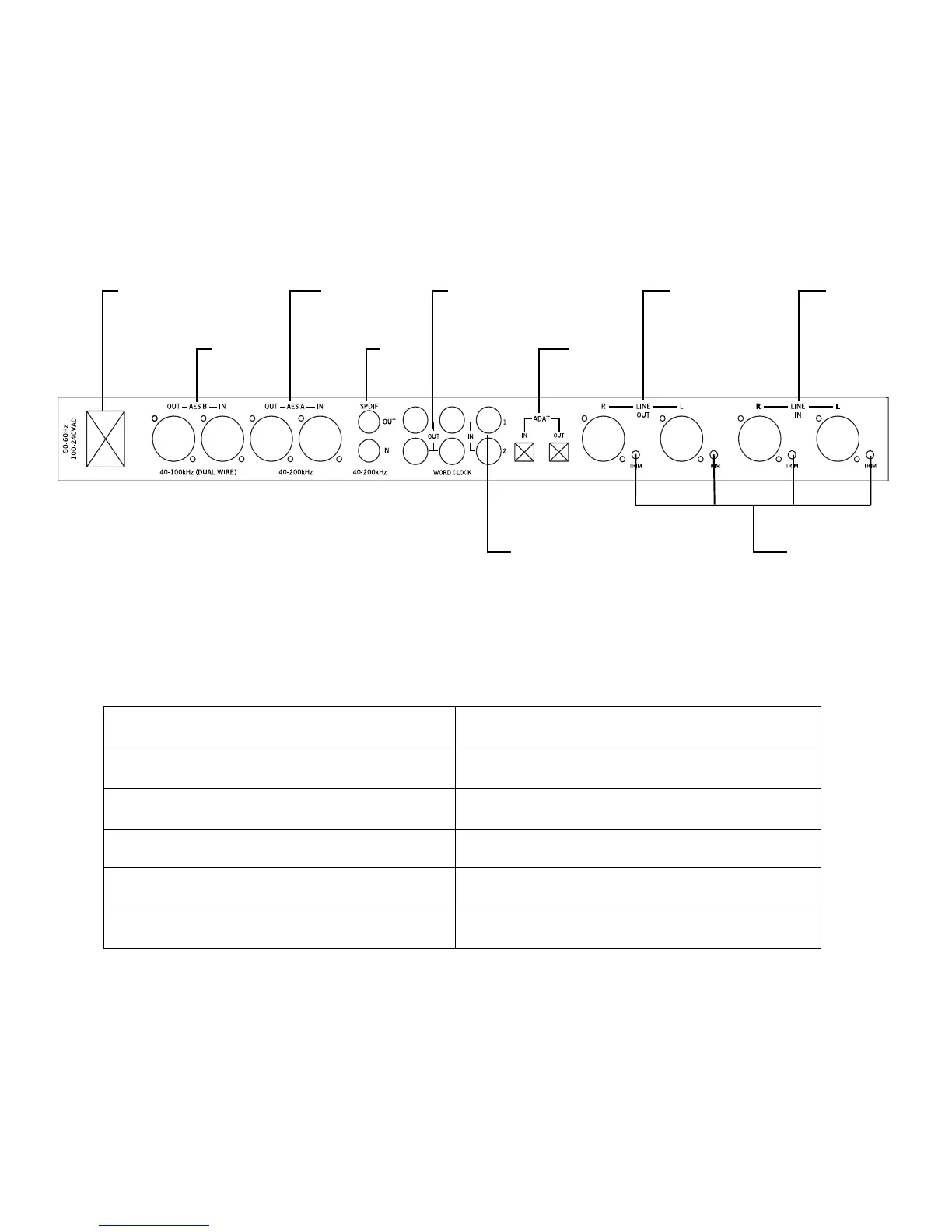

Figure 2 below displays the names of the 2192 rear panel elements along with an index
number. Table 2 below indicates the page number where a complete description of the item can
be found.
Figure 2: Rear Panel Elements
# Name Page # Name Page
1 AC Power Input 16 6 Word Clock Inputs 17
2 AES/EBU Digital I/O – B 17 7 ADAT Optical Digital I/O 18
3 AES/EBU Digital I/O – A 16 8 Analog Line Outputs 18
4 S/PDIF Digital I/O 17 9 Analog Line Inputs 18
5 Word Clock Outputs 17 10 Analog Line Trims 19
Table 2: Rear Panel Index
1
2
3
4
5
6
7
8 9
10
