Universal Audio 710 - Block Diagram

The Technical Stuff
__________________________________________________________
- 18 -

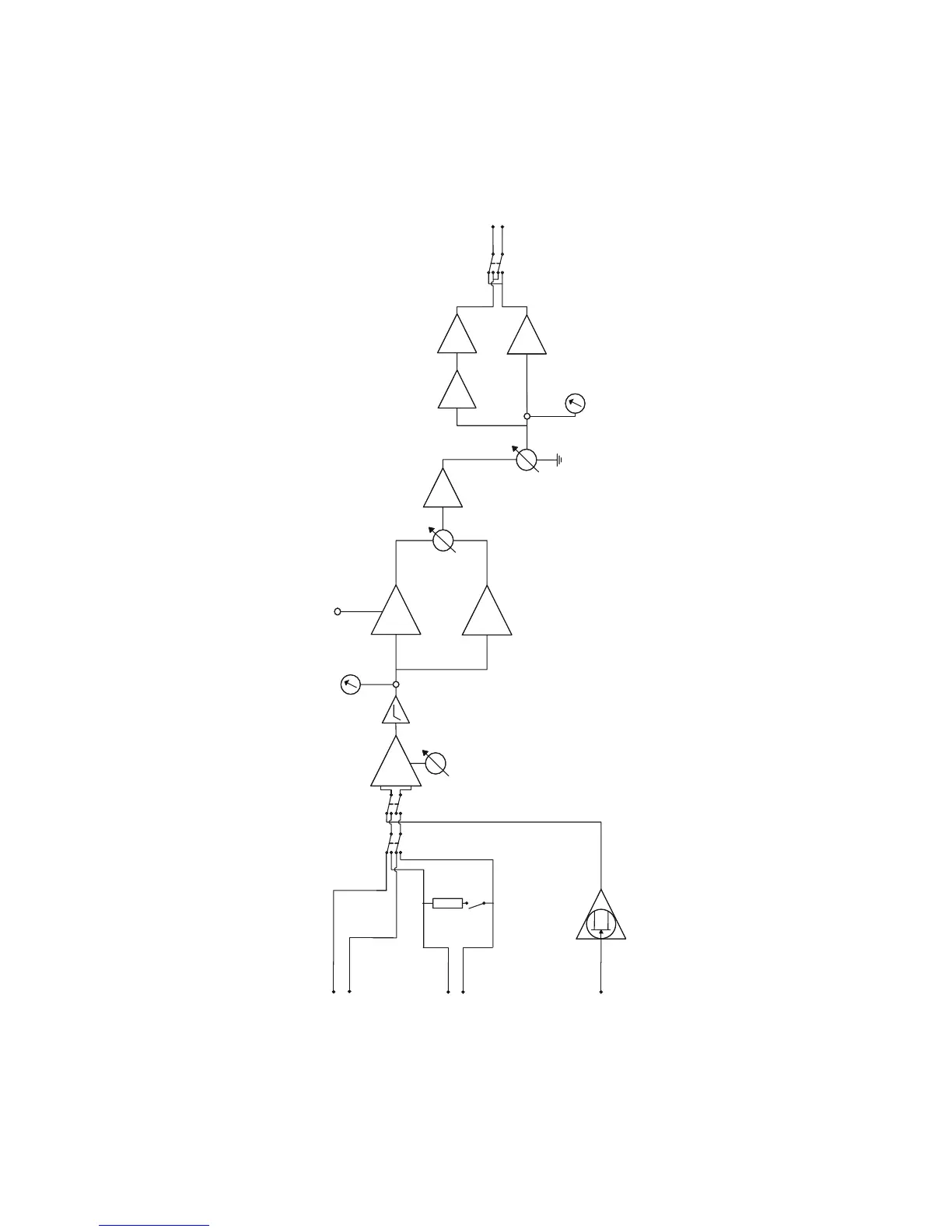

Block Diagram
-
+
Mic IN
XLR
(+48V Not
Shown)
15dB
Pad
(Mic Only)
310VDC
Drive
Meter
Output
Meter
Line IN
XLR
HiZ IN
¼ inch
Blend
Pot
Level
Pot
JFET Buffer
Tube Amp
Solid-State
Amp
Gain
Stage 1
Gain
Pot
Hi-Pass
Phase
Switch
Line Out
XLR
