VLS3.60, VLS4.60 and VLS6.60 Accessories
VersaLASER VLS3.60, VLS4.60 and VLS6.60
There are optional accessories, not included with the basic laser system, that are available at additional cost. Instructions
on how to use these accessories are included in this section. The user can purchase and install all accessories, except
Air Assist, which is a factory installed option only.
CAUTION: Before attempting to use any accessory, make sure that you have read the entire
manual up to this point. It is vital that you have a complete understanding of how the laser system
works before attempting to use an accessory. Incorrect or inappropriate usage of an accessory
may be a safety hazard and may cause severe damage to the system.
Air Assist Back Sweep

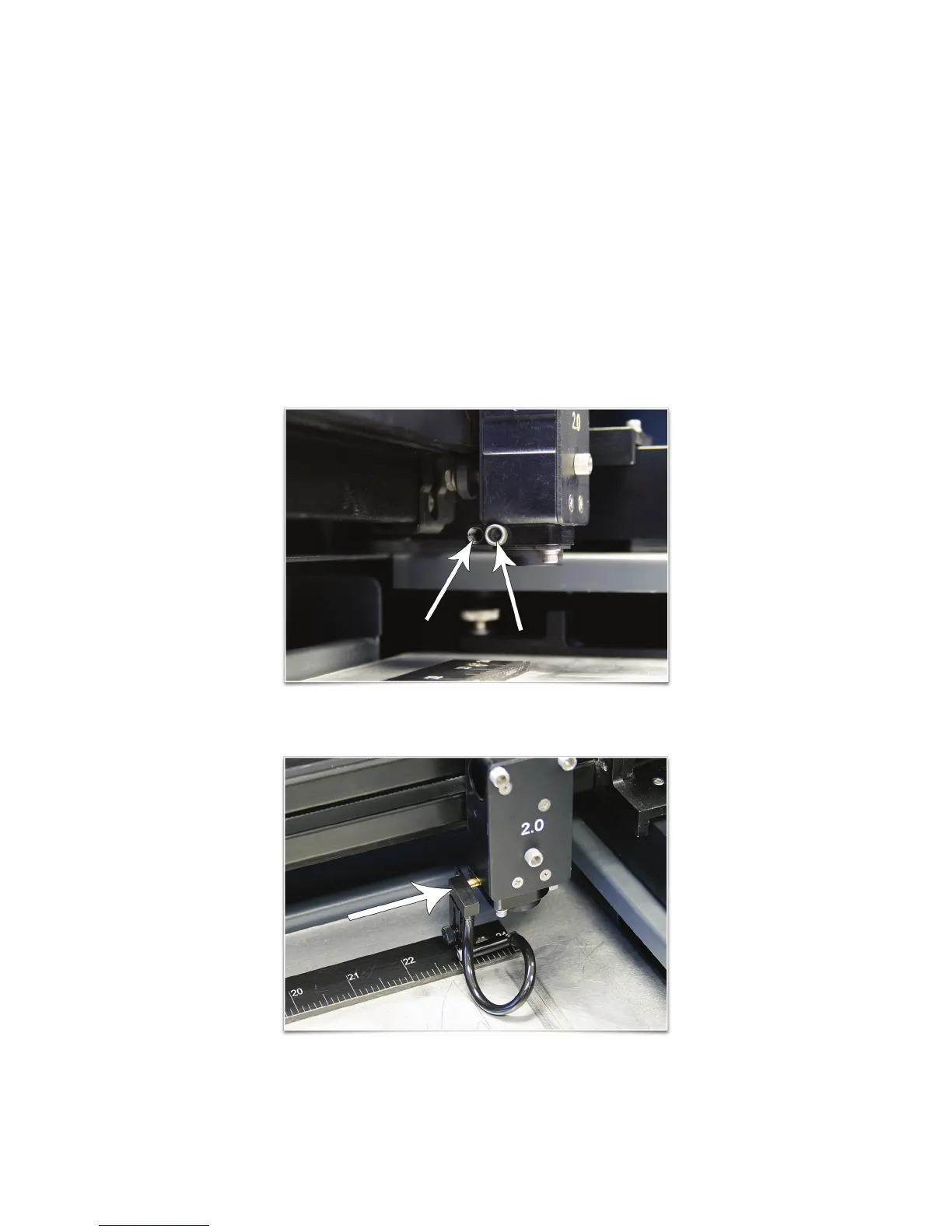

Remove both thumbscrews (if present) and set them aside. You will be using one of the thumbscrews later.1.
Insert the Back Sweep’s brass tube into the right side hole where the thumbscrew was removed.2.
The Air Assist Back Sweep directs debris and smoke to the back of the laser system. When using the back sweep adjust
the large thumbscrew so the air ow pushes any debris or smoke to the back, not directly down towards the material.
