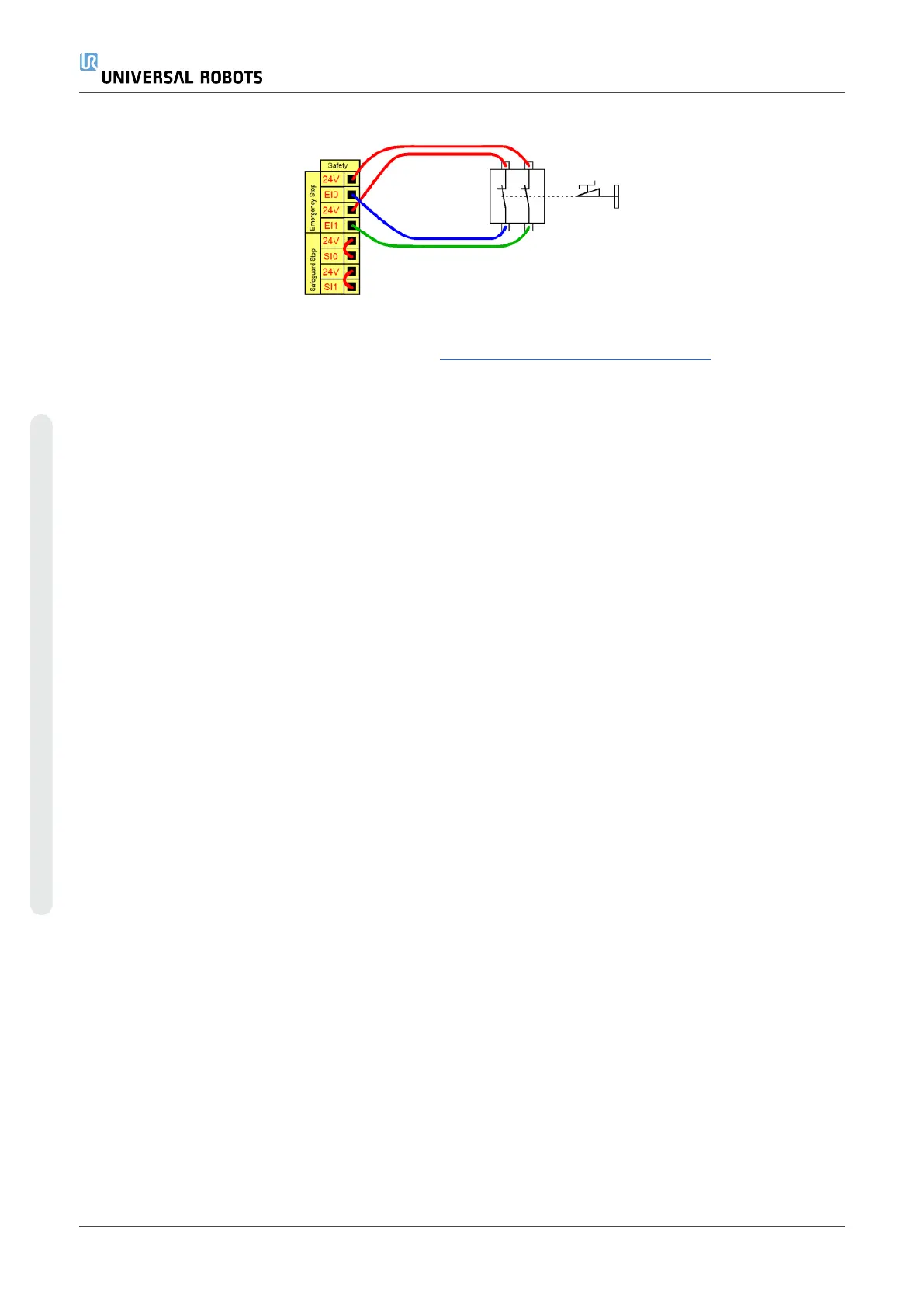

The following illustration shows the minimum required Emergency Stop installation.
For complete, in depth information about the electrical configurations, see the Electrical Interface in
the UR User Manual available for download at: myur.universal-robots.com/manuals
OEM Control Box Installation Guide
