d. Start the mixer and shift the speed control to speed 4 and stop the mixer. Check the position
of the belt on the lower vari-speed pulley. The belt should be flush to 1/16 inch below the
outer edge of the pulley flanges.
e. If adjustment is needed, loosen the nuts (Figure []) and raise or lower the motor using the
nuts on the under side of the motor.
NOTE: The base of the motor must remain parallel to the base of the mixer. If the base of the
motor is not parallel to the mixer base the belt life will be reduced and the mixer may shift
poorly.
f. Retighten the top nuts and run the mixer in speed 4 and check the belt position on the lower
vari-speed pulley. Repeat the procedure if necessary until the belt is flush to 1/16 inch below
the upper pulley flange.
Page 2.3

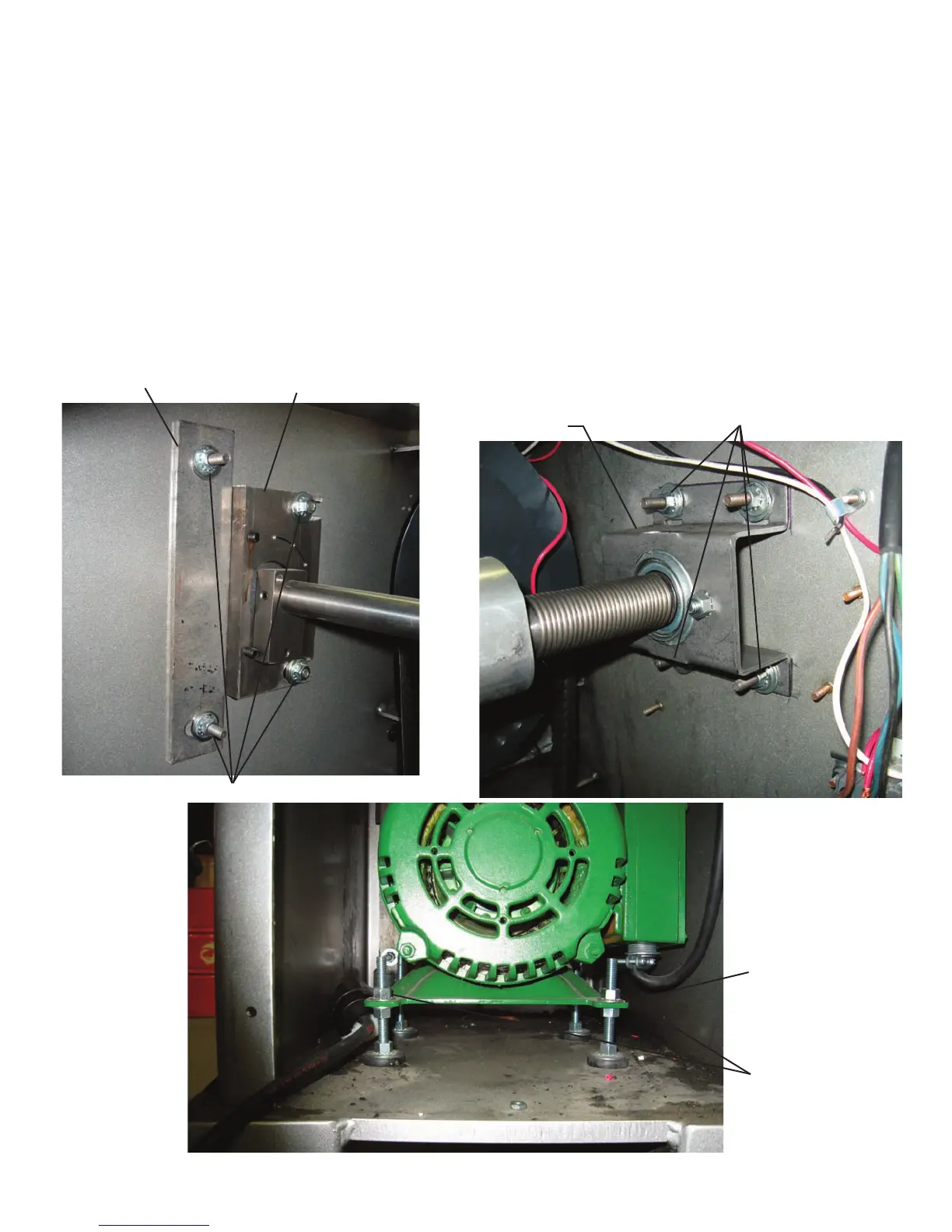

Motor Base
Nuts
Speed control
Bracket
Mounting Nuts
Strap
Detent Housing
Mounting Nuts
