Beater head assembly: (Figure 5)
1. Remove the 1/2-20 hex head cap screw (Figure 5 [14]), (left hand thread), and washer [13]
and remove the beater head assembly using the two jack screws (Figure 5 [12]) if
necessary.
2. Remove the drive pin (Figure 5 [3]) with the tool T6012.
3. Remove one retaining ring [11], beater head pinion gear [9] and the key [10] from the
beater head shaft [2].
Do not pry against the outer rim of the beater head housing as this may crack the casting.
NOTE: If the gear requires replacement, always replace it’s mating gear.

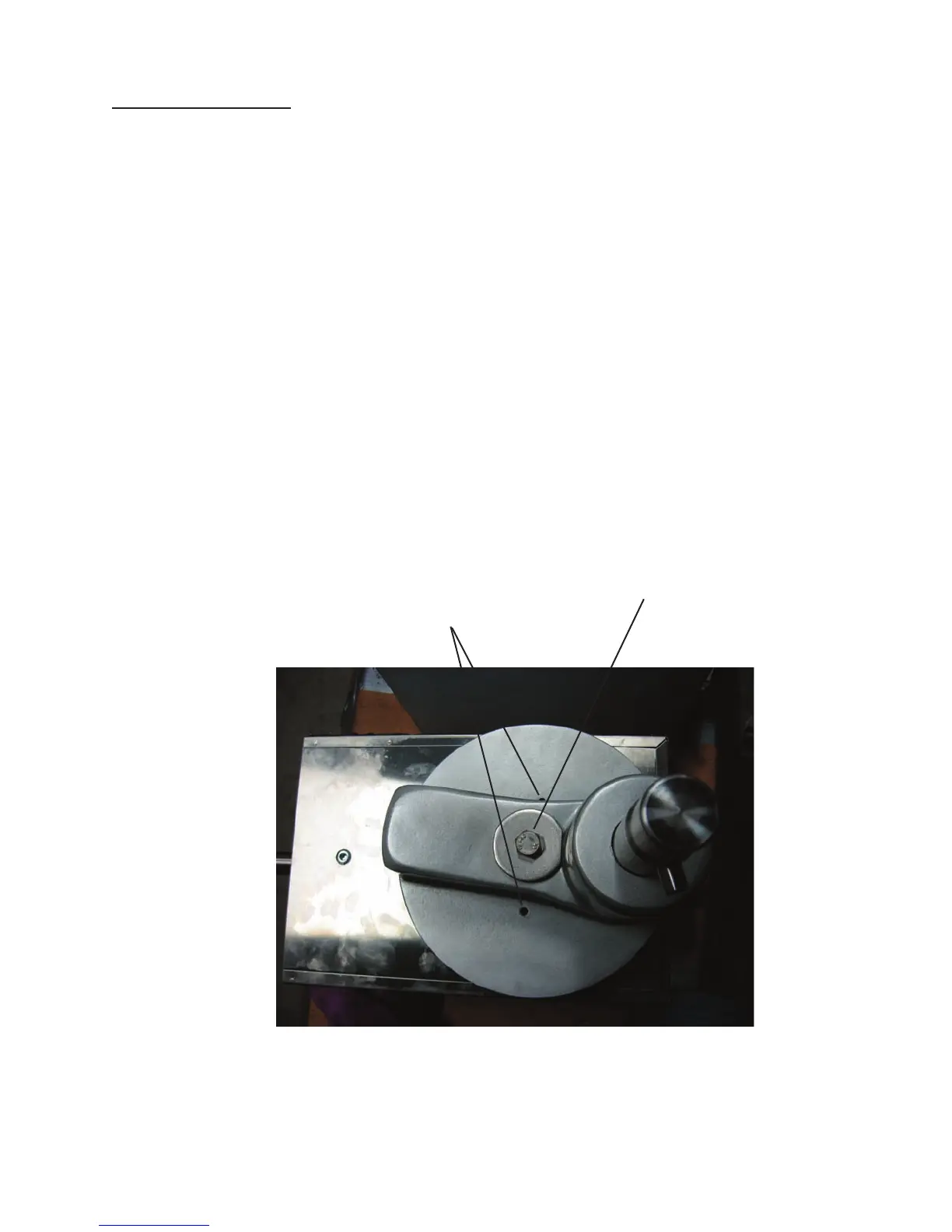

Jack Screws
1/2-20 Cap Screw
NOTE: left hand thread
Page 3.5
