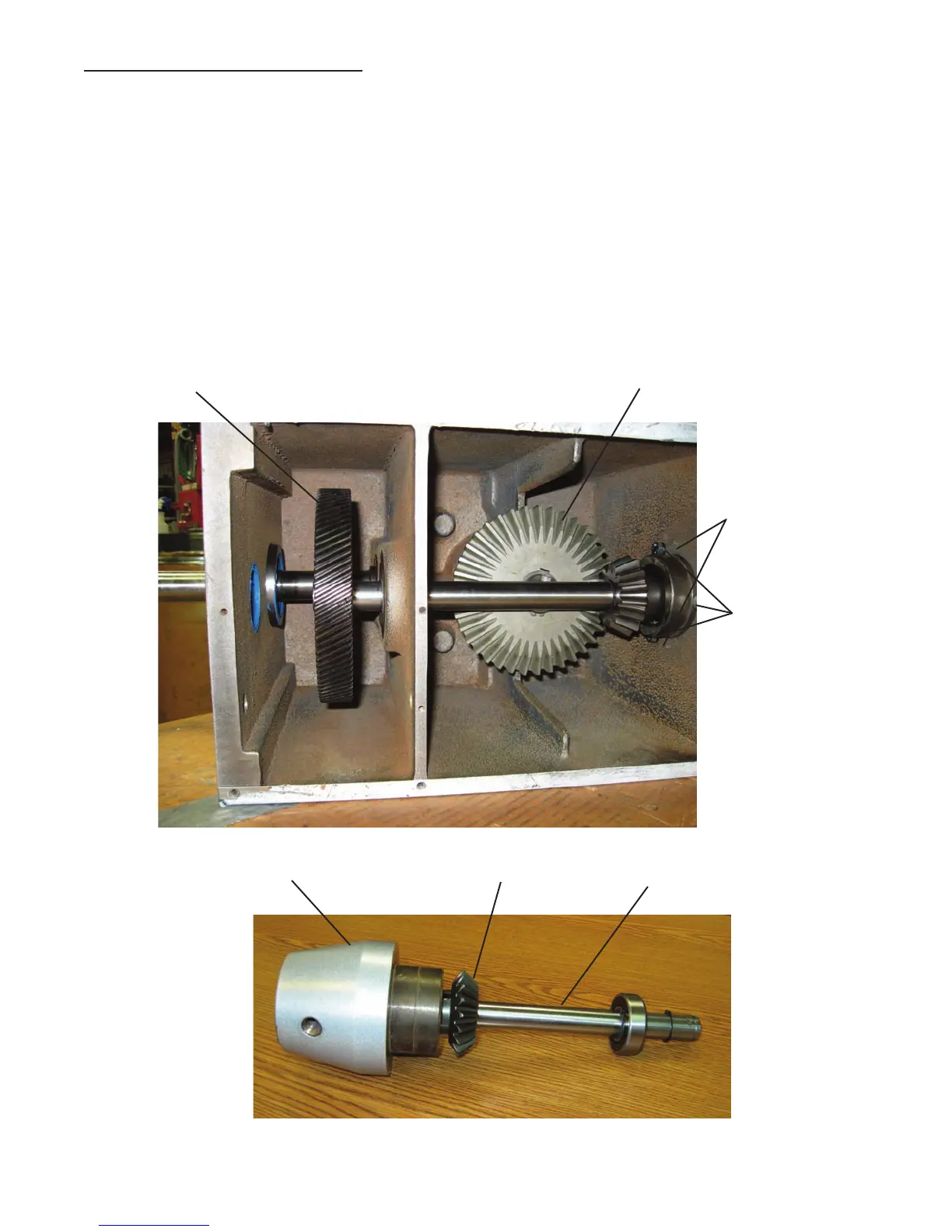

POWER TAKE-OFF ASSEMBLY: (Figure 6)
1. Remove the retaining ring Figure 6 [14]) from the end of the PTO shaft [12] and remove the
helical gear [13] from the PTO shaft.
2. Remove the three 5/16-18 hex head cap screws [7], Washers [6],. Thread two of the 5/16-18
screws into the threaded holes in the transmission housing and turning the screws alternately,
jack the power take-off assembly from the transmission housing.
NOTE: Gear [13] should be replaced as a set with the input shaft and gear PN1064532.
bevel gear
5/16-18 hex screws
helical gear
Page 3.7
power take-off assembly
power take-off housing bevel gear
power take-off shaft
threaded jack
screw holes
