INPUT ASSEMBLY: (Figure 7)
1. Remove the four 5/16-18 hex head cap screws (Figure 7 [8]) and the washers [7] securing the
input assembly to the transmission housing.
2. Thread two of the 5/16-18 hex head screws into the two threaded jacking screw holes in the
input housing flange. Turn these two screws in evenly until the input housing is pushed free
of the transmission housing and remove the input assembly from the transmission housing.

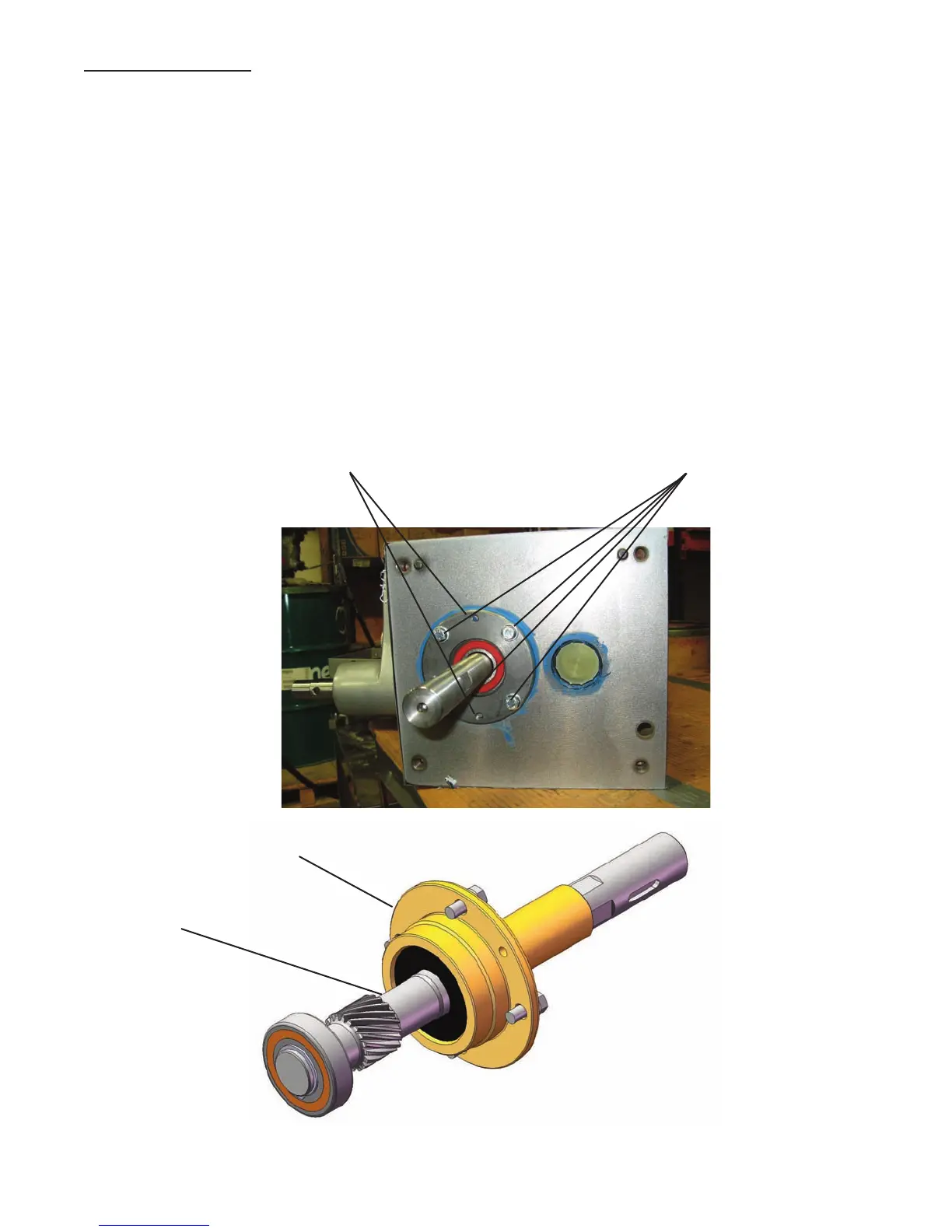

threaded jacking screw holes
5/16-18 hex screws
Page 3.9
input assembly
input housing
input shaft
