Univex SRM80+ - Page 4

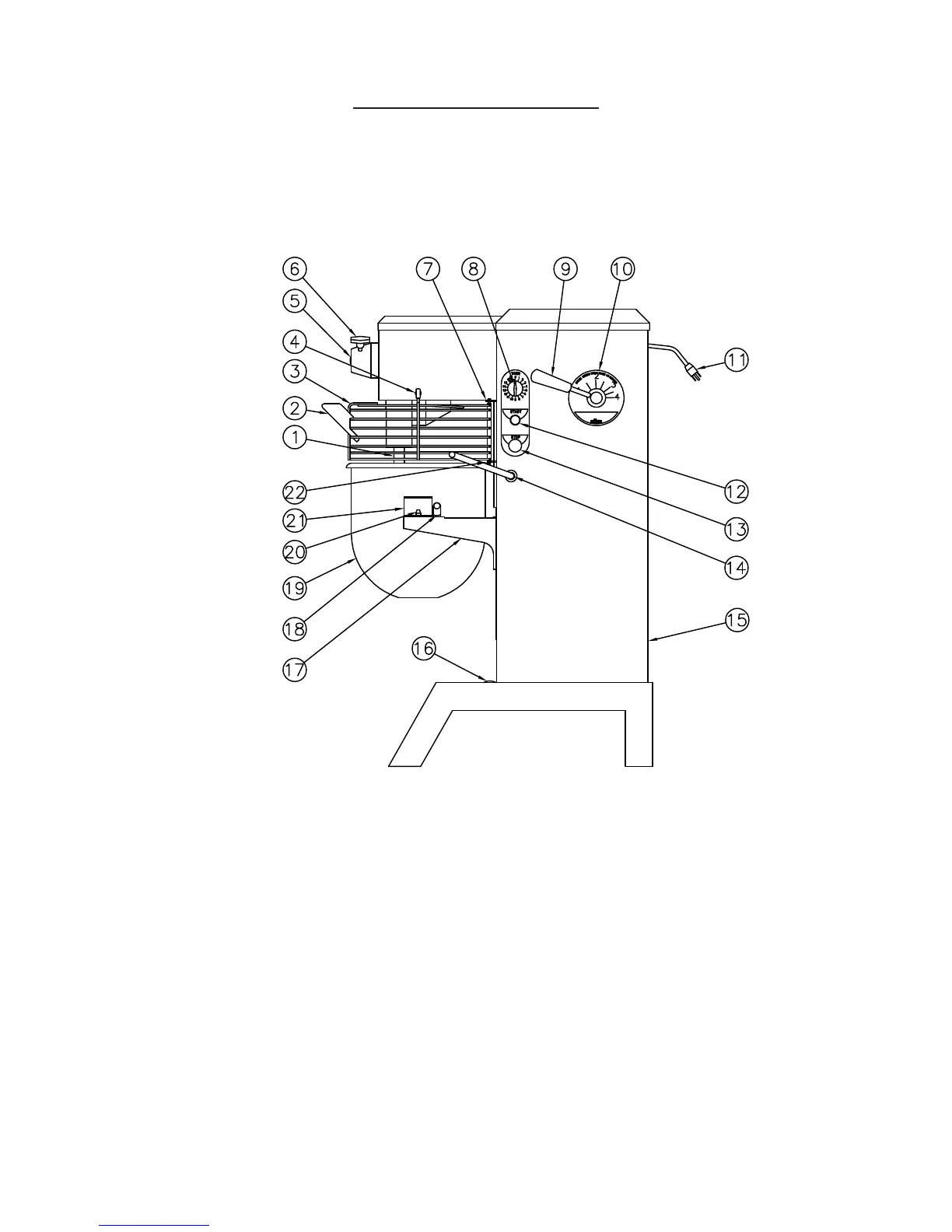

OVERALL VIEW OF MIXER
FIGURE 1
1. BEATER HEAD 12. START BUTTON
2. CHUTE 13. STOP BUTTON
3. SAFETY RING ASSEMBLY 14. BOWL LIFT HANDLE
4. MAGNET 15. REAR ACCESS PANEL
5. No.12 HUB 16. CAP
6. THUMB SCREW 17. BOWL SUPPORT
7. UPPER MOUNTING BRACKET 18. BOWL CLAMP
8. TIMER (OPTIONAL) 19. BOWL
9. SPEED CONTROL LEVER 20. BOWL SUPPORT PIN
10. SPEED INDICATOR LABEL 21. BOWL MOUNTING BRACKET
11. CORD 22. LOWER MOUNTING BRACKET
Page III
