Unox MINDMaps BAKERTOP User Manual

3 mm
7 mm
A
floor standing units: A= 4mm
countertop units: A= 7 mm
Figure 9

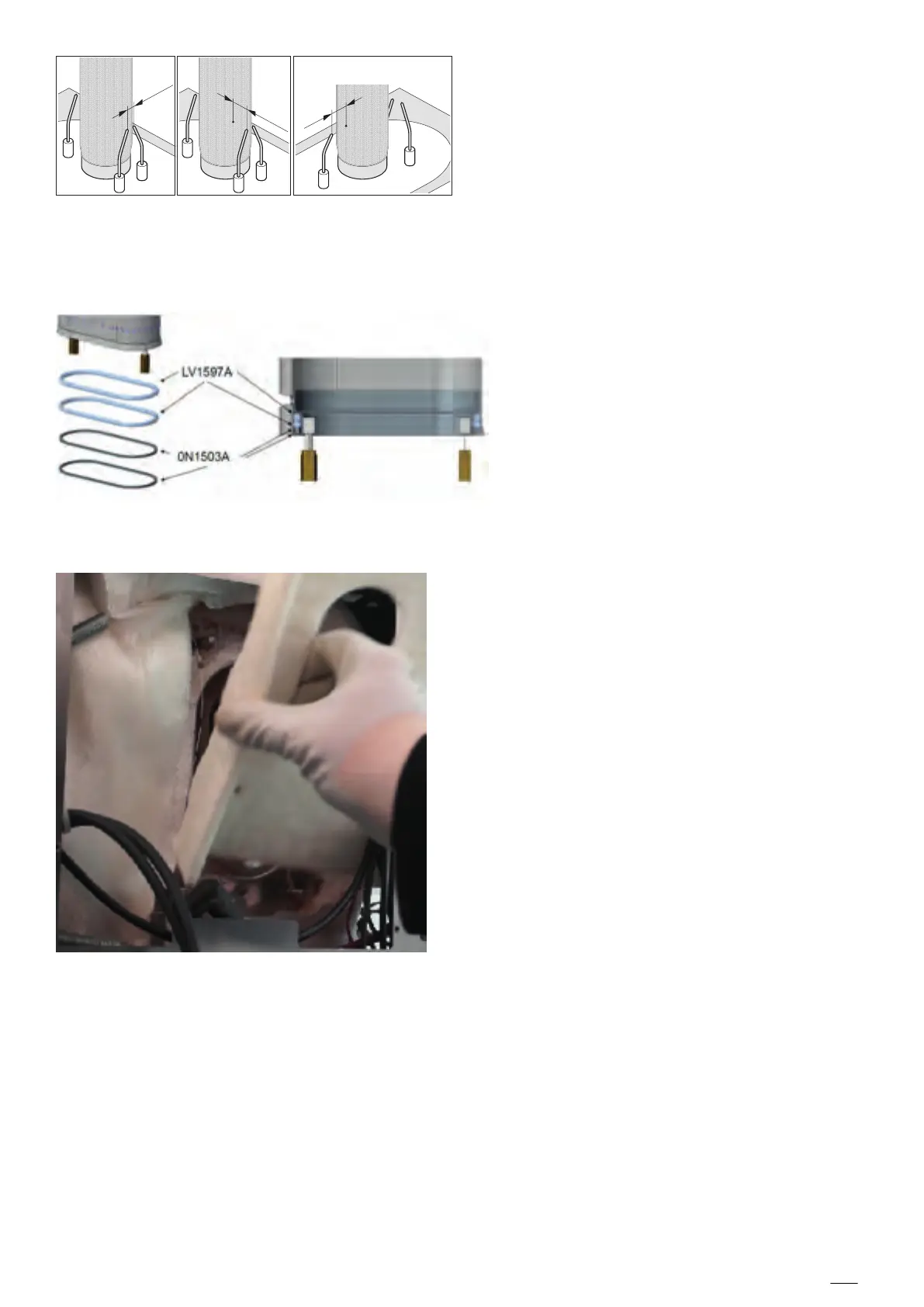

How to align the distance between the electrodes:
f) Once the new torch has been fitted, use a gas leak detector for investigating any gas leakage.
g)On the bottom of the heat exchanger, the two metal rings and two glass wool cords are placed to
ensure the sealing shown in the .

■ h) Install the new sealing/isolation part that is called KGN1569A as shown on .

107
