Introduction
The water inlet system is composed of:
A) Input filter 3/4’’ with non-return valve + mechanical filter of
100 μm;
B) One pressure reducer set at 2.3 bar / 29 psi ) (not adjustable);
C) One water main connection pipe made of white LDPE (de
= 10 mm - 0,4 inches);
D) Cleaning system fed by the blue pipe made of EPDM (de =
12 mm - 0,31 inches);
E) Black pipe for steam EPDM (de = 12 mm - 0.31 inches);
F ) Connection to the detergent tank black LDPE (de = 10 mm
- 0,4 inches).

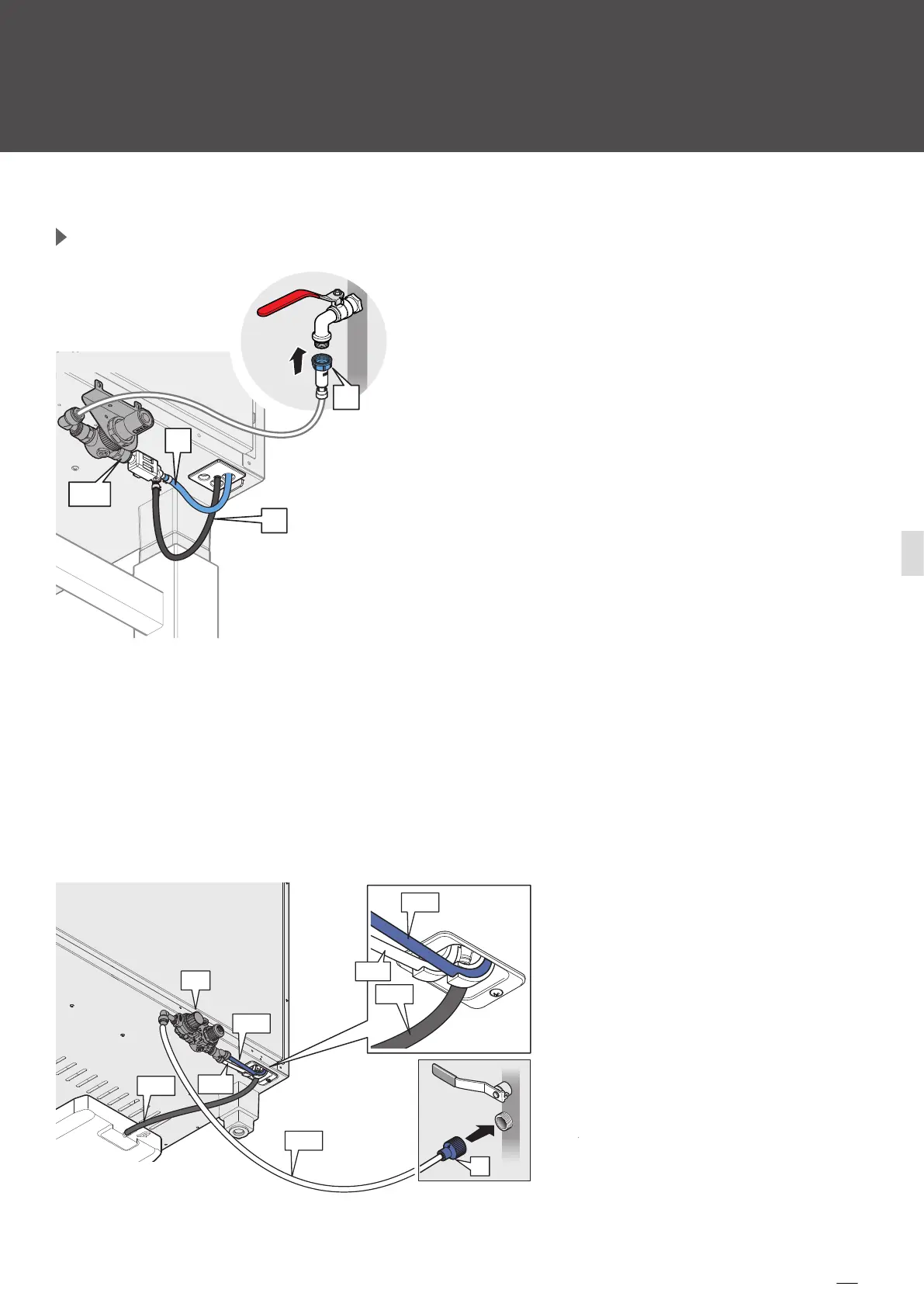

Figure 9
Water inlet after February 2020
The water inlet system is composed of:
A) Input filter 3/4’’ with non-return valve;
B) One mechanical filter of 100 μm;
C) One pressure reducer set at 2.3 bar / 29 psi ) (not adjustable);
D) One water main connection pipe made of white LDPE (de = 10 mm - 0,4 inches);
E) Cleaning system fed by the blue pipe made of LDPE (de = 8 mm - 0,31 inches);
F) White pipe for steam LDPE (de = 8 mm - 0.31 inches);
G) Connection to the detergent tank black LDPE (de = 10 mm - 0,4 inches).
ø10 D
ø10
B-C
ø8 E
ø10 G
ø8 F
ø8 F
A
ø8 E
ø10 G
Water inlet before December 2016
Self cleaning solenoid valves
