Unox MINDMaps BAKERTOP - Appendix 1: MIND.Maps Gas Units Installation

Scope
The aim of the procedure is to describe the installation process of MIND.Maps
TM
gas ovens.
Field of application
This procedure applies to technician who installs MIND.Maps
TM
gas ovens.

TM
GAS UNITS: INSTALLATION

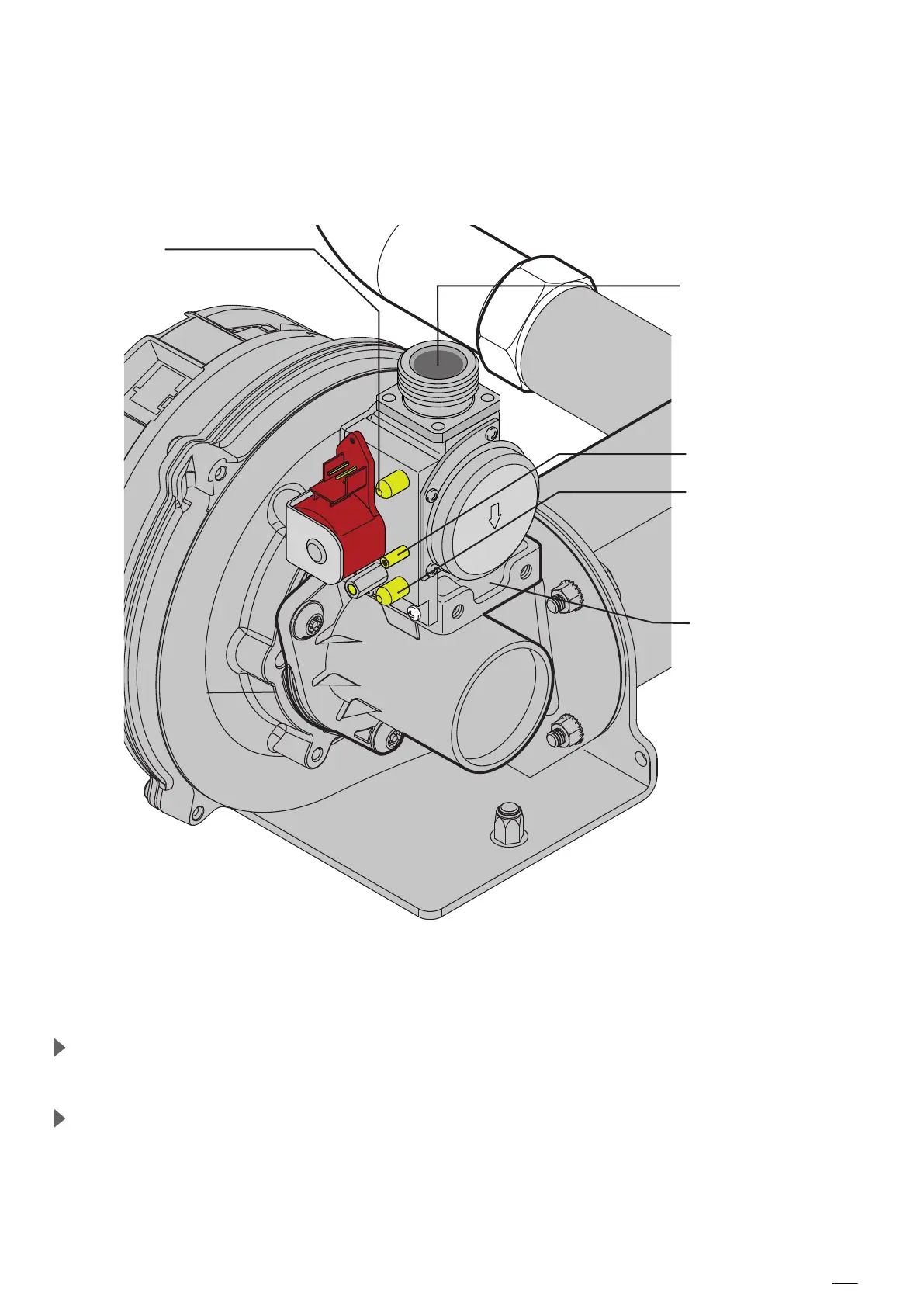

3/4” thread -
incoming gas fitting
Throttle
Outflow
gas pressure
measuring point
G20 – G30 gas plate
The LPG orifice is the
same for all the gas
models. During the
first installation you
will find it opening
the gas valve back
plastic cover. It will be
inside a plastic bag
fixed directly to the
gas valve. Gas ovens
powered with natural
gas do not require
the installation of the
specific orifice.
Inflow
gas pressure
measuring point
