3 mm
7 mm
A
floor standing units: A= 4mm
countertop units: A= 7 mm
Test to do

Proper position of
the electrodes
Test 5
Remove the burner and check the following:

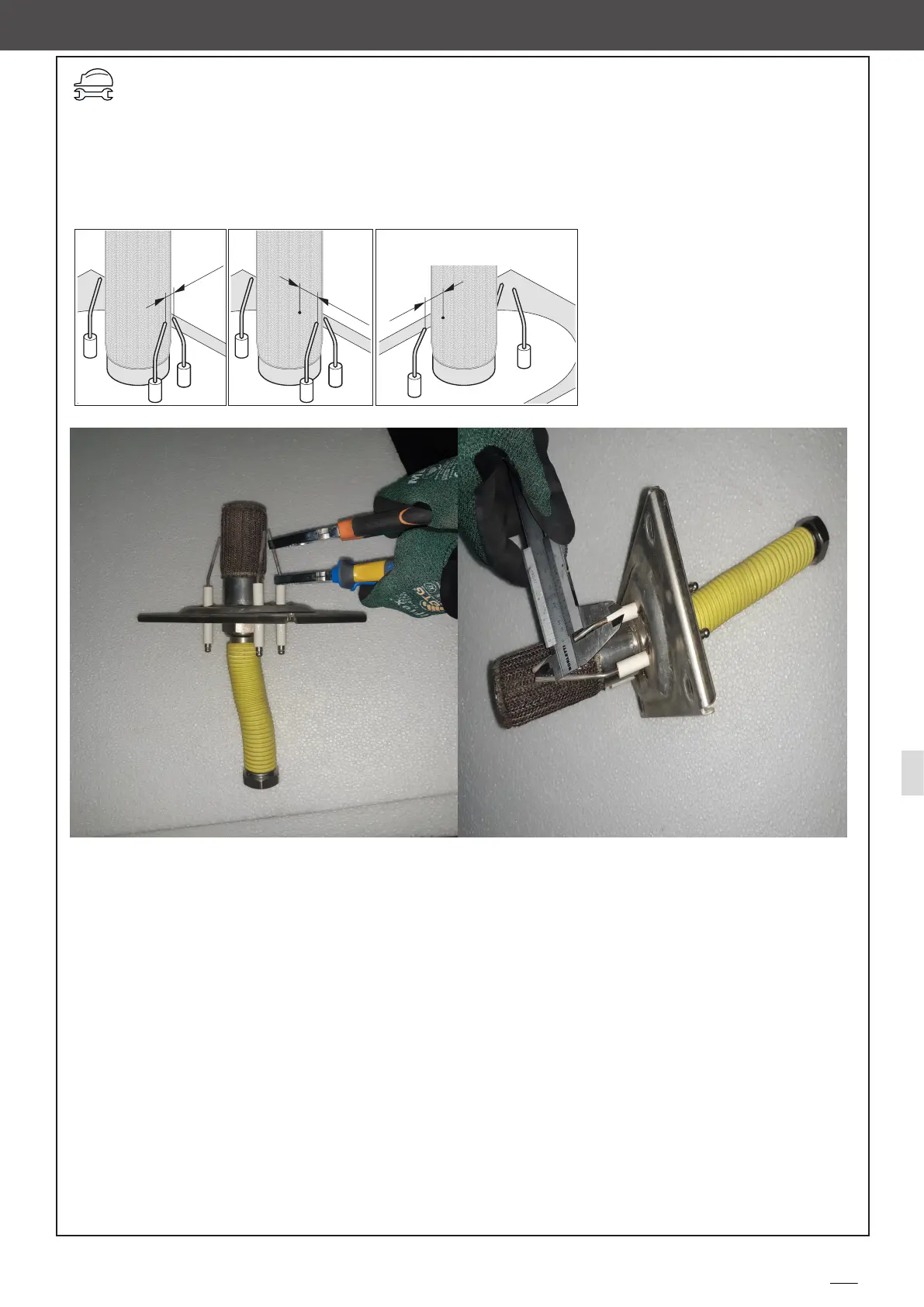

Check the gap between the ignition and flame detection electrodes (see Figure 28) and (see Figure 29)
Test the electrical continuity of the electrodes with the multimeter set to ohm.
146
Figure 29
How to set the proper positioning of the electrodes
