Unox MINDMaps BAKERTOP - Page 180

OVEN

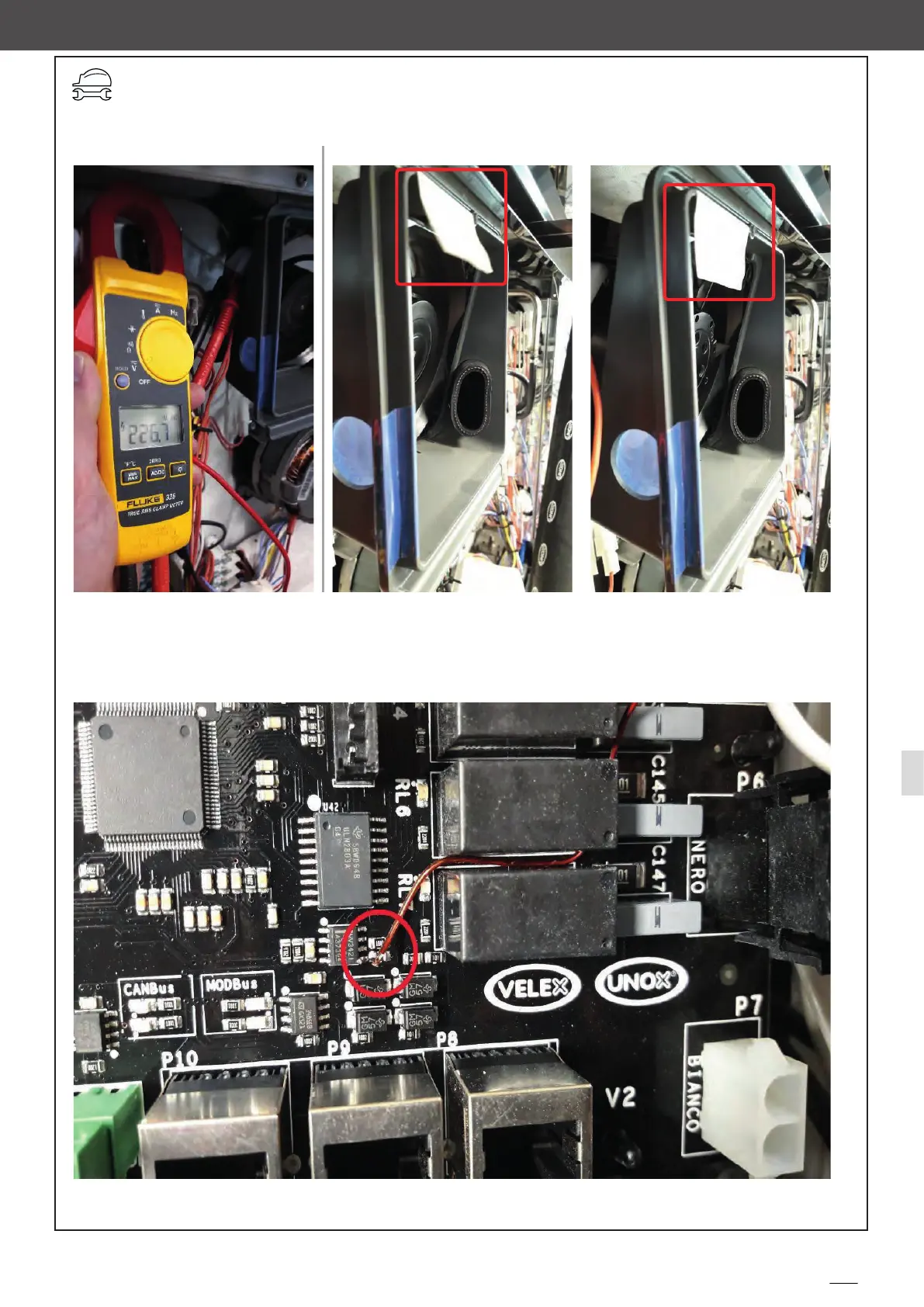

Test to do
Fan is running in the right direction
Fan is not running in the right direction
The correct position of the external temperature probe is shown in the figure below. Place
the external probe 3 mm to the edge from the board to avoid short circuit.
 
180
