Unox MINDMaps BAKERTOP User Manual

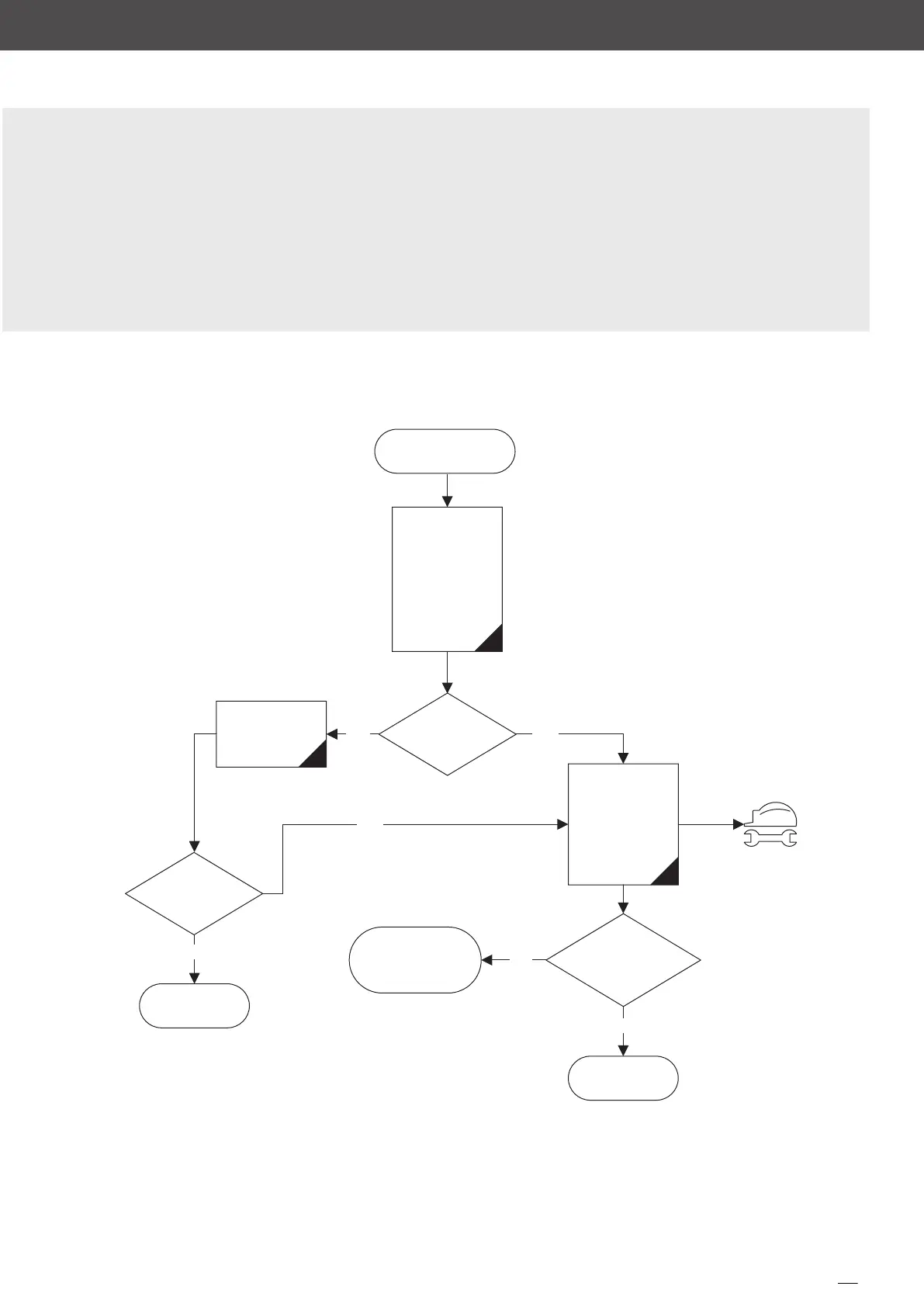

DAMAGED 
NO
NO
YES
NO
YES
YES
Test
1
Is it
connected?
Does
the alarm
persist?
Do you
have the right
value of the
resistance in
Ω?
AF03/A03
temperature
probe damaged
Turn o the
power supply.
Open the back of
the oven and
check if the
temperature
probe is
connected to the
socket P14
Disconnect and
test it with the
multimeter set to
ohm. The right
value should be
about 110? at
25°C (77 °F)
Connect it and
test the oven
Replace the
power board
Replace the
damaged
temperature
probe
End
INDEX
AF03 - Temperature probe damage alarm ......................................................................................................................................100
AF04 - Communication error with power board .......................................................................................................................101
WF06/U01 – Power board overheating warning..........................................................................................................................102
WF33 – SD card corrupted ..............................................................................................................................................................................103
Fault message guide for Zero range
*Please note that the alarms not mentioned below are the same as BAKERLUX SHOP.Pro™ range.
