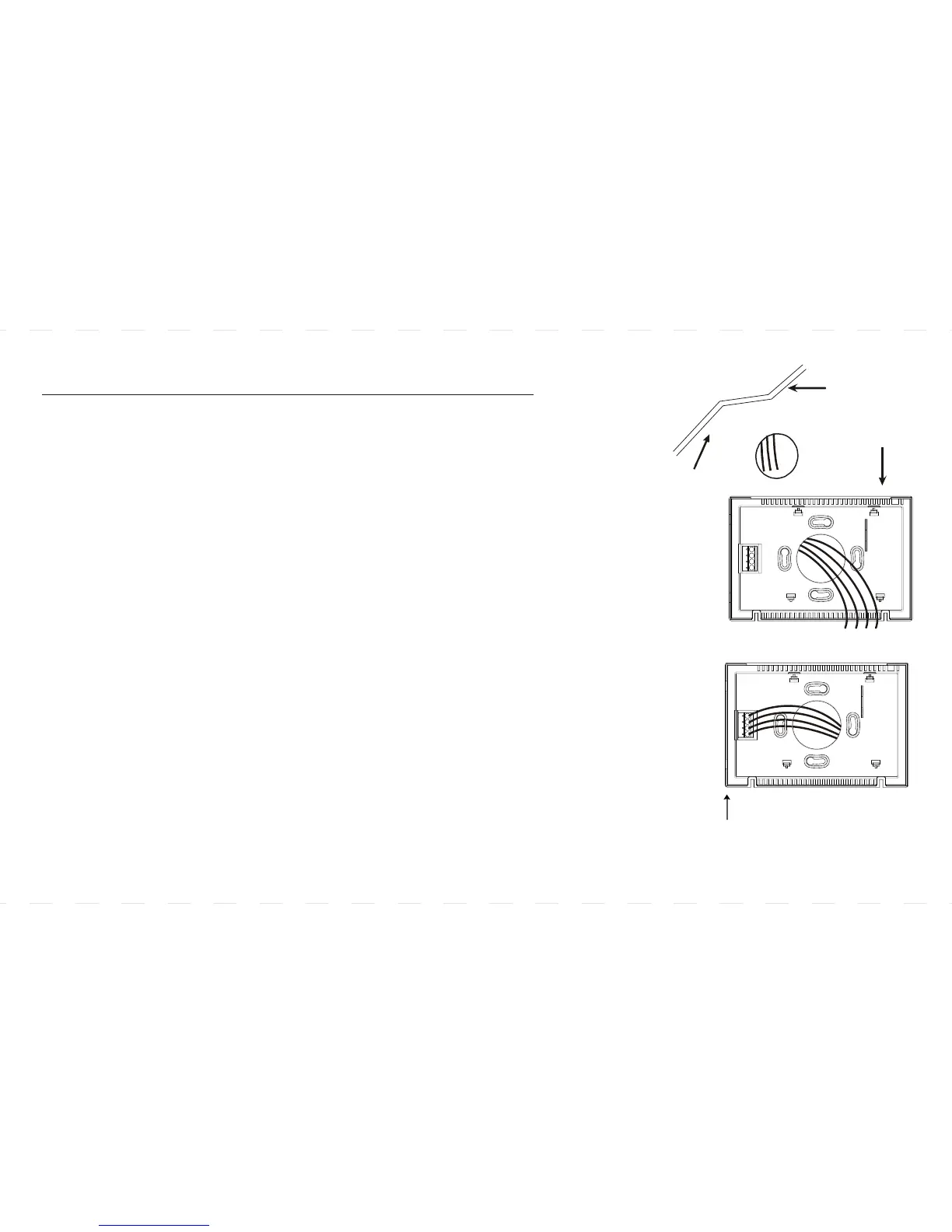

CONNECTING THE WIRES TO THE TERMINALS
Connect the previously labeled wires to the corresponding terminals,
matching the designations. Use a screwdriver to securely fasten
the wires onto the terminals. Make sure the wires do not short-circuit
with other terminals.
l Depending on your heating/cooling equipment,
you may need to connect 2 to 4 wires to the thermostat.
l If you have two ‘R’ wires, then connect each wire to
its corresponding terminal and remove the JUMPER
between the RC and RH terminals.
l If you are unsure of the connections, or for new installation,
you may refer to the wiring diagrams on the next page.
13
Wall
Through Hole
Wall
Wire s
Back-Cover
Terminals
