Uponor Smatrix Wave PLUS User Manual

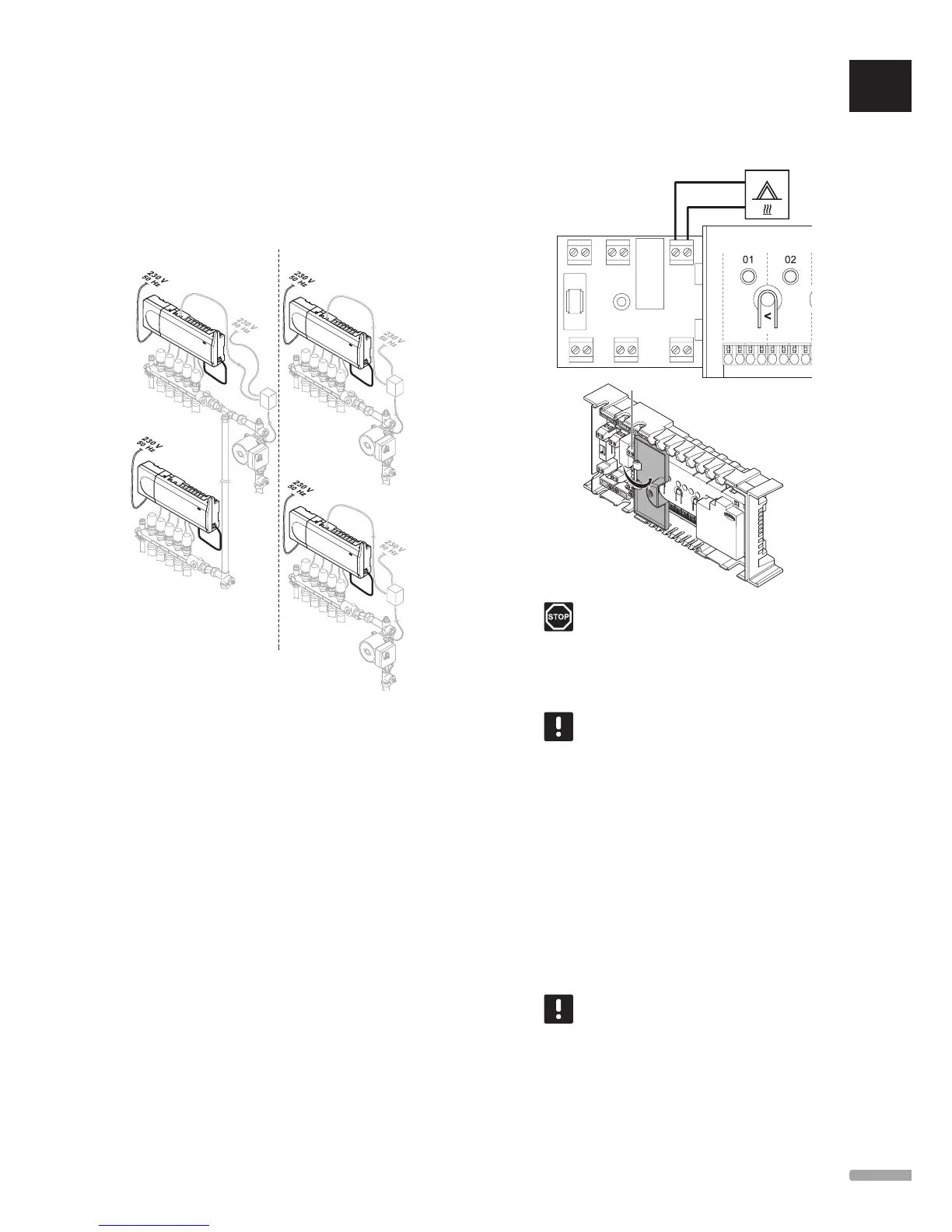

Shared or individual pumps
A pump for all manifolds and controllers can be
connected to the closest controller.
If separate pumps are used for each manifold, each
pump can be connected to be run by its own controller,
as shown in the illustration below.
AB
A Shared pump
B Individual pumps
Connect boiler (optional)
The controller includes a boiler relay, it can be used to
send a signal to either fire the heat source or to power
open a 2-port motorised zone valve positioned on the
flow to the underfloor heating manifold. If the relay
is used to power open a zone valve then, the volt free
auxiliary contacts on the zone valve should be used to
fire the heat source.
Alternatively, the boiler relay can be used to send
a demand signal to an electrically operated water
temperature controller. The additional contacts on the
water temperature controller should then be used to fire
the heat source.
The boiler can be connected either on the controller or,
in a Wave PLUS system, using a wireless relay module.
To connect a boiler to the controller:
The illustration below shows how to connect a boiler to
the controller.
BOILER
BOILER
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
NOTE!
This connection requires a dry contact
sensing input in the boiler.
1. Study the wiring diagram in the end of the manual,
or inside the cover of the controller, to locate the
connector positions.
2. Ensure that the power is disconnected from both
the controller and the boiler.
3. Remove the screw and open the cover for the
optional connections compartment.
4. Route the cable from/to the boiler via a cable entry.
5. Connect the boiler to the connection labelled
BOILER.
NOTE!
There is no power in the controller to supply
the boiler. The boiler connector in the
controller provides only a dry contact to switch
on and off the power connection to the boiler.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
31
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
