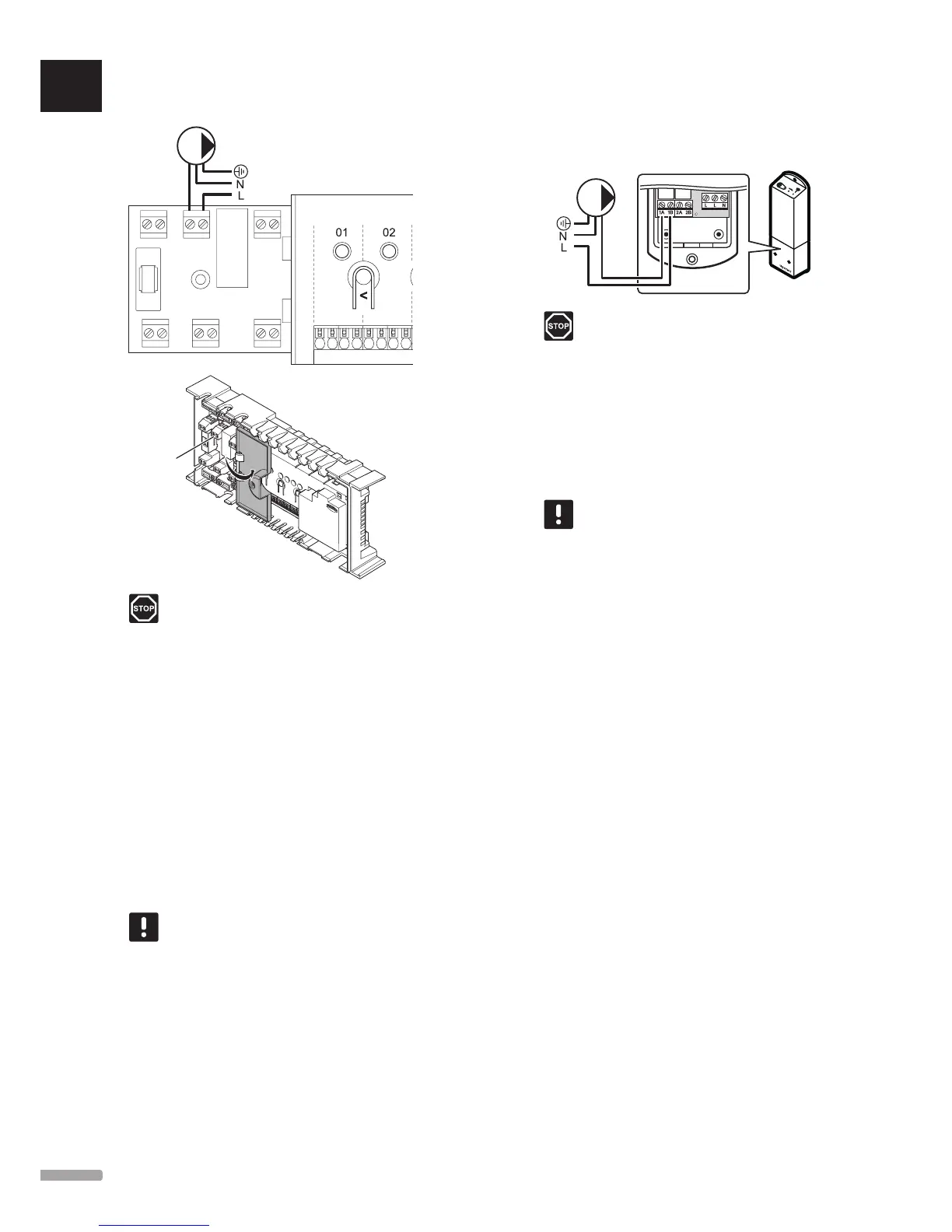

To connect a circulation pump to the controller:
PUMP
PUMP
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
1. Study the wiring diagram in the end of the manual,
or inside the cover of the controller, to locate the
connector positions.
2. Ensure that the power is disconnected from both
the controller and the circulation pump.
3. Remove the screw and open the cover for the
optional connections compartment.
4. Route the cable to/from the pump via a cable entry.
5. Connect the L wire to/from the pump via the
connection labelled PUMP.
NOTE!
There is no power in the controller to supply
the pump. The pump connector in the
controller provides only a dry contact to switch
off and on the power connection to the pump.
6. Secure the pump cable with a cable clamp in the
enclosure.
7. Close and secure the lid to the optional connections
compartment.
To connect a circulation pump to a relay module:
The illustration below shows a circulation pump
connected to a relay module.
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
1. Ensure that the power is disconnected from both
the relay module and the circulation pump.
2. Connect the L wire to/from the pump via the
connection labelled 1A and 1B.
NOTE!
There is no power in the relay module to
supply the pump. The pump connector in the
relay module provides only a dry contact to
switch off and on the power connection to the
pump.
3. Register the relay module to the controller as a
Relay module, system device channel 2. See
section 5.8 Register relay module M-161 for
installation of the relay module.
Wave PLUS with interface only:
4. Go to menu Integration in the interface and select
Relay module.
5. Select the controller to which the relay module
is registered and select Pump + H/C Master or
Pump + Dehumidifier, depending on the use of
the other relay.
A circulation pump is now connected to a relay module
and activated.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
30
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
