USC LPX 2000 - Page 106

Page 106
LPX SEED TREATER

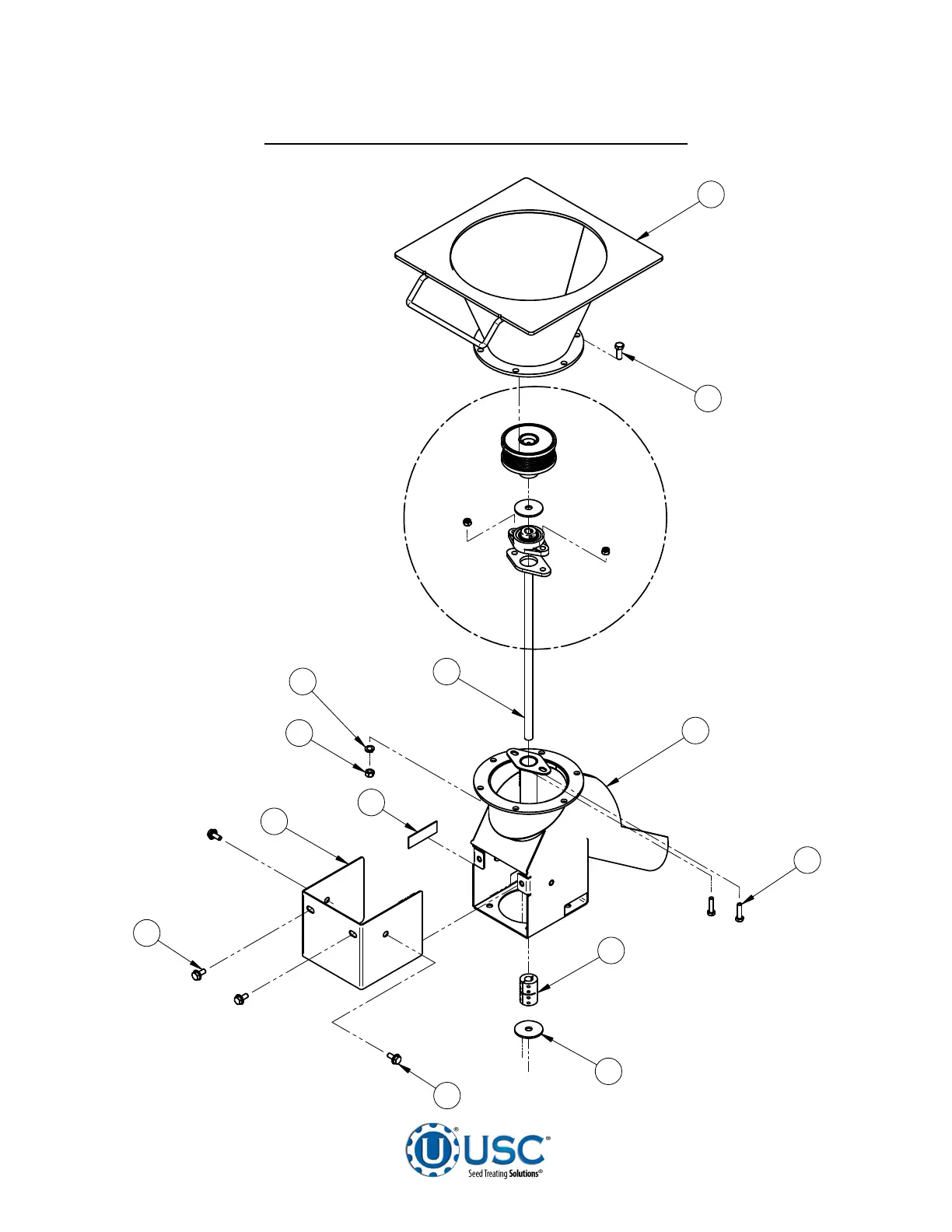

LPX300 CS ATOMIZER ASSEMBLY (04-01-0037)
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
08/06/2014
TITLE
SIZE
D
DWG NO
File Name:04-01-0037 = LPX300 CS Atomizer.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
04-01-0037
ASSY ATMZR CS LP/LX300
Printed 08/06/14 at 16:44
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
08/06/2014
TITLE
SIZE
D
DWG NO
File Name:04-01-0037 = LPX300 CS Atomizer.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C
, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
04-01-0037
ASSY ATMZR CS LP/LX300
Printed 08/06/14 at 16:44
A
Rev
A
Rev
ITEM # DOC # REV # TITLE QTY
1 01-03-0002 A BRG FLG MNT .625ID 3.875 BASE 1
2 01-07-0027 A CPLG CLPN .625 X .625 SPLT CS 1
3 04-02-0004 A ASSY,ATOMIZER HEAD,4" COTTON 1
4 05-03-0834 A WDMT,ATOMIZER CHABMBER CS 1
5 05-07-0148 B WDMT,OUTLET CHUTE CS 1
6 05-10-0805 A DISK ATOMIZER MOTOR 2
7 05-10-1904 B ATOMIZER MTR GUARD LP300 1
8 05-10-2462 A SEAL RBBR .625 FLG BRG 1
9 06-01-0016 A BOLT .375-16 X 1.00 ZP GR5 10
10 06-01-0102 A BOLT .313-18 X 1.25 ZP GR5 2
11 06-01-0124 A BOLT, FLG .375-16 UNC ZP GRADE 5; 3/4" LG 4
12 06-02-0003 A NUT FULL .375-16 ZP GR5 6
13 06-03-0002 A NUT NYL LOCK .313-18 ZP GR5 2
14 06-04-0003 A WSHR LOCK SPLT .375 ZP 10
15 09-01-0107 A LBL ATWK PATENT DECAL-ATMZR 1
16 11-07-0077 A 101383 1
10
11
A
DETAIL A
3
13
13
6
1
16
8
REVISION HISTORY
REV DESCRIPTION DATE BY
A INITIAL DRAWING 08-05-2010 BT
A1 UPDATED HARDWARE TO MATCH
PRODUCTION
01-21-2011 BT
14
12
7
11
15
5
9
4
16
2
6
