USC LPX 2000 - Section I; Mechanical Drawings

Page 62
LPX SEED TREATER
Mechanical Drawings
Mechanical Drawings
Section
Section
I
I
Item # Part #
Description Qty
1 05-11-0014
PLT ATMZR CAP 2
2 05-11-0015 ATOMIZER SPACER 1
3 05-11-0016 DRIVE SPUD, BOTTOM 1
4 06-06-0003 SET SCRW, CP,.375-16 18-8 SS .50 1
5 13-05-0032 PERFORATED SCREEN,STD. 1
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
11/14/2014
TITLE
SIZE
D
DWG NO
File Name:04-02-0004 = Atomizer Head Assy.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
Printed 11/14/14 at 11:56
REV
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
11/14/2014
TITLE
SIZE
D
DWG NO
File Name:04-02-0004 = Atomizer Head Assy.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
Printed 11/14/14 at 11:56
REV
REVISION HISTORY
REV ECN DESCRIPTION DATE BY
A INITIAL DRAWING
Item # Part # Rev Title Qty
1 05-11-0014 A PLT ATMZR CAP 2
2 05-11-0015 A ATOMIZER SPACER 1
3 05-11-0016 A DRIVE SPUD, BOTTOM 1
4 06-06-0003 A SET SCRW, CP,.375-16 18-8 SS .50 1
5 13-05-0031 A PERFORATED SCREEN,STD. 1
4
3
1
2
5
1

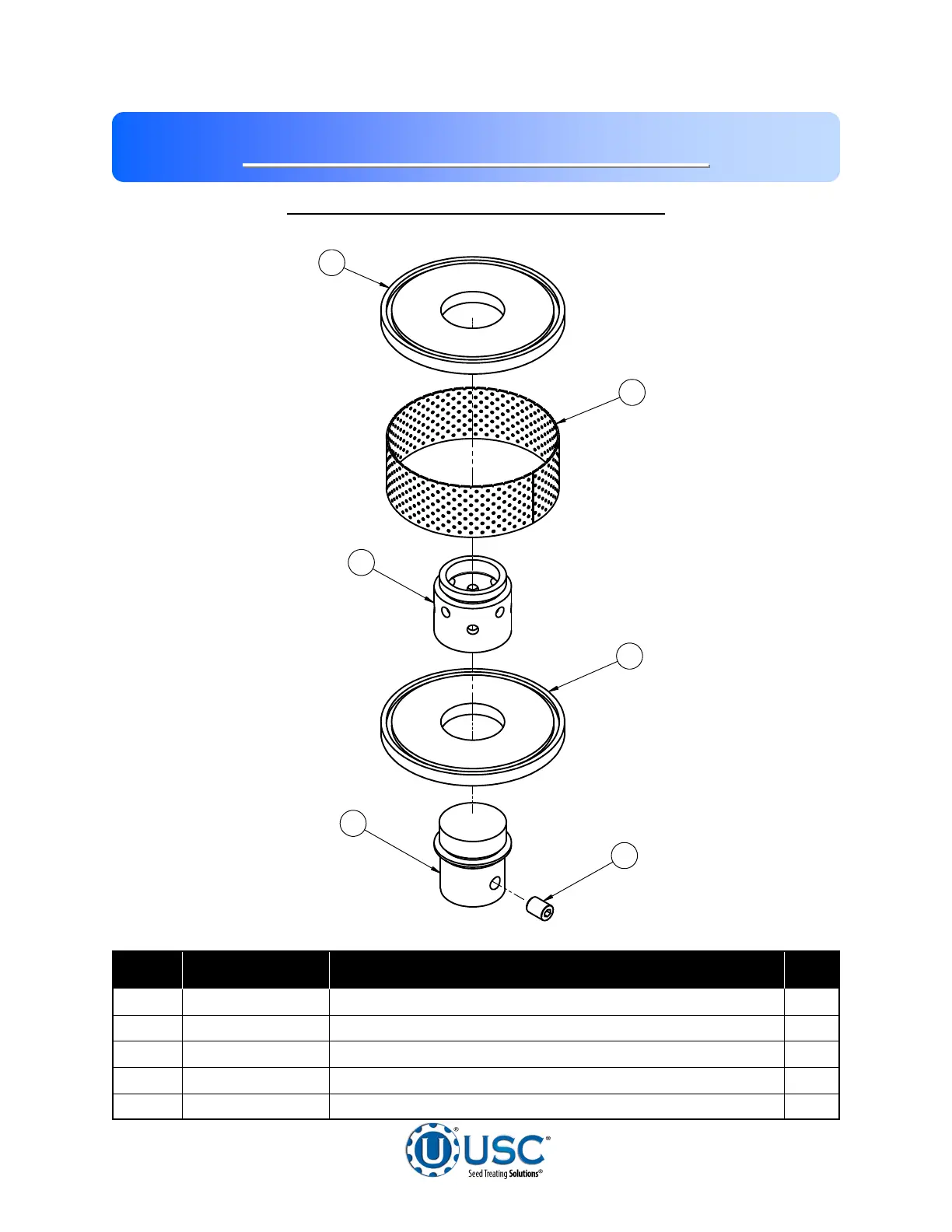

ATOMIZER HEAD ASSEMBLY (04-02-0004)
