USC LPX 2000 - Page 108

Page 108
LPX SEED TREATER

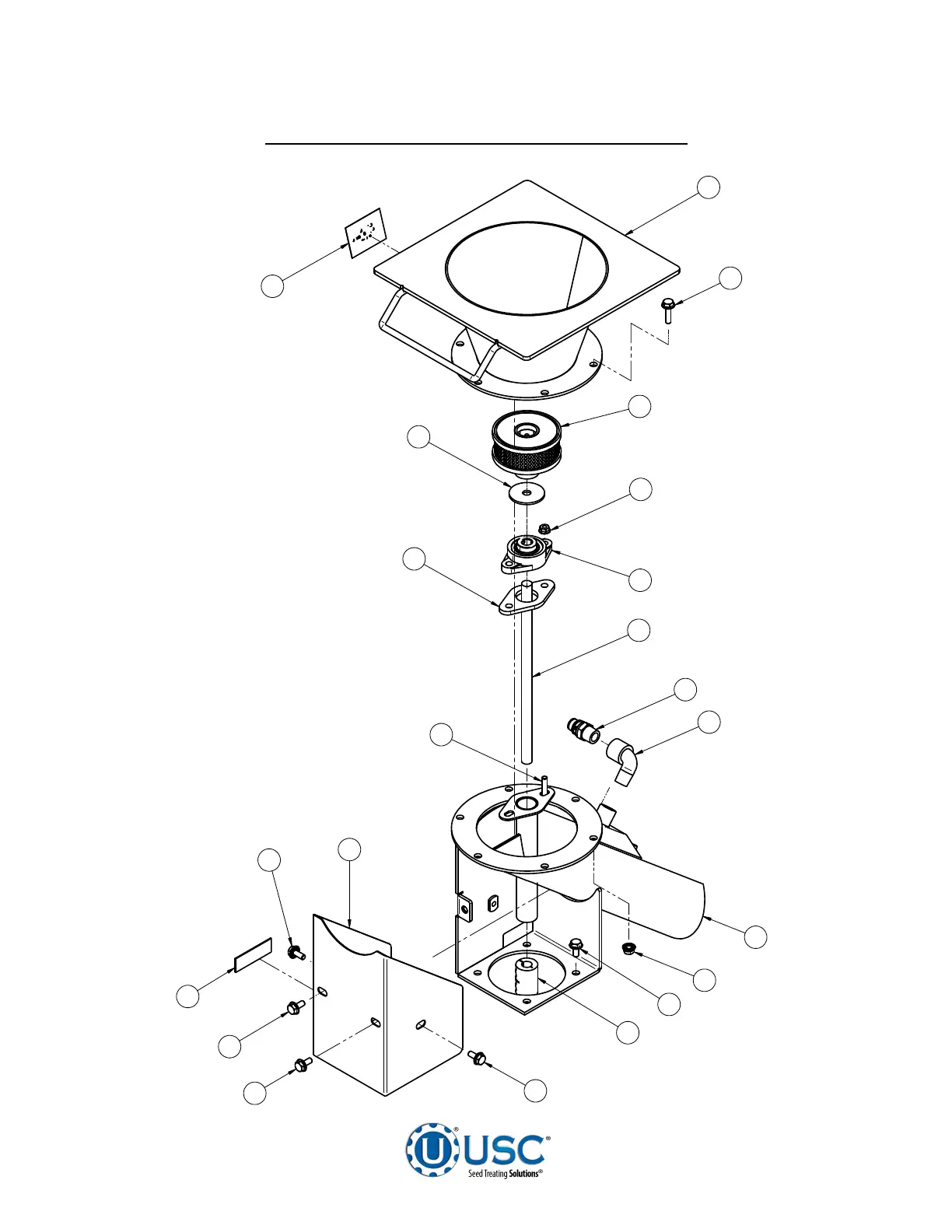

LPX300 SS ATOMIZER ASSEMBLY (18-01-0202)
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/08/2015
TITLE
SIZE
D
DWG NO
File Name:18-01-0202 = LPX300 SS Atomizer (A1).dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C
, L L C.
Sabetha, Kansas 66534 USA
18-01-0202
ASSY ATMZR LPX300 SS
Printed 01/08/15 at 9:07
A
REV
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/08/2015
TITLE
SIZE
D
DWG NO
File Name:18-01-0202 = LPX300 SS Atomizer (A1).dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C
, L L C.
Sabetha, Kansas 66534 USA
18-01-0202
ASSY ATMZR LPX300 SS
Printed 01/08/15 at 9:07
A
REV
REVISION HISTORY
REV ECN DESCRIPTION DATE BY
A INITIAL DRAWING 04-23-2012 BMI
A ASSIGNED PART # TO DRIVE SHAFT 5-15-12 MLH
001 ADDED 05-10-2462 AND
CORRECTED HARDWARE
11/5/2014 martyh
Item# Doc# Rev Title Qty
1 01-03-0002 A BRG FLG MNT .625ID 3.875 BASE 1
2 01-07-0027 A CPLG CLPN .625 X .625 SPLT CS 1
3 02-06-0017 A FTTG 90 DEG STRT .500NPT PPE BLK 1
4 02-15-0014 A FTTG CPLG .500 NPT QCK DISC INSERT 1
5 04-02-0004 A ASSY,ATOMIZER HEAD,4" COTTON 1
6 05-10-0805 A DISK ATOMIZER MOTOR 1
7 05-10-2462 A SEAL RBBR .625 FLG BRG 1
8 06-01-0102 A BOLT .313-18 X 1.25 ZP GR5 2
9 06-01-0124 A BOLT, FLG .375-16 UNC ZP GRADE 5; 3/4" LG 8
10 06-01-0189 A BOLT, FLG .375-16 UNC ZP GRADE 5; 1-1/4" LG 6
11 06-03-0014 A NUT LOCK FLG .375-16 ZP GR5 6
12 06-03-0019 A NUT LOCK FLG .3125-18 ZP GR5 2
13 09-01-0107 A LBL ATWK PATENT DECAL-ATMZR 1
14 09-02-0004 A ATWK LBL GRS 40HRS 1
15 1008F2 A SHAFT DRV ATMZR LPX300 1
16 1027B9 A PLT CVR ATMZR DRV LPX300 1
17 18-01-0203 A WDMT ATMZR CONE LPX300 SS 1
18 18-01-0204 A WDMT ATMZR CHUTE LPX300 SS 1
9
9
9
9
10
12
7
17
14
6
5
1
15
4
3
8
18
11
2
9
13
16
