LPX SEED TREATER
TREATING SEED

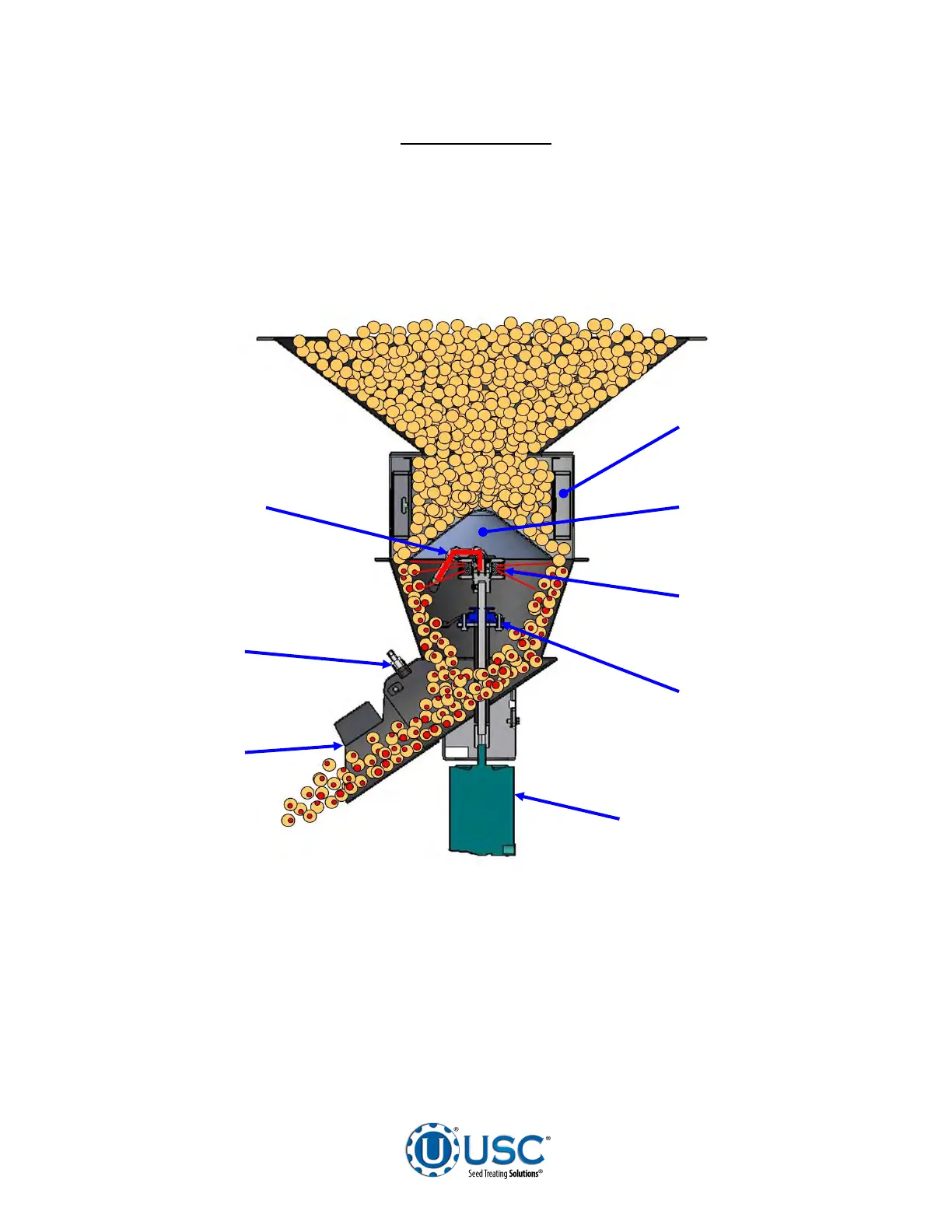

The Illustration below shows how seed passes through the atomizing chamber.
The red represents treatment being dispensed to the seed as it passes through the
chamber. After the seed passes through the atomizer, it goes into the drum where
the coating process is completed.
Atomizer
Head
Distribution
Cone
Bearing
Inoculant
Port
Seed
Treatment
Line
Seed Gate
Atomizer
Chute
Atomizer
Motor
