USC LPX 2000 - Page 72

Page 72
LPX SEED TREATER

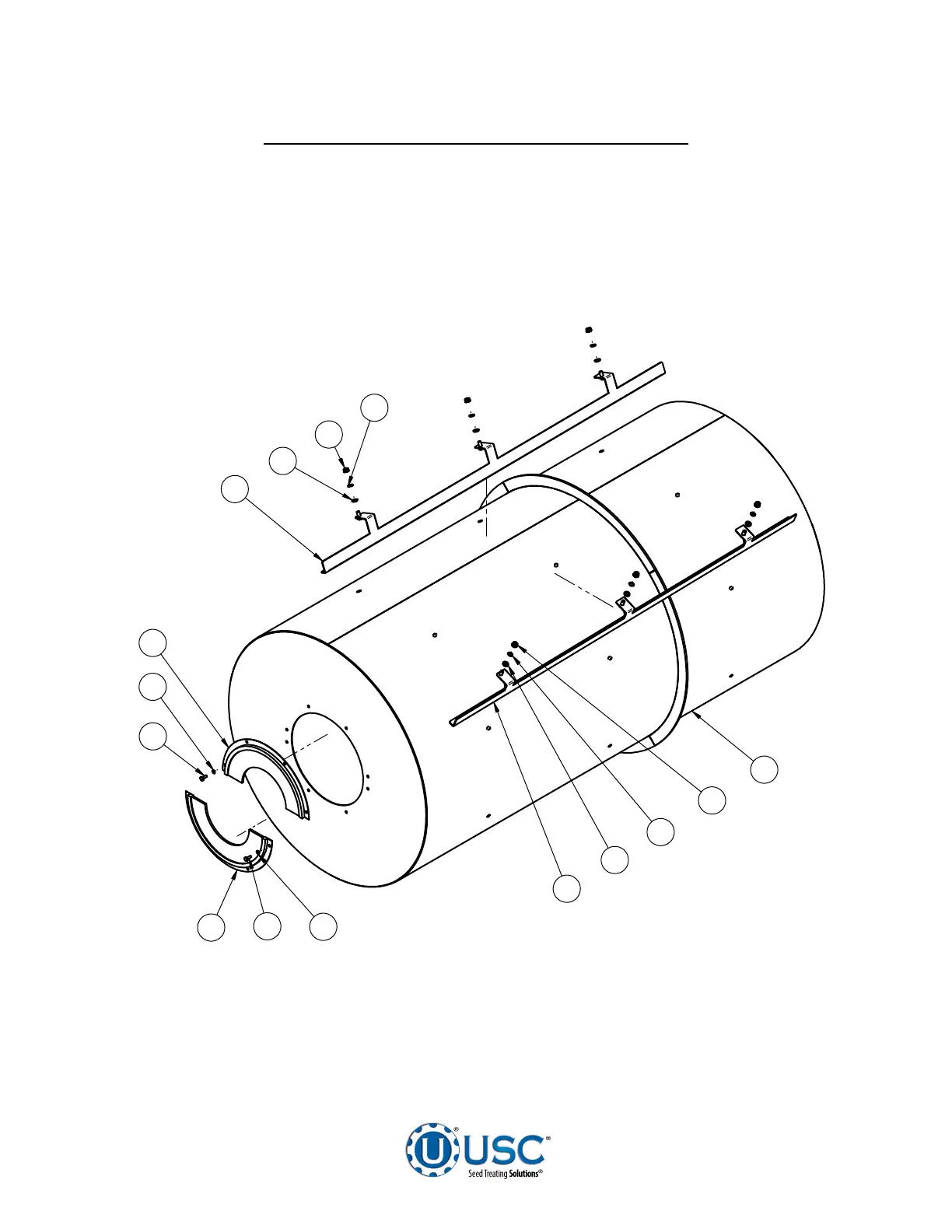

LPX800 & LPX2000 6 FOOT DRUM ASSEMBLYS
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
± 1/16
.XX=±.06
.XXX=±.03
.XXXX=±.005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/22/2013
TITLE
SIZE
D
DWG NO
File Name:18-01-0045B - Manual.dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
18-01-0045B
ASSY DRUM LPX2000 6FT SS
Printed 01/22/13 at 11:58
B
REV
± 1/16
.XX=±.06
.XXX=±.03
.XXXX=±.005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/22/2013
TITLE
SIZE
D
DWG NO
File Name:18-01-0045B - Manual.dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
18-01-0045B
ASSY DRUM LPX2000 6FT SS
Printed 01/22/13 at 11:58
B
REV
REVISION HISTORY
REV DESCRIPTION DATE BY
A INITIAL DRAWING 07/01/2011 MLH
B ADDED BRUSHES AND FASTENERS 11/17/2011 MADISON
B REVISED PDL BOLTS AND DRM HSG SLOTS 10-8-12 MLH
Item # Part # Rev Title Qty
1 06-01-0003 A BOLT, .250-20 X .750 UNC 18-8 SS 8
2 06-03-0014 A NUT LOCK FLG .375-16 ZP GR5 24
3 06-04-0008 A WSHR LOCK SPLT .375 SS 18-8 6
4 06-04-0009 A WASHER, .250 LOCK 316 SS 8
5 06-04-0013 A WSHR SS BONDED SEALING .375 ID 24
6 06-10-0018 A SEAL BRSH 180 DEG 7.81 OR X 4.00 IR 2
7 18-01-0019 A WDMT DRUM LPX2000 6FT SS 1
8 18-01-0027 B WDMT DRUM PDL TALL 6FT SS 4
9 18-01-0035 B WDMT DRUM PDL SHORT 6FT SS 4
7
9
5
3
2
8
5
3
2
6
6
1
4
1
4
