THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
± 1/16
.XX=±.06
.XXX=±.03
.XXXX=±.005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/23/2013
TITLE
SIZE
D
DWG NO
File Name:18-01-0047C - Manual.dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
18-01-0047

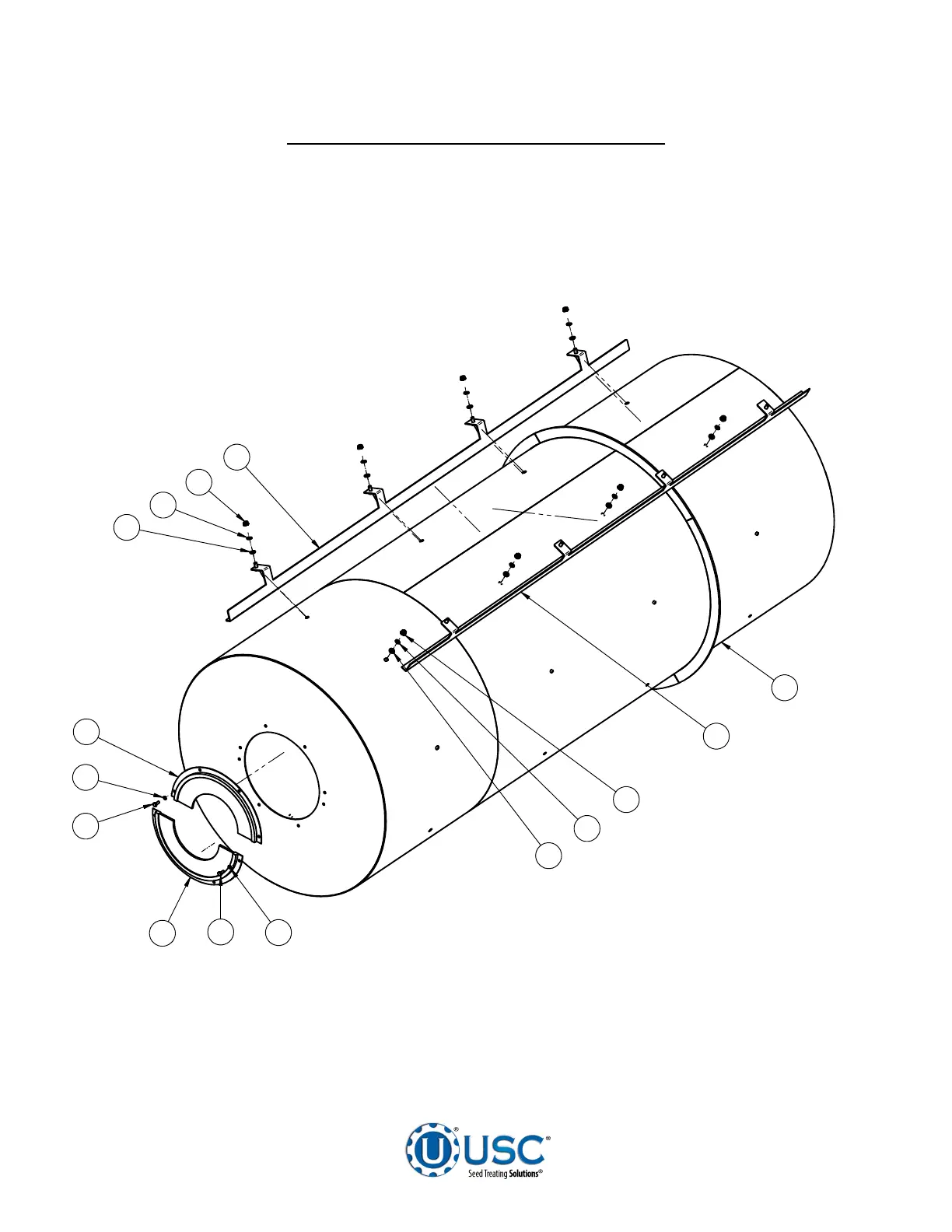

ASSY DRUM LPX2000 8FT SS
Printed 01/23/13 at 17:28
C
REV
± 1/16
.XX=±.06
.XXX=±.03
.XXXX=±.005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/23/2013
TITLE
SIZE
D
DWG NO
File Name:18-01-0047C - Manual.dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
18-01-0047
ASSY DRUM LPX2000 8FT SS
Printed 01/23/13 at 17:28
C
REV
REVISION HISTORY
REV DESCRIPTION DATE BY
A INITIAL DRAWING 8-9-11 MLH
C NEW DRUM & PADDLES 04-05-2012 BMI
C REVISED DRM HSG SLOTS10-8-12 MLH
Item
#
Part # Rev Title Qty
1 06-01-0
003
A BOLT, .250-20 X .750 UNC
18-8 SS
8
2 06-03-
0014
A NUT LOCK FLG .375-16 ZP
GR5
32
3 06-04-
0008
A WSHR LOCK SPLT .375 SS
18-8
32
4 06-04-
0009
A WASHER, .250 LOCK 316 SS 8
5 06-04-
0013
A WSHR SS BONDED SEALING
.375 ID
32
6 06-10-0
018
A SEAL BRSH 180 DEG 7.81 OR
X 4.00 IR
2
7 18-01-01
86
A WDMT DRUM LPX2000 8FT
SS
1
8 18-01-01
93
A WDMT DRUM PDL SHORT 8FT
SS
4
9 18-01-01
95
A WDMT DRUM PDL TALL 8FT
SS
4
9
2
3
5
4
1
4
1
6
6
7
8
2
3
5
To Next Page
