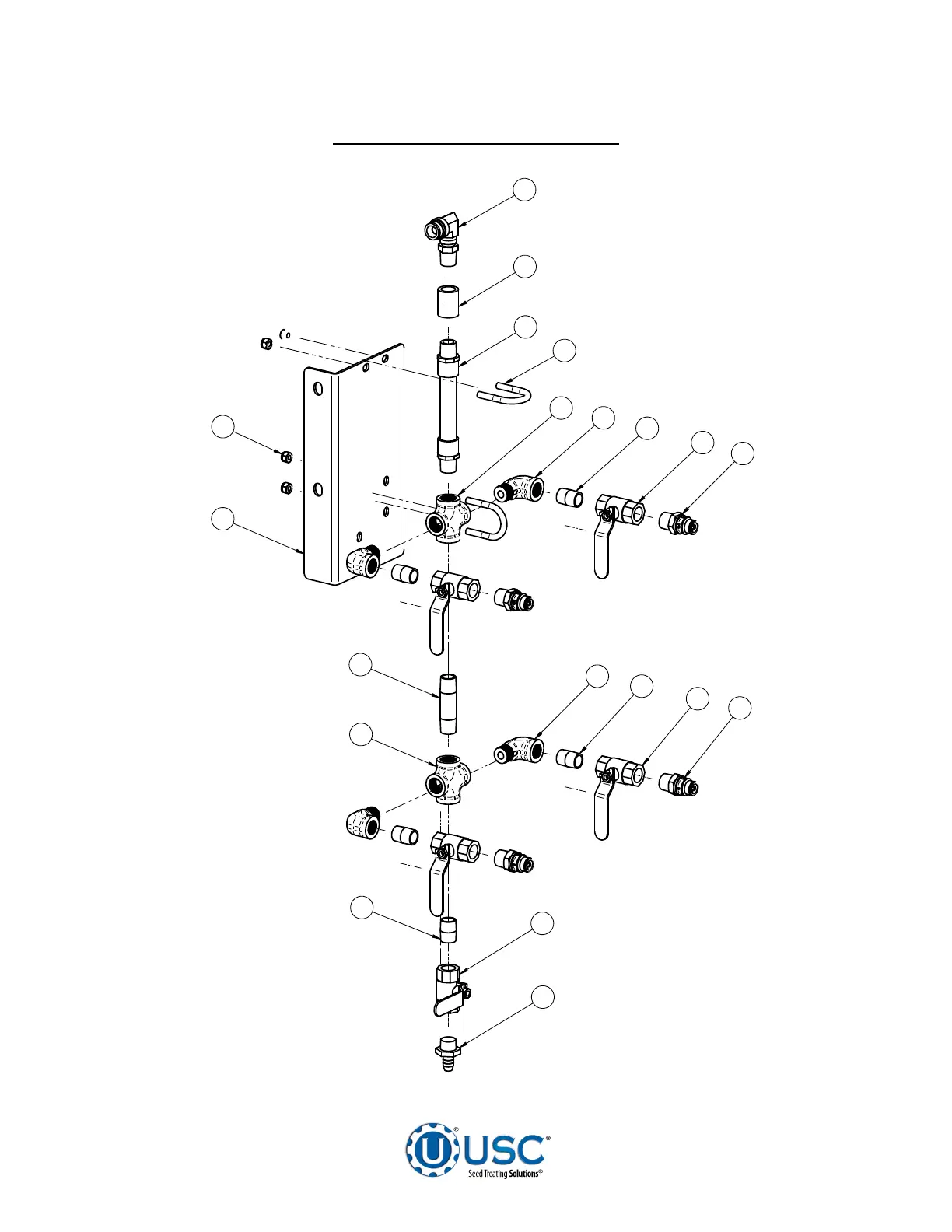

LPX SEED TREATER
LPX STATIC MIXER (04-03-0157)
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/24/2013
TITLE
SIZE
D
DWG NO
File Name:04-03-0157 - 180 Mount.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
Printed 01/24/13 at 15:29
REV
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/24/2013
TITLE
SIZE
D
DWG NO
File Name:04-03-0157 - 180 Mount.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
Printed 01/24/13 at 15:29
REV
REVISION HISTORY
REV ECN DESCRIPTION DATE BY
A INITIAL DRAWING
Item # Part # Rev Title Qty
1 02-02-0006 A VLV BALL .500 NPT 2WAY BRSS 5
2 02-05-0005 A COUPLER, .500-14 FEMALE,SS 150PSI 1
3 02-06-0020 A FTTG 90 DEG STRT .500NPTX .500NPT 4
4 02-07-0007 A FTTG NIP .500 NPT X 1.125 TBE SS 1
5 02-07-0007 A FTTG NIP .500 NPT X 1.125 TBE SS 4
6 02-07-0019 A NIPPLE, .500-14 NPT X 3.0 LG 304SS 1
7 02-08-0007 A FTTG STGHT .500HB X .500NPT ML NYL 1
8 02-11-0001 A FTTG CROSS .500 NPT FM SS 2
9 02-15-0014 A FTTG CPLG .500 NPT QCK DISC INSERT 4
10 02-16-0050 A FTTG PUSH 90DEG .625ODX.500 NPT ML 1
11 04-03-0030 A MXR IL PVC 6ELEMENT .500PIPE X 7.00 1
12 05-10-2891B B STATIC MIXER & MNFLD MNT BRKT 1
13 06-01-0037 A BOLT U .313-18 X 1.38 X 2.188 ZP 2
14 06-03-0002 A NUT NYL LOCK .313-18 ZP GR5 4
