LPX SEED TREATER

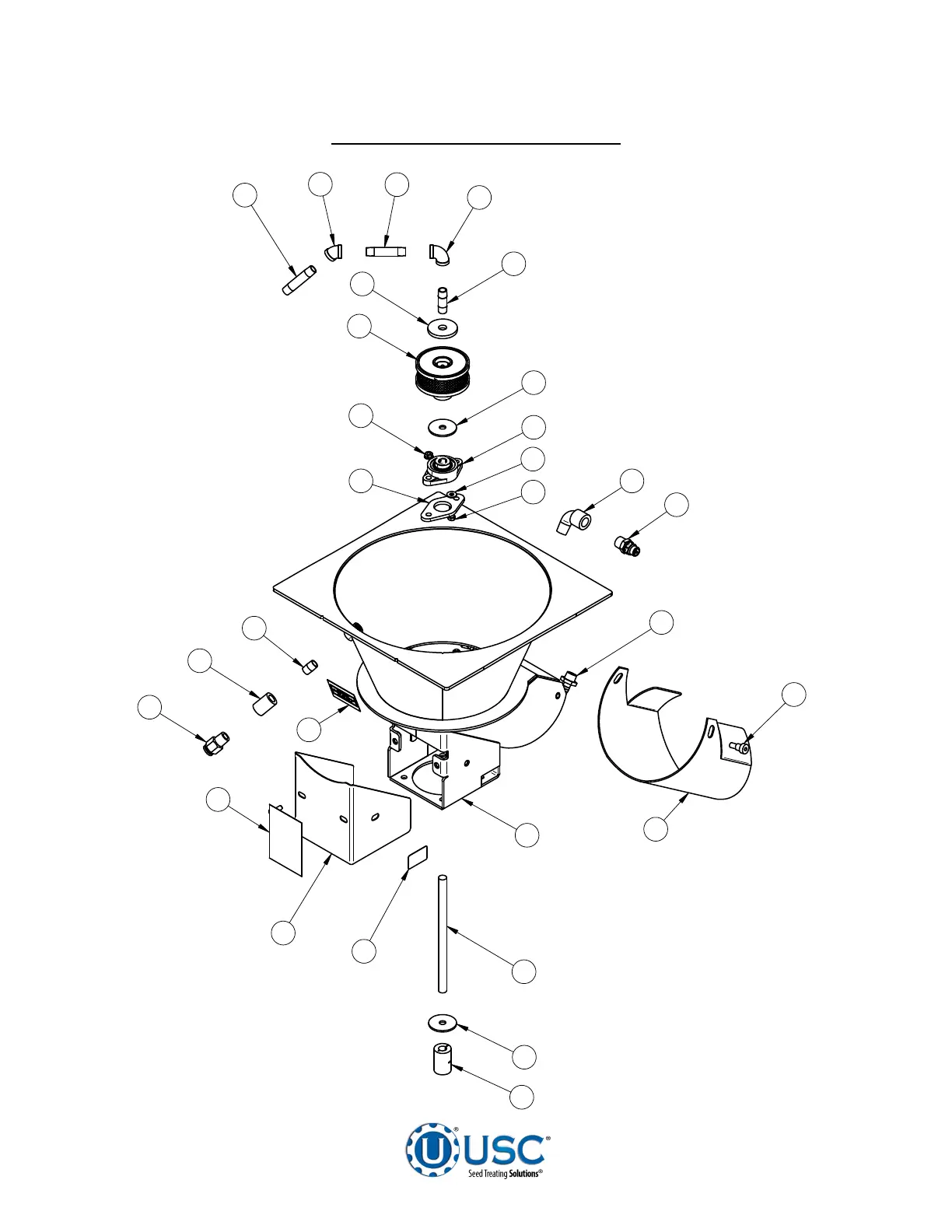

LPX2000 ATOMIZER ASSEMBLY
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
05/19/2014
TITLE
SIZE
D
DWG NO
File Name:18-01-0069B = LPX2000 CS Atomizer .dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
18-01-0069
ASSY ATMZR LPX2000 CS
Printed 05/19/14 at 14:50
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
05/19/2014
TITLE
SIZE
D
DWG NO
File Name:18-01-0069B = LPX2000 CS Atomizer .dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
18-01-0069
ASSY ATMZR LPX2000 CS
Printed 05/19/14 at 14:50
REV
B
REV
B
8
3
8
4
7
14
13
16
1
23
20
6
26
28
2
18
29
15
19
10
17
25
22
Item # Doc # Rev Title Qty
1 01-03-0002 A BRG FLG MNT .625ID 3.875 BASE 1
2 01-07-0027 A CPLG CLPN .625 X .625 SPLT CS 1
3 02-06-0007 A ELBOW, .375-18 NPT, 45 DEG. SS 1
4 02-06-0008 A FTTG 90 DEG .375NPT FM SS 1
5 02-06-0017 A 1/2-14 NPT,SL 90 DEG. BP 1
6 02-07-0001 A NIPPLE, .375 NPT SCH. 40 304 SS 1
7 02-07-0003 A FTTG NIP .375 NPT X 2.00 TBE SS 1
8 02-07-0020 A NIPPLE, 3/8-18 NPT X 3.00 SS 2
9 02-08-0007 A FTTG STGHT .500HB X .500NPT ML NYL 1
10 02-15-0014 A FTTG CPLG .500 NPT QCK DISC INSERT 1
11 02-16-0028 A FTTG PUSH .625OD X .500 NPT ML 1
12 02-16-0052 A FTTG CPLG RDCG .500NPT X .375NPT SS 1
13 04-02-0004 A ASSY,ATOMIZER HEAD,4" COTTON 1
14 05-10-0360 A DISC STD ATMZR HEAD CVR 1
15 05-10-0366 B LP2000 ATMZR EXT CHUTE FOR BRUSH 1
16 05-10-0805 A DISK ATOMIZER MOTOR 2
17 05-10-2462 A SEAL RBBR .625 FLG BRG 1
18 05-10-2816 B LP2000 MTR GUARD FLEX CPLG 1
19 06-01-0056 A BOLT SHLD .500SHX.375-16X.500 GR5 2
20 06-01-0102 A BOLT .313-18 X 1.25 ZP GR5 2
21 06-01-0124 A BOLT, FLG .375-16 UNC ZP GRADE 5; 3/4" LG 4
22 06-03-0019 A NUT LOCK FLG .3125-18 ZP GR5 2
23 06-05-0001 A WASHER, FLAT .250 2
24* 09-01-0107 A LBL ATWK PATENT DECAL-ATMZR 1
25 09-02-0002 A ATWK LBL DANGER GUARDS 1
26 09-02-0004 A ATWK LBL GRS 40HRS 1
27 09-02-0013 A ATWK LBL ROTATION ARROW 1
28 101FAF A SHAFT DRV ATMZR LPX2000 1
29 18-01-0065 B WDMT ATMZR LPX2000 CS 1
REVISION HISTORY
REV DESCRIPTION DATE BY
A INITIAL DRAWING 4-21-11 MLH
B CHANGED TO SHOULDER BOLT FOR CHUTE EXTENSION 7-13-12 MLH
001 CHANGED PIPE LENGTHS 3/20/2013 martyh
002 CHANGED NIPPLE FROM 4", ADDED 02-08-0007,05-10-0805,
09-02-0002,09-02-0013, REMOVED 06-05-0005
10/16/2013 martyh
003 CHANGED 02-07-004 AND 02-07-0005 TO 02-07-0020 1/16/2014 martyh
5
12
11
27
16
9
