THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
± 1/16
.XX=±.06
.XXX=±.03
.XXXX=±.005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
10/30/2013
TITLE
SIZE
D
DWG NO
File Name:18-01-0062 = LPX2000 ADJ CHMBR.dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
18-01-0062
ASSY ADJ CHMBR LPX2000 CS
Printed 10/07/14 at 14:23
A
REV
± 1/16
.XX=±.06
.XXX=±.03
.XXXX=±.005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
10/30/2013
TITLE
SIZE
D
DWG NO
File Name:18-01-0062 = LPX2000 ADJ CHMBR.dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
18-01-0062
ASSY ADJ CHMBR LPX2000 CS
Printed 10/07/14 at 14:23
A
REV
Item # Part # Rev Title Qty
1 05-03-0336 B WDMT,CHAMBER SUPPORT BRK SS 1
2 05-04-0012 A WDMT FLOW SLV ROD END TUBE 1
3 05-10-2062 BAR ECNTRC CONNECTING CS 1
4 05-11-0029 A CPLG QCK CONNECT MACH 1
5 05-11-0030 A BRKT FLOW CNTL CLEVIS 1
6 05-11-0034 D ROD FLOW STOP ADJ 1
7 06-01-0016 A BOLT .375-16 X 1.00 ZP GR5 4
8 06-01-0025 A BOLT .500-13 X 1.50 ZP GR5 1
9 06-01-0056 A BOLT SHLD .500SHX.375-16X.500 GR5 2
10 06-01-0057 A BOLT SHLD .500SHX.375-16X1.50 GR5 1
11 06-01-0081 A BOLT SHLD .313SHX.250-20X.375 GR5 2
12 06-01-0102 A BOLT .313-18 X 1.25 ZP GR5 1
13 06-01-0116 A BOLT .375-16 X 2.75 ZP GR5 4
14 06-02-0002 A NUT FULL .313-18 ZP GR5 1
15 06-02-0015 A NUT JAM .500-20 ZP GR5 1
16 06-02-0035 A NUT, .375-24 UNF ZP GRADE 5 4
17 06-03-0003 A NUT NYL LOCK .375-16 ZP GR5 4
18 06-03-0004 A NUT NYL LOCK .500-13 ZP GR5 1
19 06-03-0006 A NUT NYL LOCK .438-14 ZP GR5 1
20 06-04-0003 A WSHR LOCK SPLT .375 ZP 8
21 06-12-0002 A REND .375-24 BALL RH 4
22 06-12-0003 A REND .375-24 BALL RH 4
23 06-12-0006 A NUT,.375-24 x 2,ALUM RH_LH CONNECT 4
24 06-12-0007 A BUSH DRILL.375ID X .625OD X .625 4
25 06-12-0008 A CLVS .500-20 X .500 1
26 06-12-0009 A PIN CLIP SPRING .500 1
27 06-12-0012 A BUSH FLG BRZ .500ID X .625OD X .375 3
28 18-01-0060 A WDMT ADJ CHMBR LPX2000 CS 1
29 18-01-0108 A WDMT FLOW SLV HNDL LPX 1

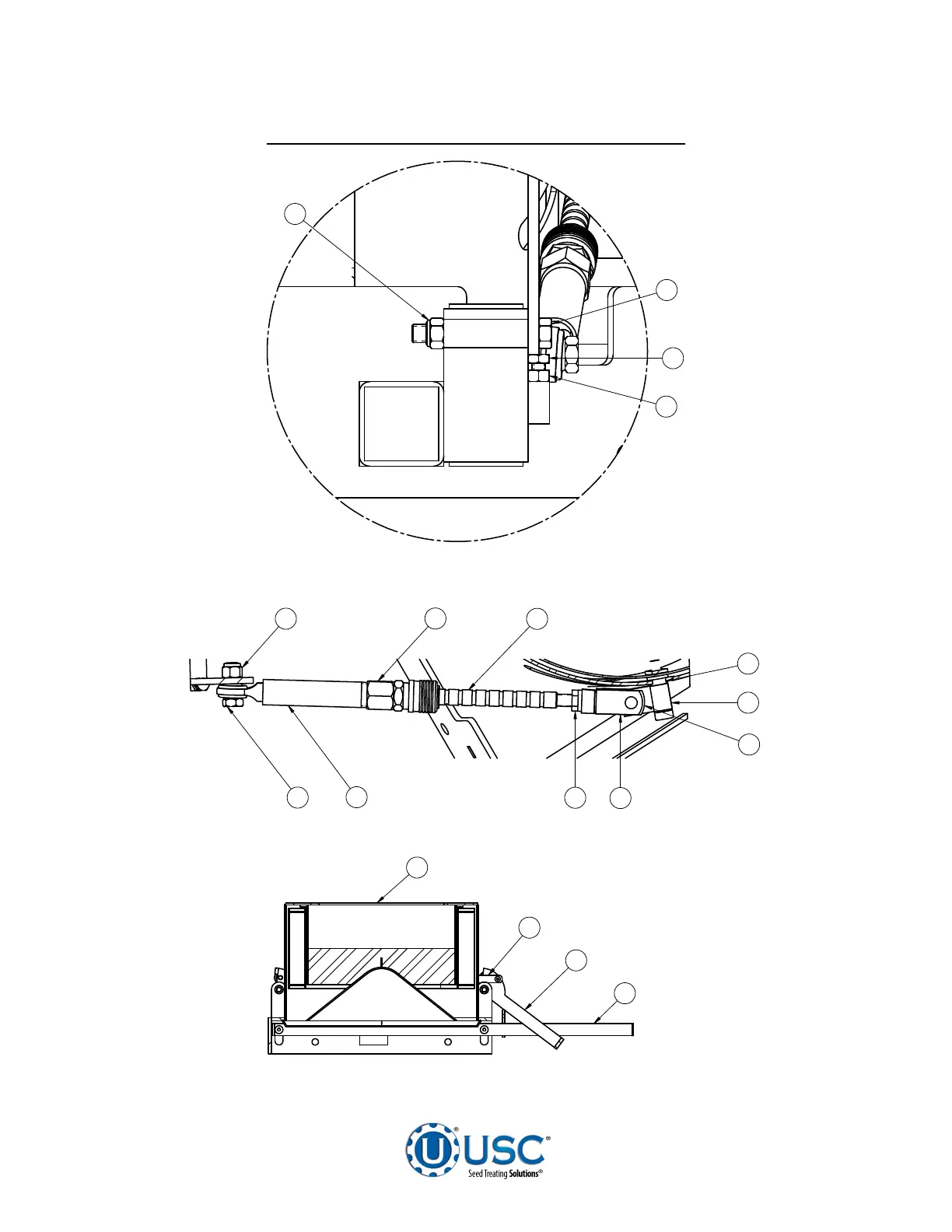

DETAIL D
SECTION E-E
18
8
2
4
6
15
25
25
5
27
29
14
12
19
SECTION F-F
28
1
28
3
To Next Page
