IM 25.055AC UA (C/6-01)
AUTOMATIC CHLORINATOR - 3000LB/24HR
12

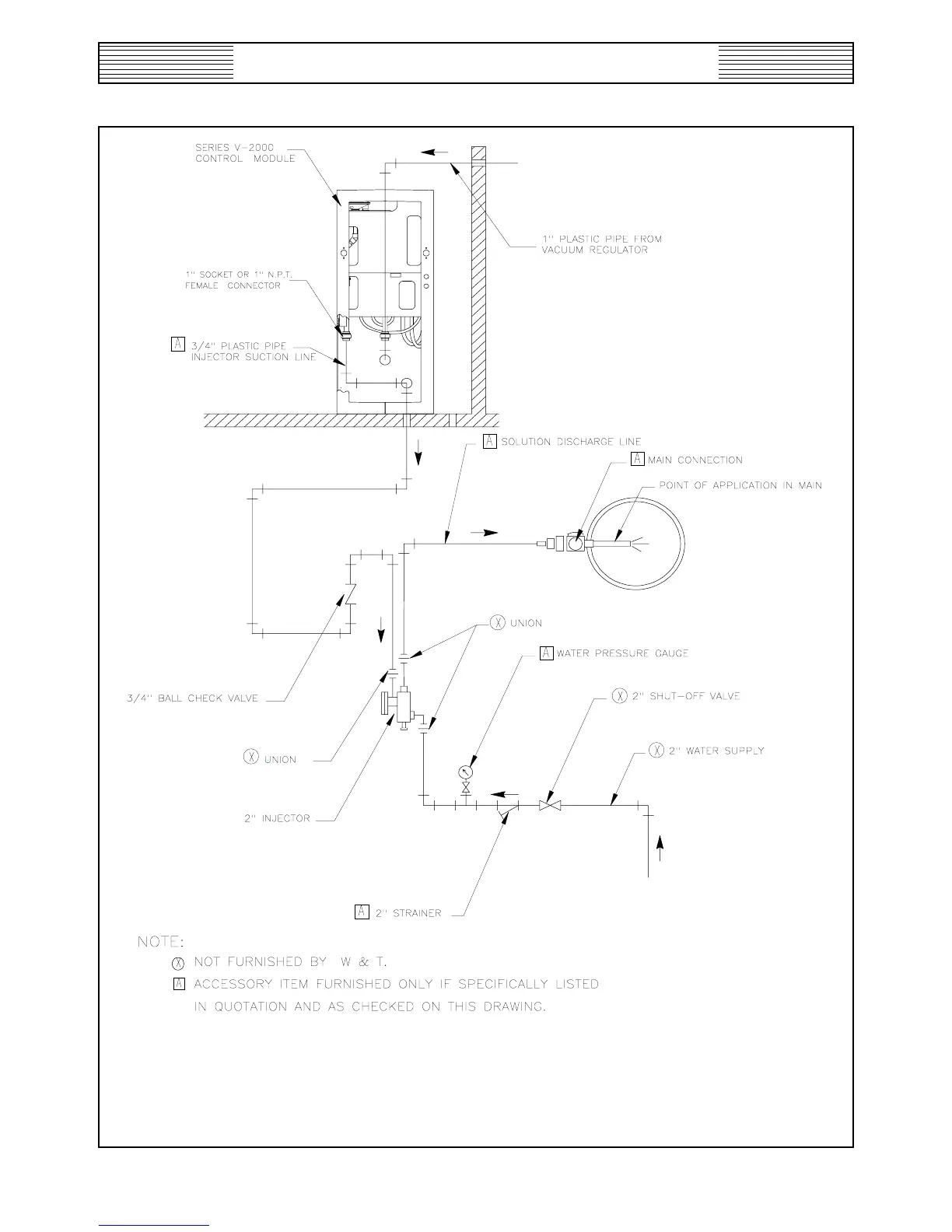

SERIES V-2000 GAS FEEDER - TYPICAL INSTALLATION
With 2" Injector
25.055.110.070
ISSUE 2 02-00
