USFilter V-2000 - Pressure Relief Valve

IM 25.055AC UA (C/6-01)
AUTOMATIC CHLORINATOR - 3000LB/24HR
26
V-NOTCH VARIABLE ORIFICE
VACUUM DIFFERENTIAL
REGULATING VALVE
26" TO 58"
WATER VACUUM
14" TO 42"
WATER VACUUM
VACUUM SUPPLY GAUGE
13" TO 48" WATER VACUUM
INJECTOR VACUUM GAUGE
6" MERCURY MINIMUM (6.5"
MERCURY MINIMUM FOR FEED
RATES ABOVE 2000 LBS CHLORINE
PER 24HRS OR EQUIVALENT FOR
OTHER GASES.)
ROTAMETER
MANUAL FEED
RATE ADJUSTER
PRESSURE VENT
PRESSURE CHECK -
PRESSURE RELIEF VALVE,
OPENS AT: 10" TO 20"
WATER PRESSURE
13" TO 35"
WATER VACUUM
STANDARD
V
ACUUM REGULATOR
OPERATING
GAS MANIFOLD
AUTOMATIC SWITCHOVER
VACUUM REGULATOR
(SWITCHOVER: 32" TO 42"
WATER)
STANDBY
GAS MANIFOLD
2" INJECTOR
INJECTOR WATER SUPPLY
SOLUTION DISCHARGE

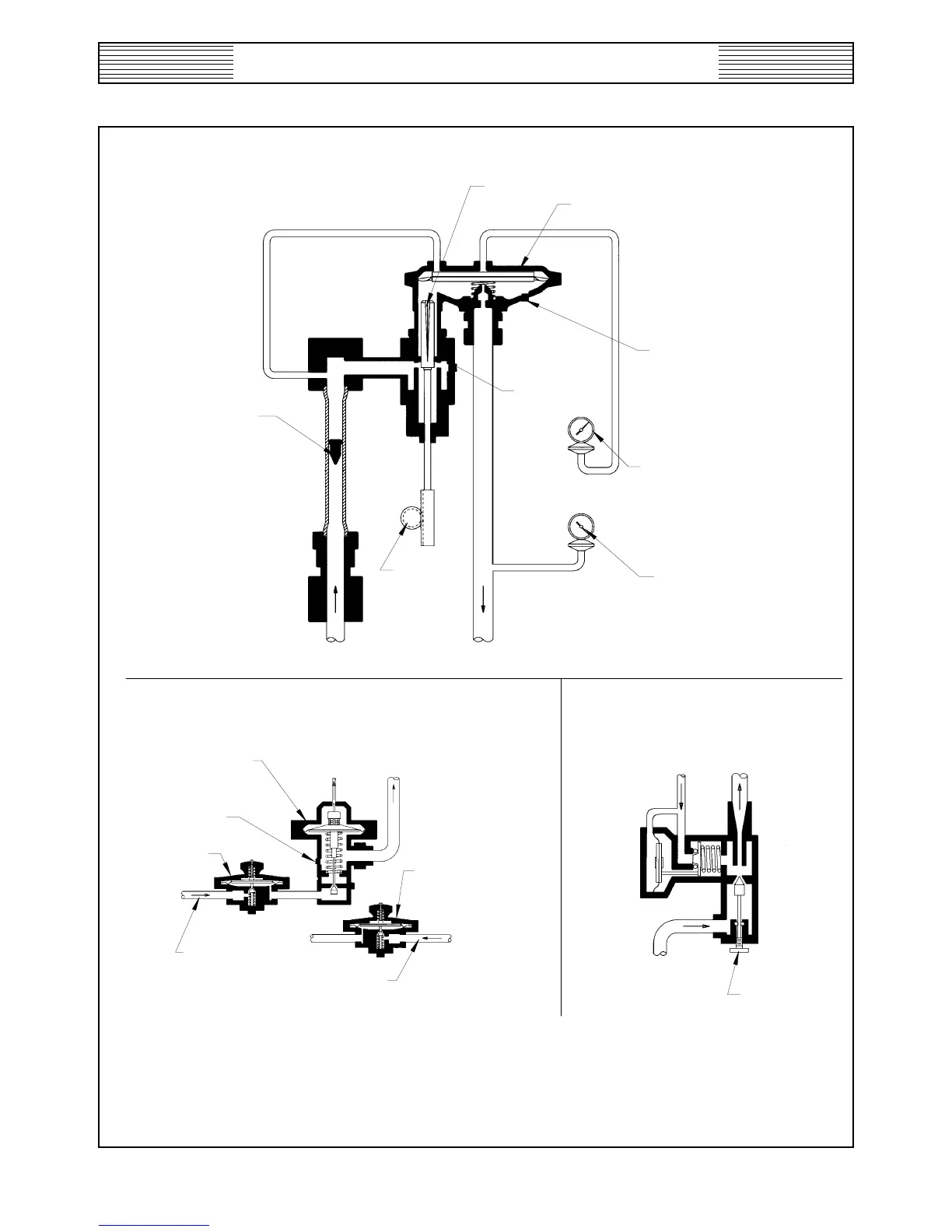

WALL-MOUNTED GAS FEEDER - FLOW DIAGRAM
25.055.181.010
ISSUE 1 5-97
