IM 25.055AC UA (C/6-01)
AUTOMATIC CHLORINATOR - 3000LB/24HR
60

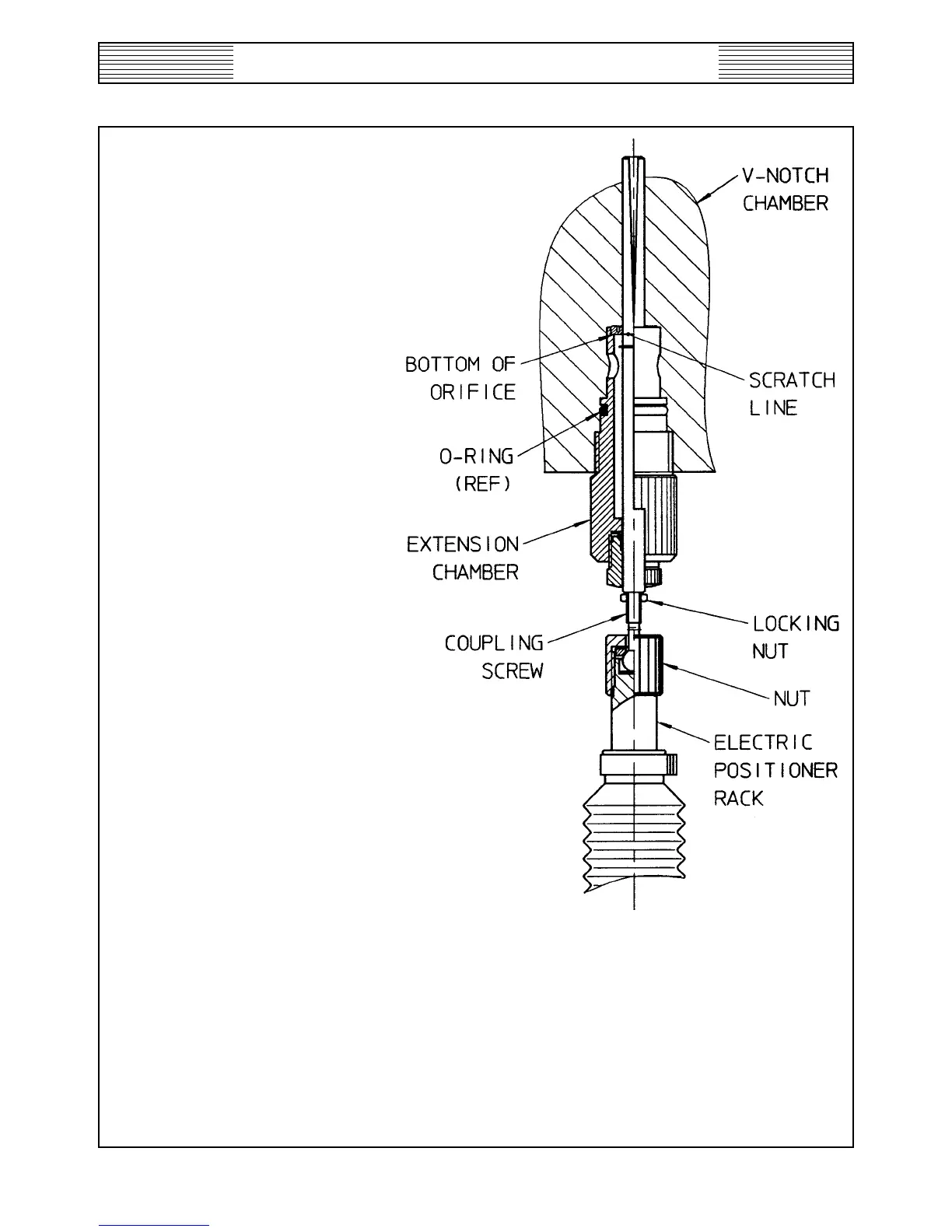

THE PLUG IS AT THE ZERO POSITION WHEN THE
SCRATCH LINE ON THE PLUG IS IN LINE WITH THE
BOTTOM OF THE ORIFICE. THIS RESULTS WHEN THE
ELECTRONIC CONTROLLER IS RECEIVING A ZERO
SIGNAL. IF ADJUSTMENTS ARE NECESSARY:
A. RETRACT RACK AND THEN LOOSEN NUT.
B. UNSCREW THE EXTENSION CHAMBER CONTAIN-
ING THE V-NOTCH PLUG AND ORIFICE.
C. LINE UP THE SCRATCH LINE ON THE PLUG WITH
THE BOTTOM OF THE ORIFICE.
D. CAREFULLY REINSTALL THE EXTENSION CHAM-
BER INTO THE UNIT.
E. LOOSEN LOCKING NUT AND SCREW COUPLING
SCREW COMPLETELY IN.
F. USE ELECTRICAL SIGNAL FROM CONTROLLER TO
POSITION RACK AT ZERO FEED POSITION.
G. ADJUST BALL AND SCREW FOR CORRECT ALIGN-
MENT BETWEEN THE ACTUATOR AND THE PLUG.
H. ATTACH THE NUT AND TIGHTEN.
AUTOMATIC CONTROL UNIT - SERVICE
Zero Position of Plug
25.200.150.010
ISSUE 0 10-95
