USFilter V-2000 - Page 27

IM 25.055AC UA (C/6-01)
AUTOMATIC CHLORINATOR - 3000LB/24HR
17

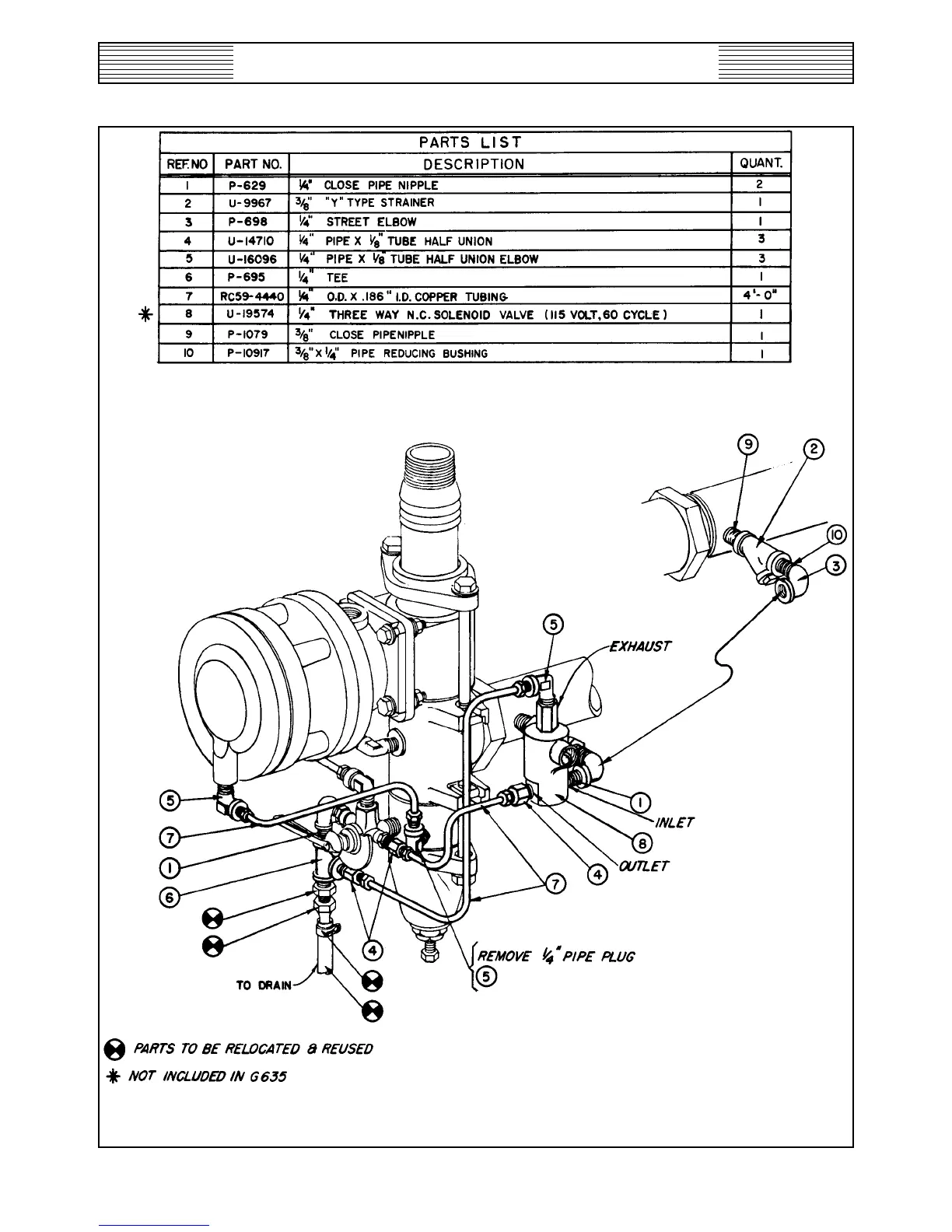

2" INJECTOR - INSTALLATION PIPING
Connections for Intermittent Start-Stop Operation
With Injector Suction Shut-Off Unit
25.100.006.152
ISSUE 2 8-92
