IM 25.055AC UA (C/6-01)

AUTOMATIC CHLORINATOR - 3000LB/24HR

73

NOTE: FOR PARTS LIST, SEE DWG. 25.052.001.051B.

U25764 SMALL THROAT

U25765 LARGE THROAT

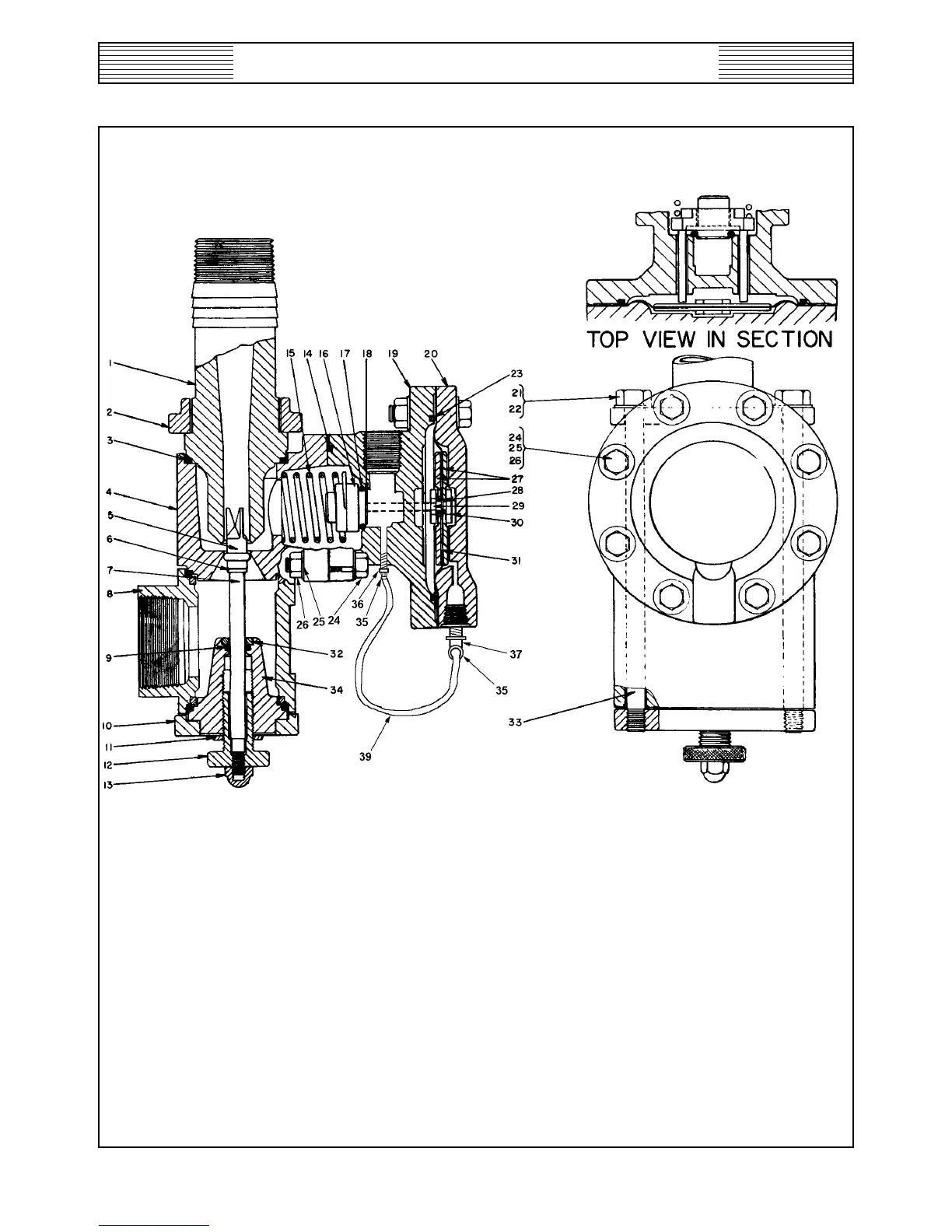

2" INJECTOR - PARTS

With Manually Operated Plug Shut-Off

25.052.001.051A

ISSUE 6 05-00
