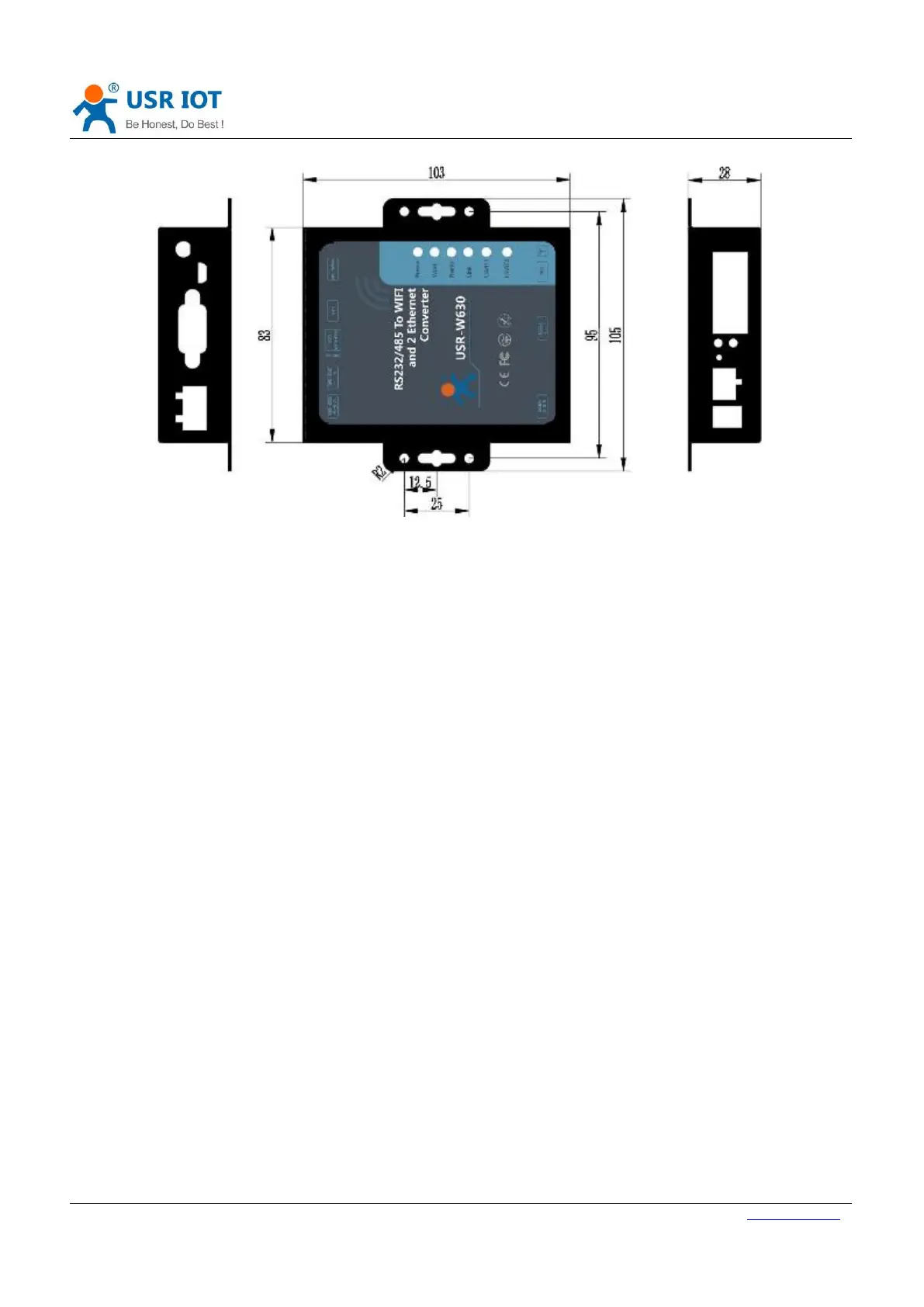

Figure 6 schematic diagram of interface
Serial port (RS232/RS485) to WIFI/ Ethernet.
WIFI remote control / monitoring, TCP/IP and WIFI coprocessor;
WIFI remote control of aircraft, cars and other toys;
WIFI network radio, camera, digital photo frame;
Medical instruments, data acquisition and handheld devices.
WIFI fat scale, smart card terminal, home intelligence;
Instrument and equipment parameter monitoring, wireless POS;
Modern development of agriculture, military and other wireless related two development applications
3. Product Networking Application
The USR-W630 serial server can be configured either as a wireless STA or as an AP. So USR-W630 logically supports
two wireless interfaces, one as STA, the other as an AP, and the other STA can connect to the wireless network
through AP interface of the serial server.
At the same time, serial server provides a 100M Ethernet interface, through this Ethernet port , users can realize the
WIFI port, serial port, Ethernet port, three interfaces interoperability. In terms of networking, USR-W630 module
supports bridging mode and routing mode to correspond to different specific applications.
Therefore, USR-W630 can provide very flexible networking and network topology.
Description
AP: wireless access point, which is the core node of a wireless network. The wireless router is an AP, and other
wireless terminals can be connected to each other via AP.
STA: wireless station, which is a terminal of wireless network. Such as PC , PAD, etc.
