5.1.2. Quick Configuration

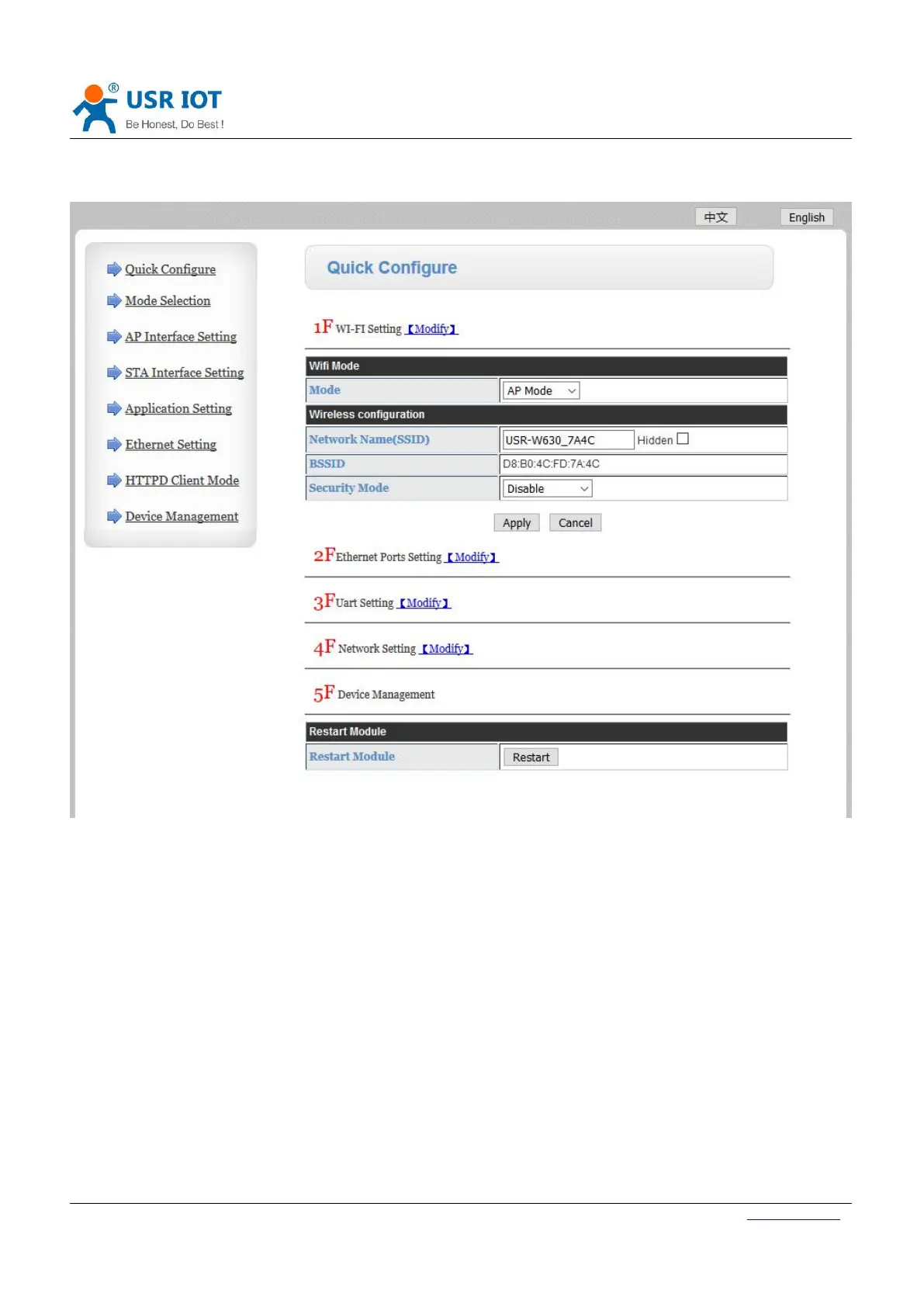

Figure 25 quick configure
The quick configuration page provides users with a quick way to configure the W630. By configuring the parameters
and restarting W630 in accordance with the page steps, W630can work properly, reducing the configuration steps and
time. Of course, there are fewer options on this page. If some details are configured, it should be configured to the
corresponding page.
This page has four options that need to be configured and a restart item.
 Wireless configuration: configuring the working mode of WIFI serial port server WIFI, AP or STA mode.
 Ethernet function configuration: open / close Ethernet port and set the corresponding working mode.
 Serial port configuration: Configuration of serial port parameters of WIFI serial port server, including serial port
baud rate, check bit, 485 functions and so on.
 Network configuration: configure the network parameters of the W630, with only the relevant parameters of
Socket A.
 Module management: when the above parameters are configured, click restart and restart the module.
