3.5. Network Cable Bridge Application (AP)

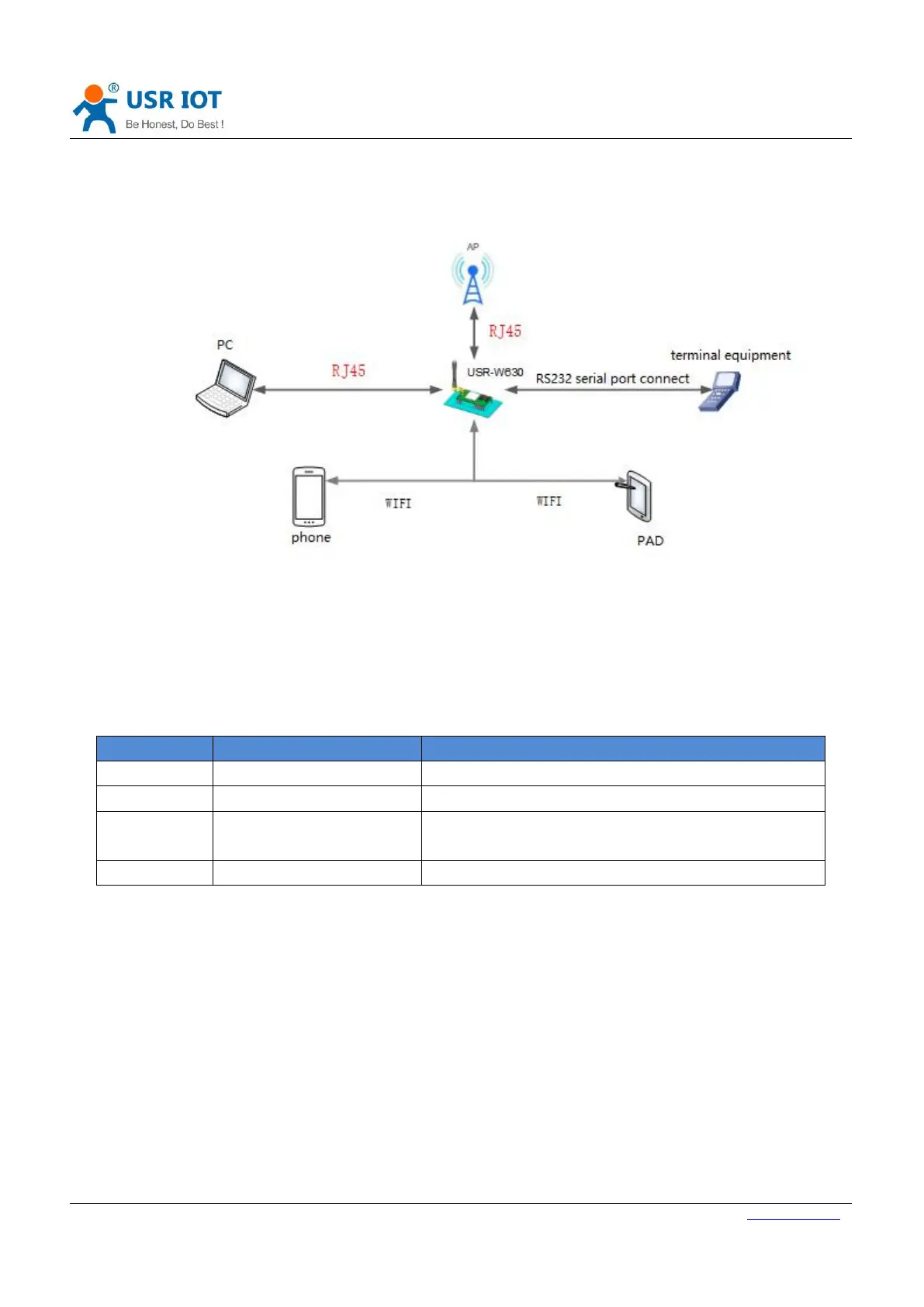

Figure 11 application of network cable bridge
Set USR-W630 work at AP mode, turn off the DHCP server of the module, and the IP is modified to a same network
segment with the router (the "Wireless Access Point Settings" page in the web page has the corresponding options),
and the ports 1 and 2 are set to LAN ports. After setting up, the network port 2 connects to the router, and the
network port 1 connects to the computer. In this way, computers, serial servers and routers are in the same network
segment. The serial server is equivalent to a switch bridge connected to routers and computers.
Table 4 AT commands
No.
Command
Intro
1
AT+WAP
Set the SSID of router
2
AT+WAKEY
Set the password of router
3
AT+LANN
Set the IP of W630 in the same network segment with
the router
4
AT+DHCPDEN=off
Enable the DHCP function of W630
