4b. Compact soener installation
sewer
drain line
brine overflow
overflow hose
przyłącza elastyczne
output
input
pressure gauge
pre-filter
pressure reducer
alternative output to the garden
softener
210-230V
The compact soener should be connected in accordance with the scheme below. We recommend to install a sediment
pre-filter before every device. This will protect the control head against the potential mechanical impurities which can
be present in the feed water.
4. Compact soener

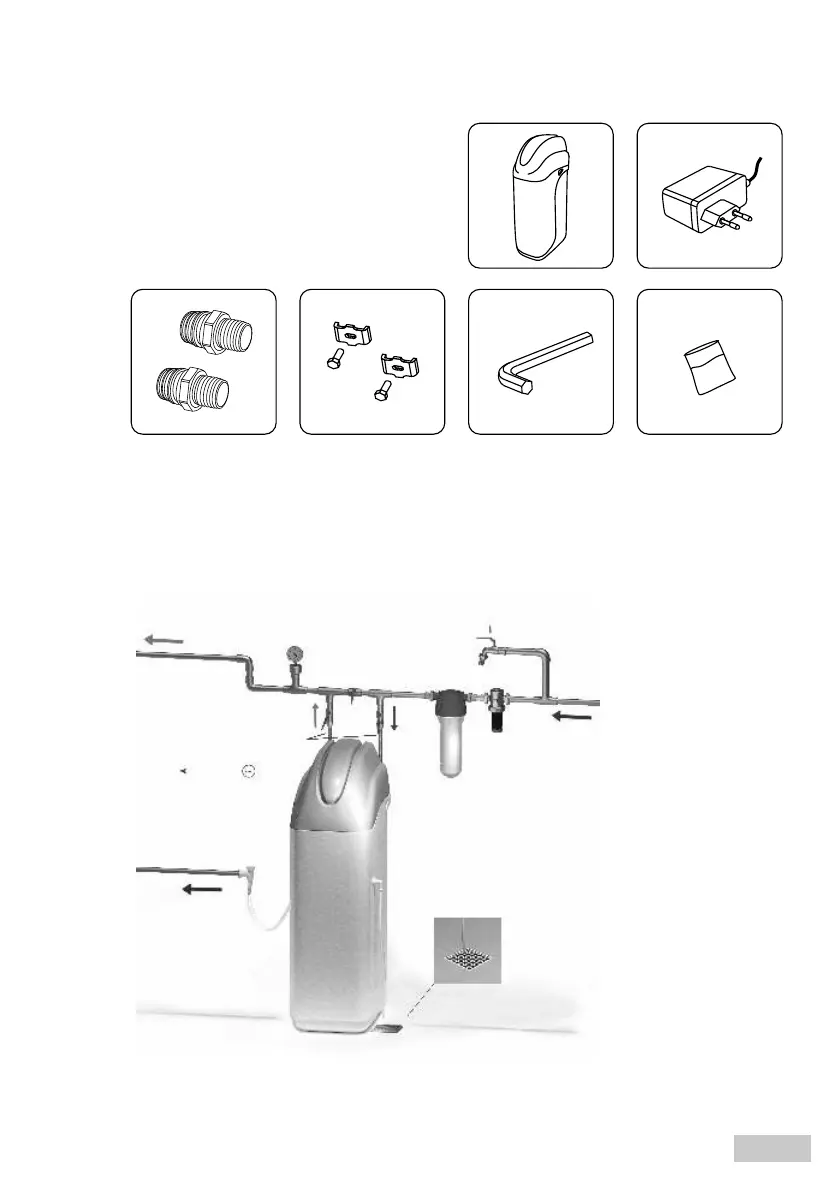

4a. Compact soener components
1. Compact soener
2. By-pass along with accessories:
a. Power supply
b. 1” Connections
c. Fasteners (for connecting the bypass with the head)
d. Allen key
e. Silicone grease
3. Users’ Manual
1.
a
c
d e
b
16
Fig. 2. Soener connection scheme
