UTICA BOILERS DVB-125 - Heat Exchanger

24
Item
#
DESCRIPTION Part Number Qty.
1
LEFT HAND SECTION 100-2-2.01 1
2
CENTER SECTION, -100
100-2-1.01
1
CENTER SECTION, -125 2
CENTER SECTION, -150 2
CENTER SECTION, -200 3
3 RIGHT SECTION 100-2-3.01 1
4
TIE ROD ¼ X 11½, -100 HW-011.01
2TIE ROD ¼ X 15½ -125 & 150 HW-011.03
TIE ROD 1/4X19.1/2 -200 HW-011.05
5 NUT 5/16-18 WISLOCK 6 1330001 6
PIPE FIT BUSH 3/4 X 1/4 NPT 1060002 1
PIPE-NPL 1.1/4X4.1/2 NPT 1310002 1
6
PUSH NIPPLE 2" MACH., -50
43300976
2
PUSH NIPPLE 2" MACH., -100 4
PUSH NIPPLE 2" MACH., -125 &150 6
PUSH NIPPLE 2" MACH., -200 8
9
BAFFLE -50 (2 per Flueway) 3461601 2
BAFFLE -100 (2 per Flueway)
3472301
4
BAFFLE -125 & 150 (2 per Flueway) 6
BAFFLE -200 (2 per Flueway) 8
7
WASH-5/16 FLAT STL ZP HW-008.01 4
8
NUT-1/4-20 HEX-STL ZP HW-003.02 2

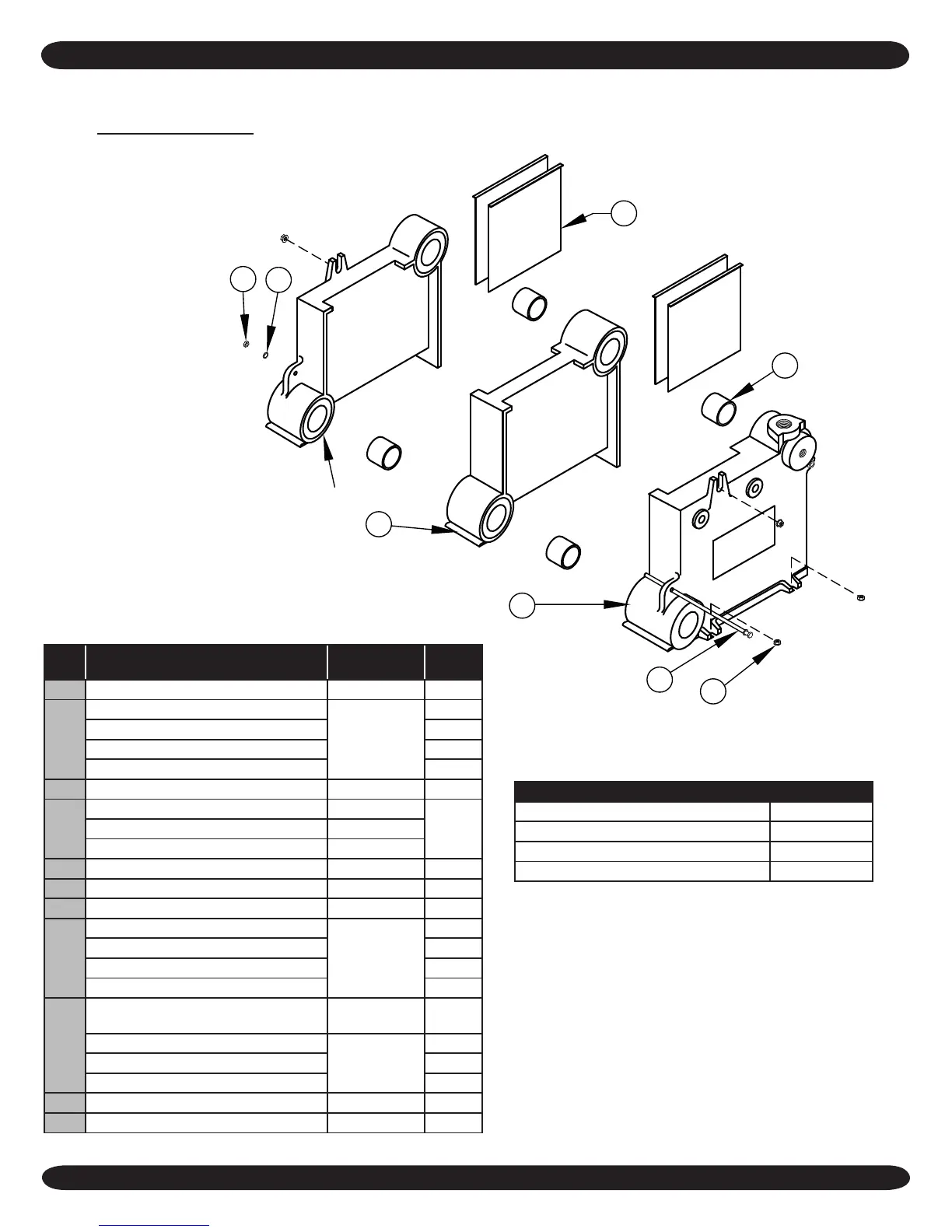

HEAT EXCHANGER
1
2
3
5
4
7
8
6
9
COMPLETE HEAT EXCHANGER ASSEMBLY
HEAT EXCHANGER 3 SECTION -100 100-2-7.01
HEAT EXCHANGER 4 SECTION -125 &150 100-2-7.02
HEAT EXCHANGER 5 SECTION -200 100-2-7.03
HEAT EXCHANGER 2 SECTION -50 100-2-7.06
REPLACEMENT PARTS
