5

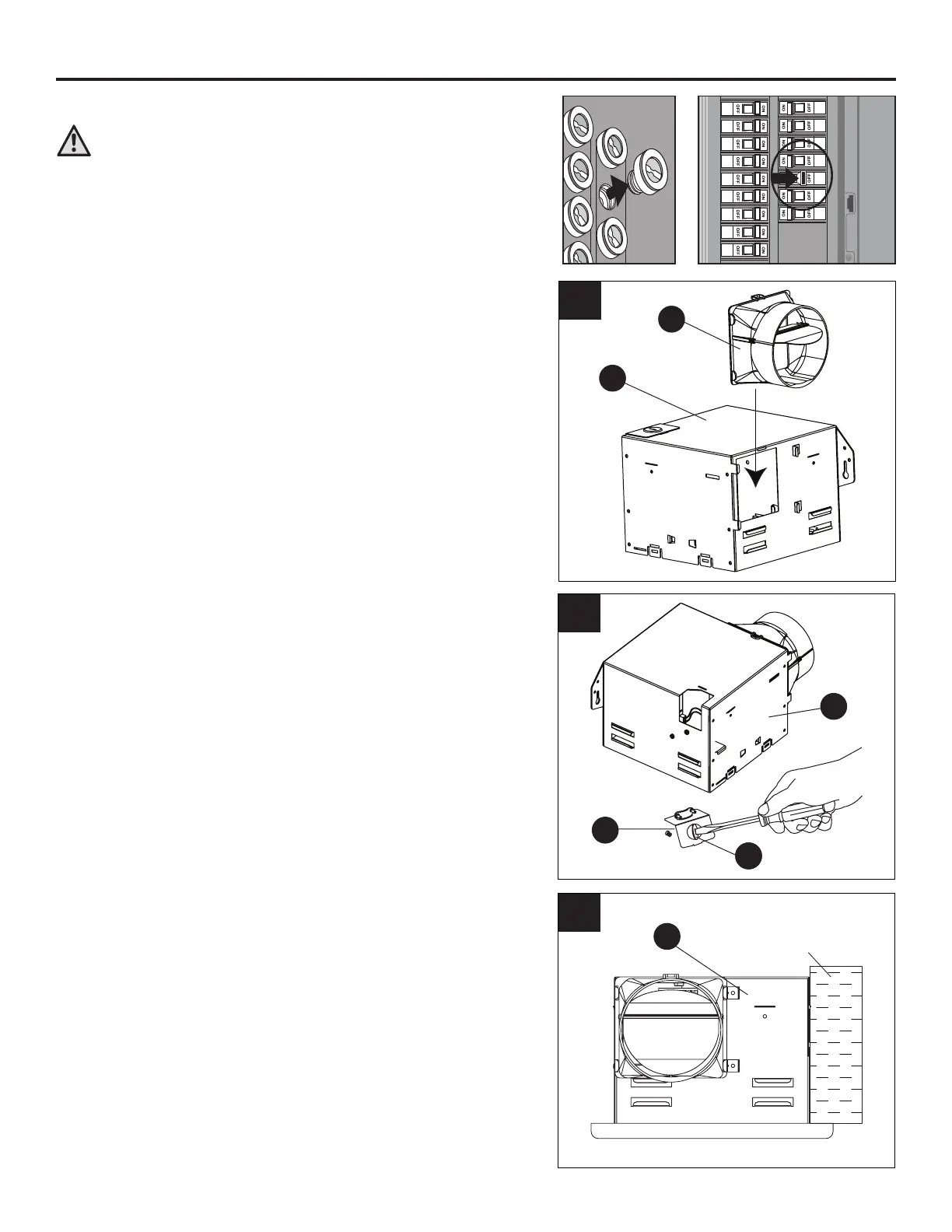

NEW CONSTRUCTION INSTALLATION INSTRUCTIONS
BEFORE INSTALLATION
WARNING: RISK OF ELECTRIC SHOCK! Ensure the
electricity to the wires you are working on is shut off.
Either remove the fuse or turn off the circuit breaker
before removing the existing bath fan or installing the
new one.
1. Attach the duct connector (C) to the fan housing (A).
A
C
1
2. Remove the wiring box cover (2.1) from the fan
housing (A). Remove the wiring knockout (2.2) from
the wiring box cover (2.1) with a athead screwdriver.
2.1
7.12.2
A
2
3. Place the fan housing (A) next to a ceiling joist. The
fan housing (A) should be level and perpendicular to
the joist. Allow for thickness of ceiling board used in
your application.
Position the fan housing (A) so the bottom edge of
the fan housing (A) is ush with the ceiling board. Do
not ush mount the fan housing (A) to the bottom of
the joist.
Ceiling joist
A
3
To Next Page
