10
1 in. union
To pressure tank
4
1 in. male PVC adapter
3
Pressure Gauge or
Pipe Plug with Bushing
2

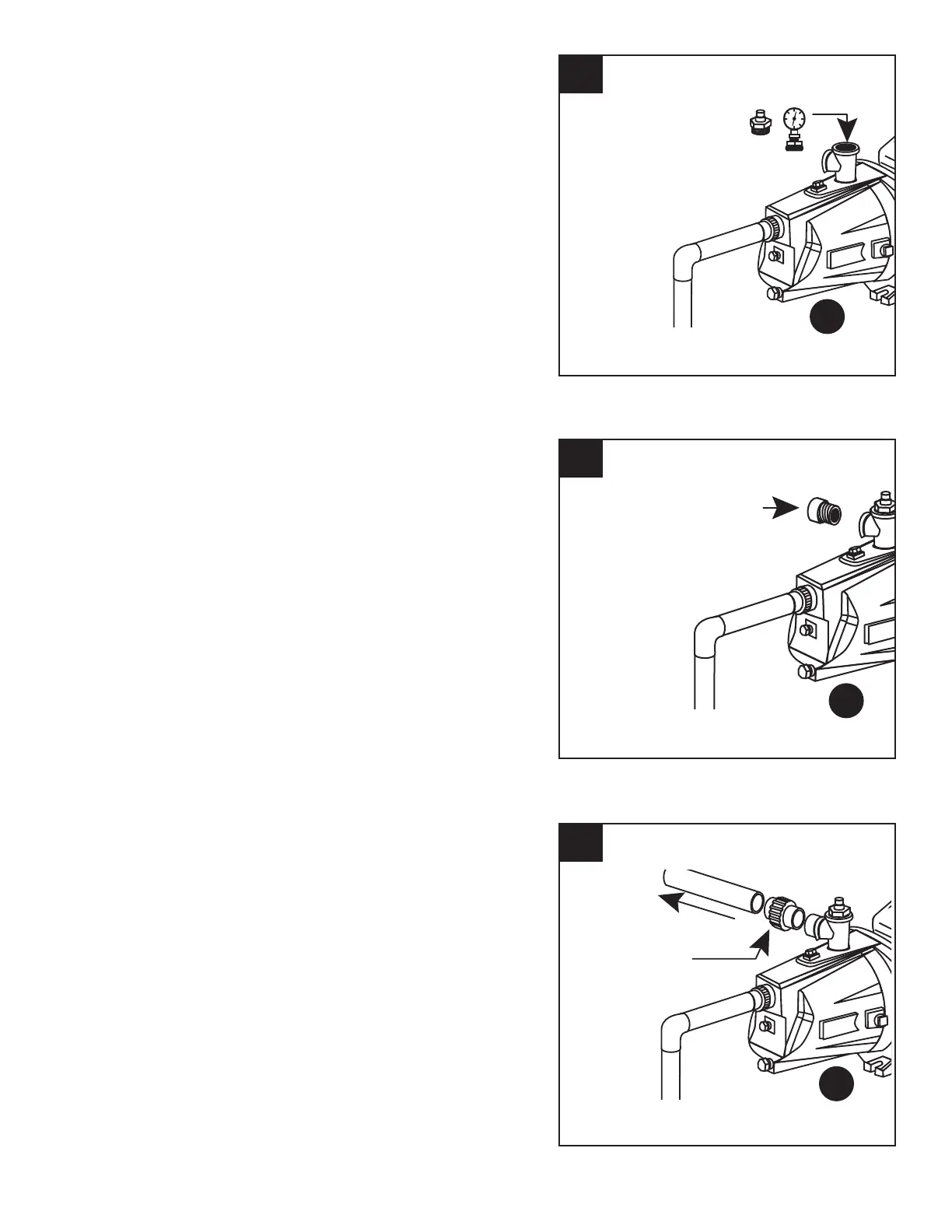

3. Wrap thread tape around the threads of a 1 in.
male PVC adapter (not included) and thread
the adapter into the discharge tee.
2. Install a 1 in. MPT x 1/4 in. FPT galvanized
bushing and (optional) pressure gauge (both
not included), or a pipe plug (not included). Do
not tighten, as you will prime pump (A) later at
this location.
4. Continue with 1 in. ttings and pipe to
the pressure tank. An optional 1 in. union
(not included) is recommended for easy
connection and disconnection.
